SICK Lector61x User Manual

3.5 Display and operating elements
Overview
Ready
5070120200300
Light
Test
Aiming
Focus
U-Def
L/A Eth
Tuning
Result
3
4
2
1

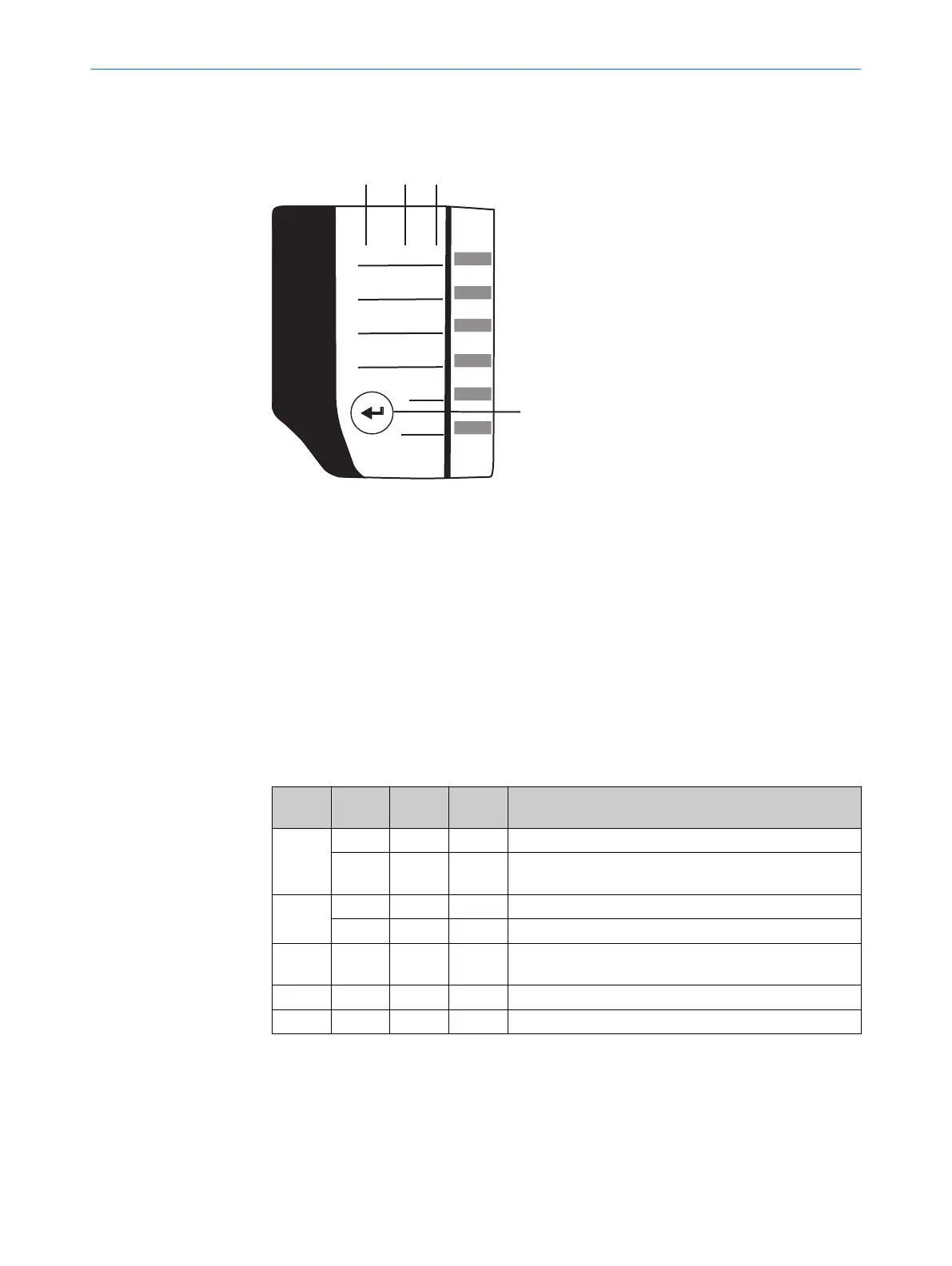

Figure 4: Status LEDs (3 display levels) and function button on the side of the housing
1
Distance display (focus position and working distance) in configuration mode
2
Product status in read mode
3
Product function
4
Function button
Distance displays
•
Product type V2D61xx-xMxxxx: The distance display supports adjustment of the
focus position with the focus adjustment tool. The LEDs indicate the working
distance and the set focus position.
•
Product type V2D61xx-xLxxxx: Working distance and set focus position are dis‐
played.
Product status
Display LED
(green)
LED
(red)
LED
(yellow)
Status
Ready
O o
- The product is ready for operation.
o O
- The product is not ready for use (hardware or software
error).
Result
O o
- The read is successful.
o O
- The read is not unsuccessful.
Light
O
- - Read mode: illumination on, internal reading interval
open
U-Def - -
O
Data output via the host interface
L/A Eth
Ö
- - Data traffic via the Ethernet interface
O = lights up; Ö = flashes; o = does not light up
PROFINET operation (single port)
The Ready status LED signals the product status in the PROFINET network.
PRODUCT DESCRIPTION 3
8024830/1MBT/2024-05-22 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector61x
15
Subject to change without notice
