NOTE
Deactivated in Live mode
•
Digital inputs and outputs
•
Data output via the host interface
2. Align the product in the desired depth of field range with a medium-height object
with a test code.
3. Click the Camera & Illumination configuration bar. Use the Shutter timer and Brightness
sliders to adjust the image brightness so that the code is easy to see.
4. Only available in Extended mode: activate the sharpness diagnostic bar. To do this,
go to the Camera & Illumination area and click the Display sharpness checkbox.
7.2.2 Continuing the configuration
1. Make additional settings (e.g. codes, triggers, data processing, data interface).
2. In the Online Image window, click the Operation button.
3. Test the settings during operational use.
7.2.3 Complete the configuration
1.
To permanently save the parameter set in the product: Click the button.
2.
To permanently save the parameter set on the PC: Click the button.
7.3 Configuration with operating buttons
The function buttons and the LEDs with their third display level can be used to manually
configure the product.
NOTE
The Tuning product function is not supported for pharmacodes.
1.
To start Live mode, press the function button (p) for 3seconds.
Ready
5070120200300
Light
Test
Aiming
Focus
U-Def
L/A Eth
Tuning
Result
Ready
5070120200300
Light
Test
Aiming
Focus
U-Def
L/A Eth
Tuning
Result

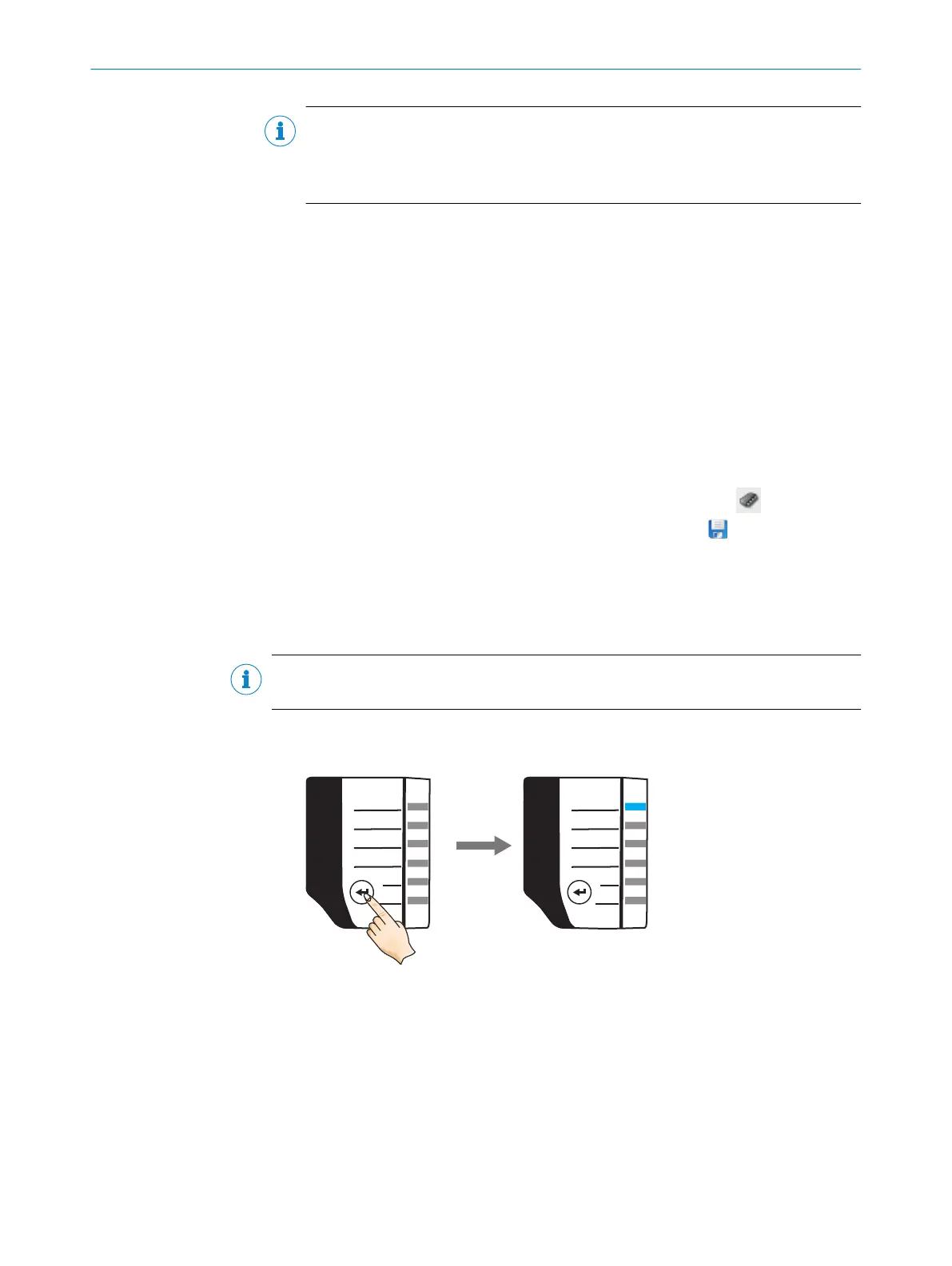

Press function key 3 seconds 1
1 Press the function button (p) for 3seconds.
✓
The product exits the current read mode and switches into button operation mode.
The product now ignores all further external read cycles. The product no longer
outputs any read results via the data interface.
✓
The product runs through all possible functions without executing them and then
starts again from the beginning. The LEDs light up one after the other for 1.5sec‐
onds for each function in the third display level (functions: Test, Aiming, Focus,
Tuning). The product cyclically repeats the process.
2. To execute a function while the corresponding indication LED is lit, briefly press the
function button (p) once.
COMMISSIONING
7
8024830/1MBT/2024-05-22 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector61x
43
Subject to change without notice
