Annex

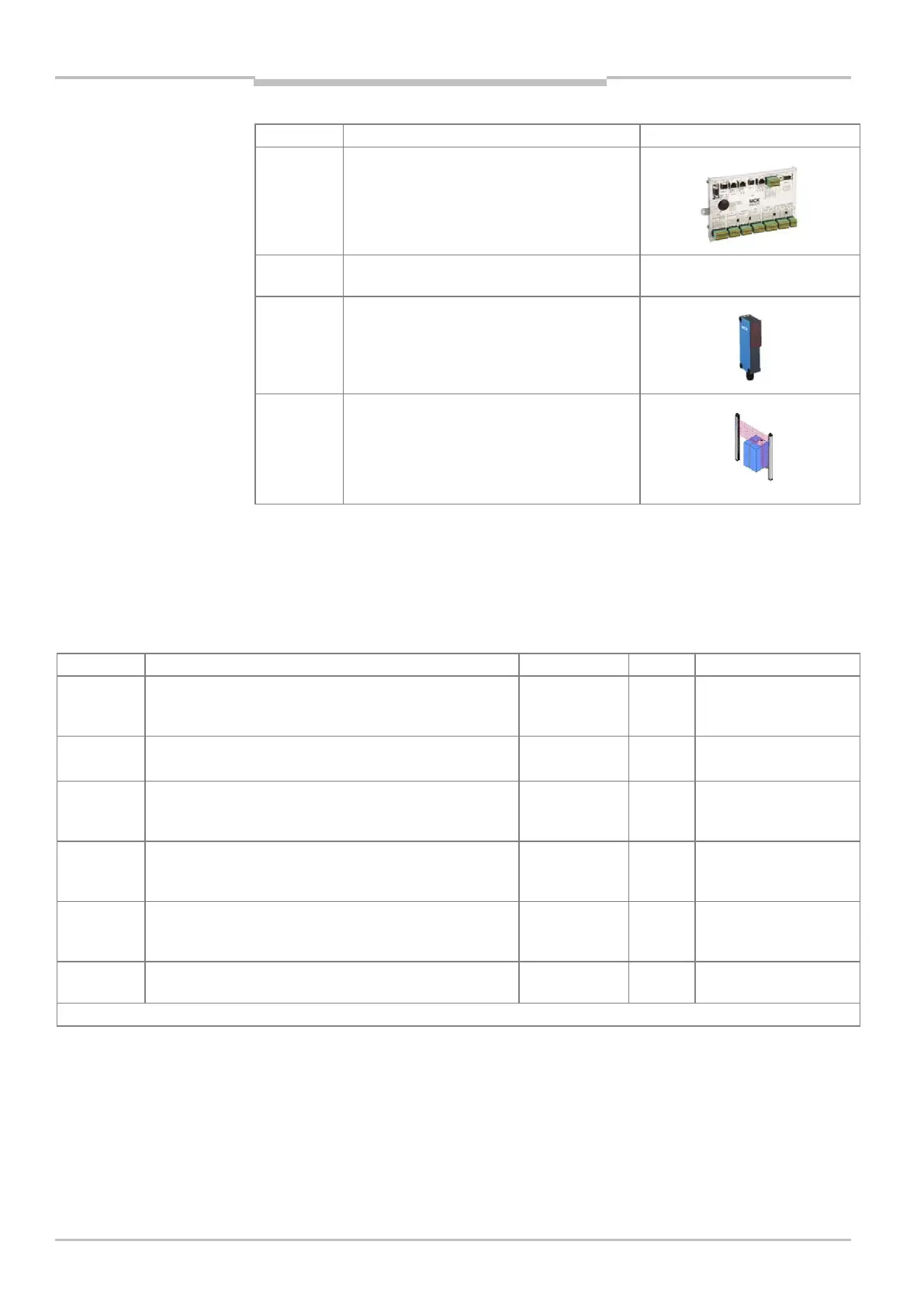

Part no. Description View
1040571 MSC800-0000 (logic unit)
2039442 1 x DVD “Manuals & Software Identification &
Measuring” with software and documentation
2034693 1 x read cycle sensor WL18-3 (photoelectric
sensor) with connecting cable and mounting
set
2041013 MLG light grid (incl. connecting cable and male
connector)
Tab. 54 Ordering information: modular system controller MSC800 (continued)
For precise type designation of the MSC800, see the type label on the device.
10.3.2 Accessories: pre-wired cables for CAN SENSOR Network
Part no. Description
1)
Wires Length Connection
6021166 CAN data cable, Ø 6.8 mm, shielded, twisted pair,
with 5-pin M12 female connector and open end
(wire ferrules), IP 65, PVC-free
2 x 0.32 mm
2
2 x 0.25 mm
2
5 m First ID sensor on
MSC800 (open end)
6021175 As no. 6021166, but longer 2 x 0.32 mm
2
2 x 0.25 mm
2
10 m First ID sensor on
MSC800 (open end)
6021164 CAN data cable, shielded, twisted pair, with 5-pin
M12 female connector and 5-pin M12 male connector,
IP 65, PVC-free
1 m ID sensor to
ID sensor
6021165 CAN data cable, shielded, twisted pair, with 5-pin
M12 female connector and 5-pin M12 male connector,
IP 65, PVC-free
3 m ID sensor to
ID sensor
6021168 CAN data cable, shielded, twisted pair, with 5-pin
M12 female connector and 5-pin M12 male connector,
IP 65, PVC-free
5 m ID sensor to
ID sensor
6021167 CAN termination resistor, shielded, 5-pin
M12 male connector, IP 65
– – Bus closure on the last
ID sensor
1) Other cables on request.
Tab. 55 Available accessories: pre-wired cables for CAN SENSOR Network
