3.1.5 MSC800-3600 device view

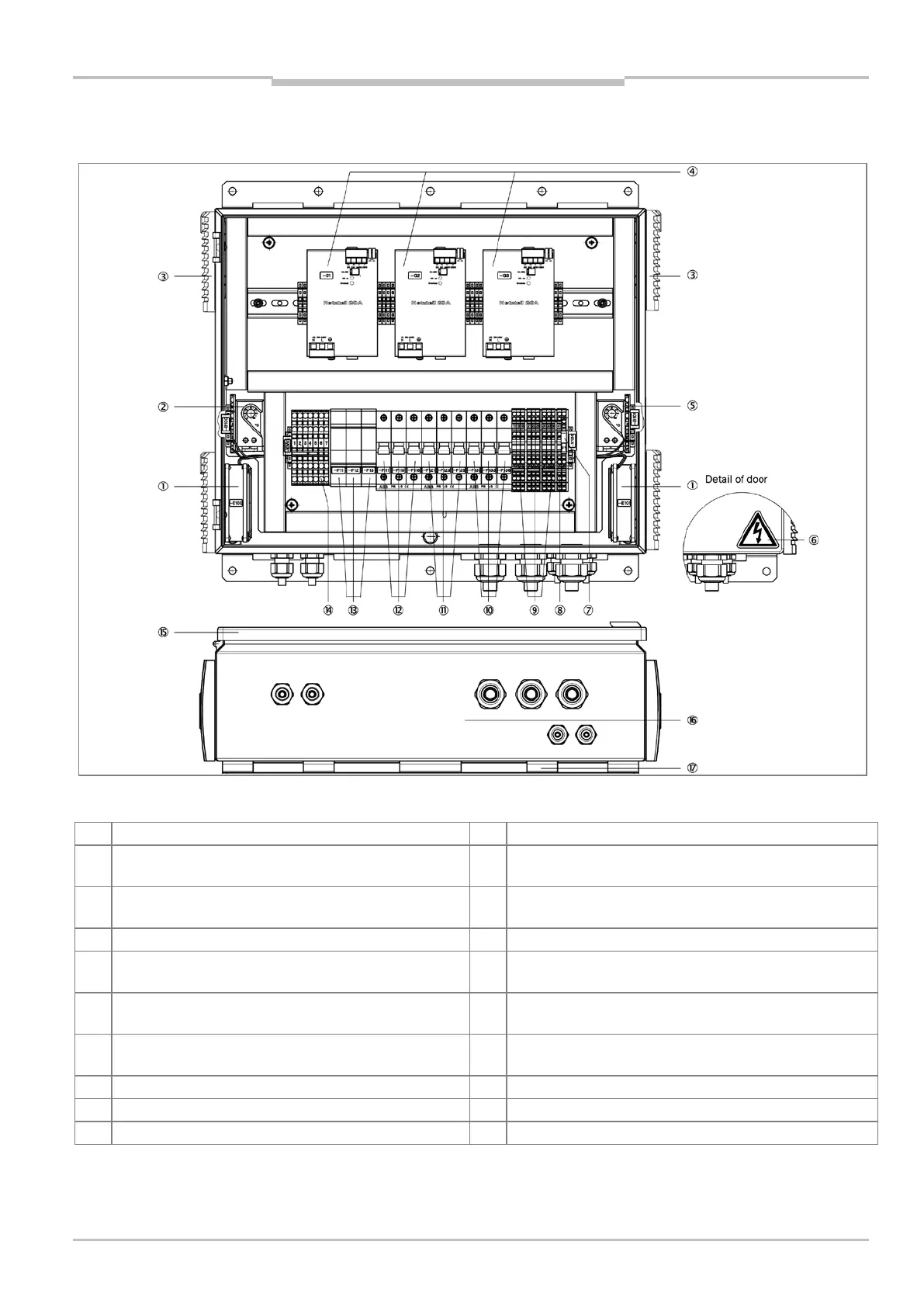

Fig. 6: MSC800-3600 device view (internal view with open door and view from below)
No. Power consumption No. Power consumption
1 Air inlet opening for cooling (with fan and filter mat), 2 x 9 Terminal sets for supply voltage OUT 3 to 1 (DC 24 V, 3 x
max. 20 A)
2 Thermal circuit breaker with N/C contact for excess
temperature signaling
10 Automatic circuit breakers (supply voltage OUT 3)
3 Air outlet for cooling (with filter mat), 2 x 11 Automated circuit breakers (supply voltage OUT 2)
4 Power supply unit module 20 A for supply voltage
DC 24 V, 3 x
12 Automated circuit breakers (supply voltage OUT 1)
5 Thermal circuit breaker with N/O contact for switching
the fans on/off
13 Circuit breaker for power supply unit modules
6 “Hazardous electrical voltage” warning symbol 14 Terminals for mains voltage IN (AC 100 ... 264 V /
50 ... 60 Hz)
7 Fuse for both fans 15 Cable entries (M screw connections)
8 Terminals for N/C contact (thermal circuit breaker) 16 Door
17
Perforated sheet for mounting (2 x)
