Chapter 5
MSC800
8011540/14B8/2019-06-06 Operating instructions | SICK 45
Subject to change without notice
Electrical installation
5.3 Electrical connections
NOTE
Radio interference may occur when used in residential areas
The MSC800 must be used exclusively in industrial environments.
5.3.1 Terminals for mains voltage IN and supply voltage OUT
MSC800-1100

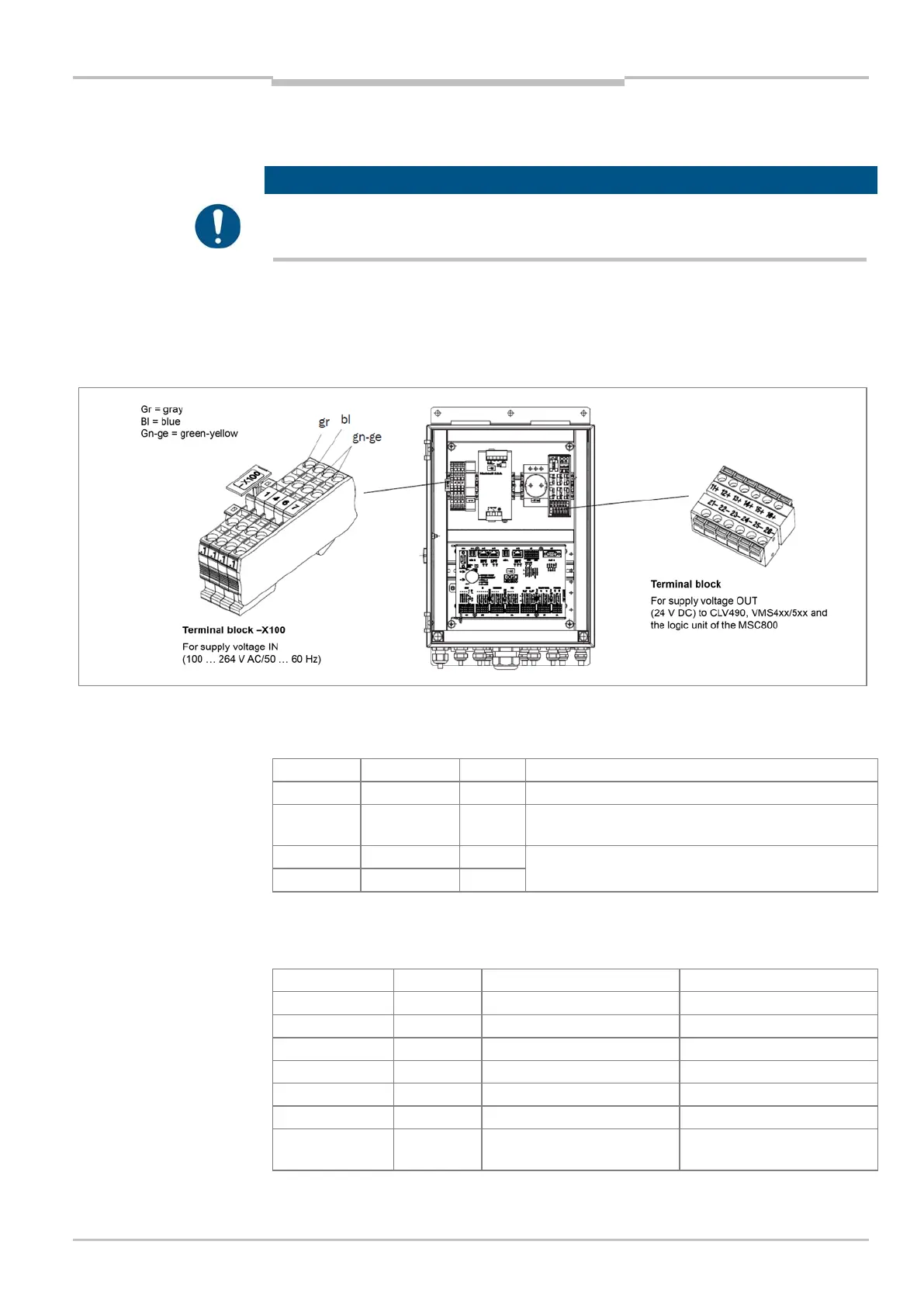

Fig. 17: Terminals on the MSC800-1100 for mains voltage IN and supply voltage OUT
Connections for mains voltage IN on the MSC800-1100
Terminal
Color
Signal
Function
-X100/1.1
Gray
L
Mains voltage AC 100 ... 264 V / 50 ... 60 Hz (phase)
-X100/1.4 Blue N Mains voltage AC 100 ... 264 V / 50 ... 60 Hz (neutral
conductor)
-X100/1.6 Green-yellow PE Protective conductor
-X100/1.7
Green-yellow
PE
Tab. 11: MSC800-1100: -X100 terminal block pin assignment for mains voltage IN
Connections for supply voltage OUT
Terminal Signal Function Protected by fuse
11+ DC +24 V Supply voltage OUT F1 (4 A, slow-acting)
12+
DC +24 V
Supply voltage OUT
F2 (4 A, slow-acting)
13+
DC +24 V
Supply voltage OUT
F3 (4 A, slow-acting)
14+ DC +24 V Supply voltage OUT F4 (4 A, slow-acting)
15+ DC +24 V Supply voltage OUT F5 (4 A, slow-acting)
16+
DC +24 V
Supply voltage OUT
F6 (2 A, slow-acting)
21–/22–/23–/
24–/25–/26–
GND Ground
Tab. 12 MSC800-1100: assignment of the 12-pin terminal block for
supply voltage OUT on CLV490, VMS4xx/5xx, and logic unit of the MSC800
