Electrical installation
MSC800-2100

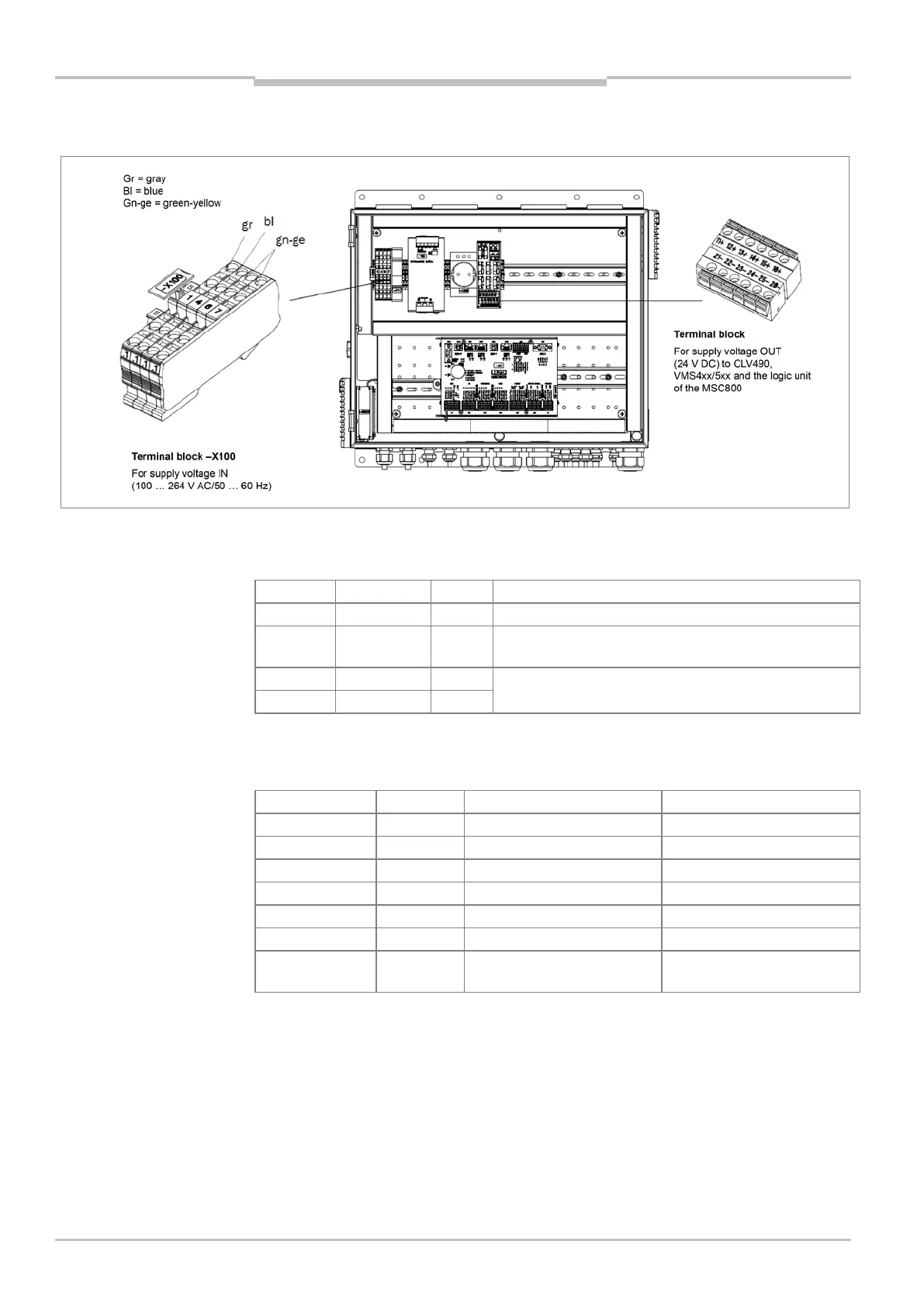

Fig. 18: Terminals on the MSC800-2100 for mains voltage IN and supply voltage OUT
Connections for mains voltage IN on the MSC800-2100
Terminal Color Signal Function
-X100/1.1
Gray
L
Mains voltage AC 100 ... 264 V / 50 ... 60 Hz (phase)
-X100/1.4 Blue N Mains voltage AC 100 ... 264 V / 50 ... 60 Hz (neutral
conductor)
-X100/1.6 Green-yellow PE Protective conductor
-X100/1.7
Green-yellow
PE
Tab. 13: MSC800-2100: -X100 terminal block pin assignment for mains voltage IN
Connections for supply voltage OUT
Terminal Signal Function Protected by fuse
11+ DC +24 V Supply voltage OUT F1 (4 A, slow-acting)
12+ DC +24 V Supply voltage OUT F2 (4 A, slow-acting)
13+
DC +24 V
Supply voltage OUT
F3 (4 A, slow-acting)
14+ DC +24 V Supply voltage OUT F4 (4 A, slow-acting)
15+ DC +24 V Supply voltage OUT F5 (4 A, slow-acting)
16+
DC +24 V
Supply voltage OUT
F6 (2 A, slow-acting)
21–/22–/23–/
24–/25–/26–
GND Ground
Tab. 14 MSC800-2100: assignment of the 12-pin terminal block for
supply voltage OUT on CLV490, VMS4xx/5xx, and logic unit of the MSC800
