Chapter 4
MSC800
38 Operating instructions | SICK 8011540/14B8/2019-06-06
Subject to change without notice
Mounting
4.2.3 Selecting the mounting location
Dimensional drawing
The general requirements for the mounting location are described in chapter 3.2.1
Mounting requirements on page 26. The project-specific information (position of the
components, distances, angle, etc.) are summarized in a dimensional drawing and
must be complied with when mounting the components.

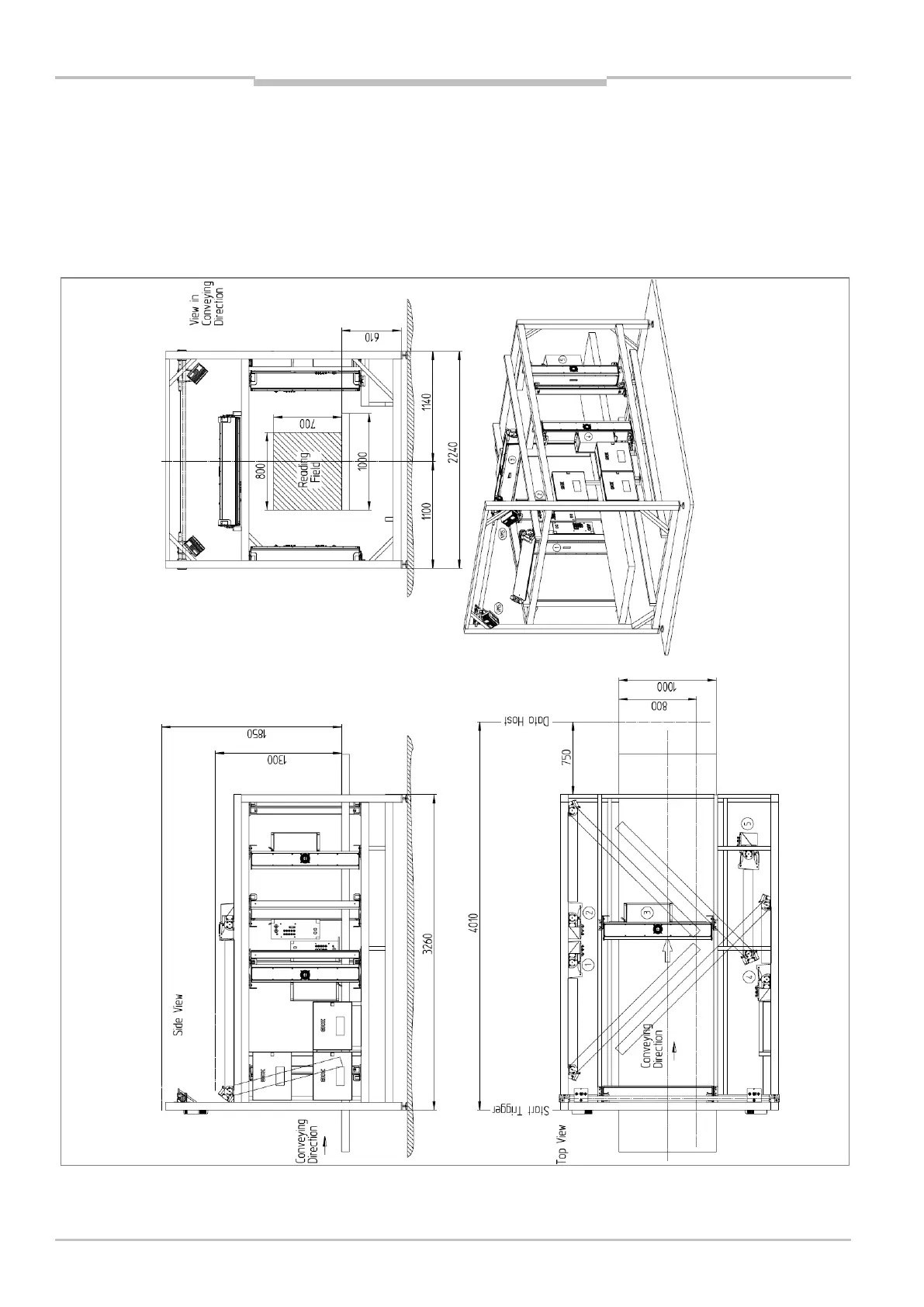

Fig. 12: Example of a project-specific dimensional drawing for mounting
