SICK MSC800 User Manual

Chapter 5
MSC800
58 Operating instructions | SICK 8011540/14B8/2019-06-06
Subject to change without notice
Electrical installation

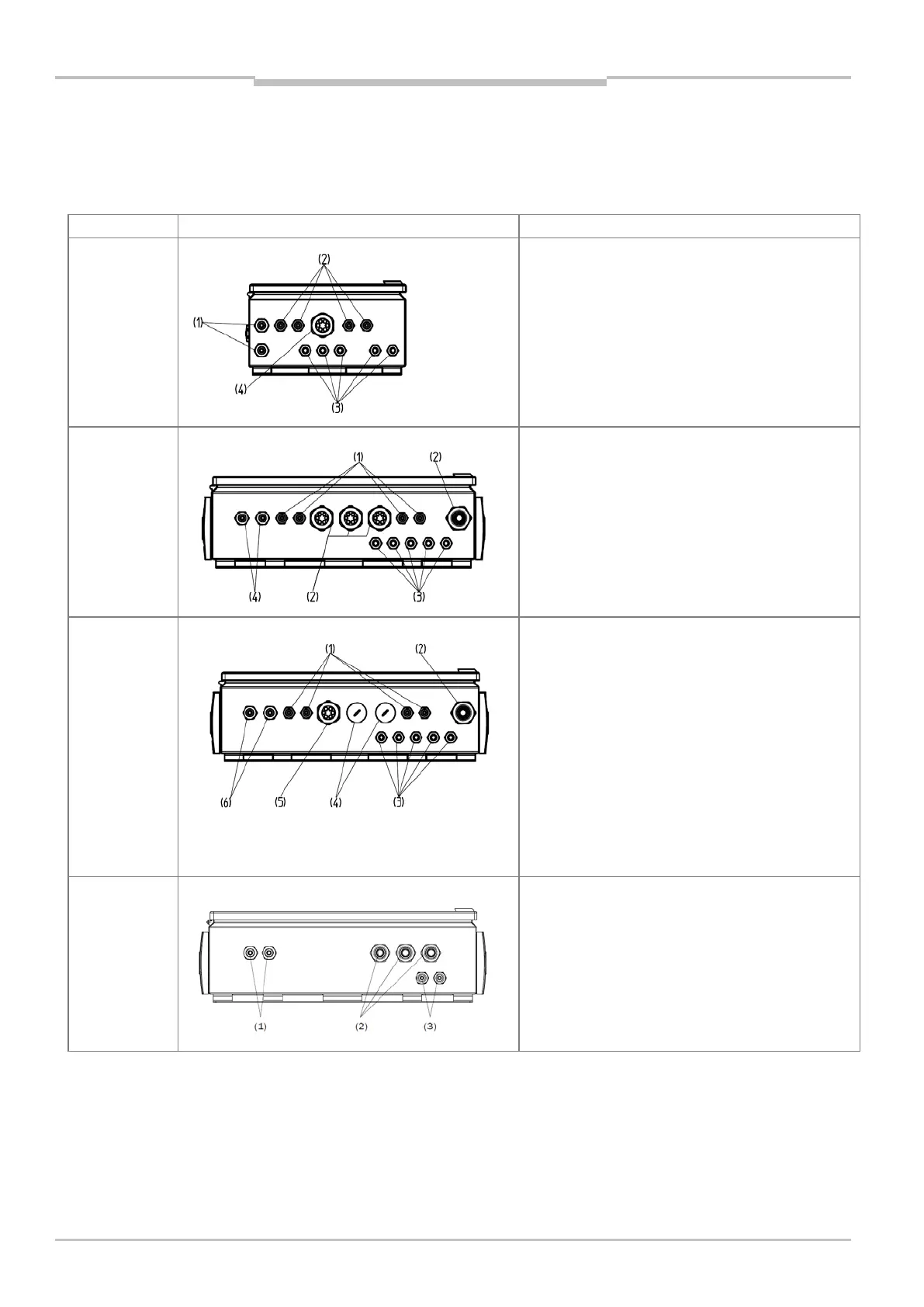

5.4.3 Cable entries
The following cable entries are available on the bottom of the housing:
MSC800 type View Cable entry
MSC800-1100
(1): 2 x M screw fitting, plastic, M20 x 1.5
(permitted cable diameter: 6 ... 12 mm)
(2): 4 x M screw fitting, metal, M16 x 1.5
(permitted cable diameter: 5.5 ... 10 mm) (3): 5 x
M screw fitting, metal, M16 x 1.5
(permitted cable diameter: 3 ... 7 mm)
(4): 1 x M screw fitting, plastic, M32 x 1.5
(permitted cable diameter: 6 x 5.5 ... 7 mm)
MSC800-2100
(1): 4 x M screw fittings, metal, M16 x 1.5
(permitted cable diameter: 5.5 …10 mm)
(2): 4 x M screw fitting, plastic, M32 x 1.5
(permitted cable diameter: 6 x 5.5 ... 7 mm)
(3): 5 x M screw fittings, metal, M16 x 1.5
(permitted cable diameters: 3 ... 7 mm)
(4): 2 x M screw fitting, plastic, M20 x 1.5
(permitted cable diameter: 6 ... 12 mm)
MSC800-2300
(1): 4 x M screw fittings, metal, M16 x 1.5
(permitted cable diameter: 5.5 …10 mm)
(2): 1 x M screw fitting, plastic, M25 x 1.5
(permitted cable diameters: 13…18 mm)
(3): 5 x M screw fittings, metal, M16 x 1.5
(permitted cable diameters: 3 ... 7 mm)
(4): 2 x M-locking screw, plastic, M32 x 1.5
(5): 1 x M screw fitting, plastic, M32 x 1.5
(permitted cable diameter: 6 x 5.5 ... 7 mm)
(6): 2 x M screw fitting, plastic, M20 x 1.5
(permitted cable diameter: 6 ... 12 mm)
MSC800-3400
MSC800-3600
(1): 2 x M screw fitting, plastic, M20 x 1.5
(permitted cable diameter: 6 ... 12 mm)
(2): 3 x M screw fitting, metal, M25 x 1.5
(permitted cable diameter: 13 ... 18 mm) (3):
2 x M screw fitting, plastic, M16 x 1.5
(permitted cable diameter: 5 ... 10 mm)
Tab. 31 Cable entries on the MSC800
