3 SYSTEM DESCRIPTION
18
8027311 / V1-0/2022-04|SICK
OPERATING INSTRUCTIONS|TDC-E (Telematic Data Collector)
Subject to change without notice

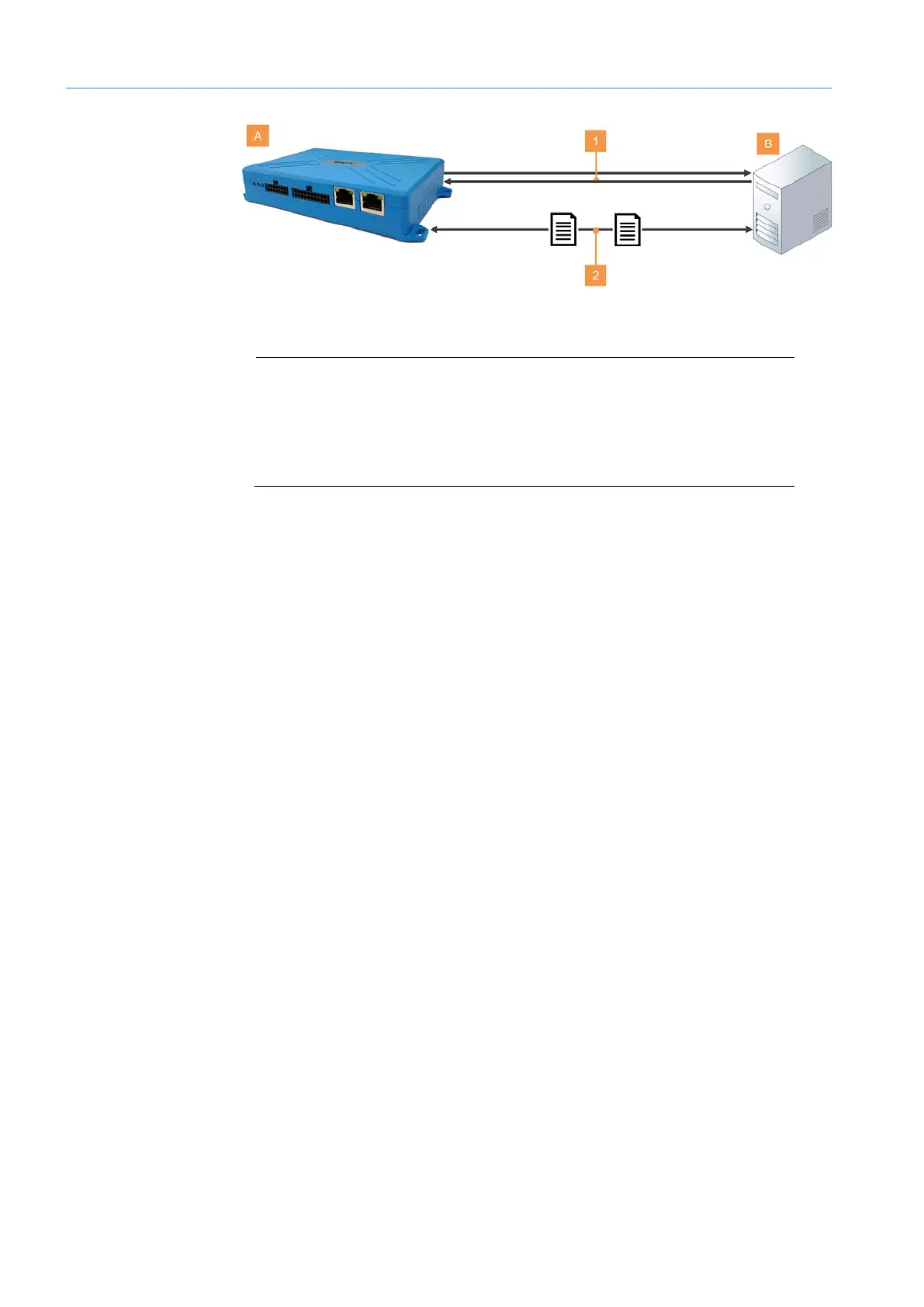

Fig. 8: WebSocket protocol
Legend
A Client
B WebSocket server
1 Initial handshake between client and server
2 Constantly open connection for bidirectional message transmission
• WebSocket is a TCP/IP protocol that provides a constant open connection after an
initial WebSocket handshake between a client and a WebSocket server.
• A WebSocket server is nothing more than an application that monitors a port of a
TCP/IP server that follows a specific protocol.
• The WebSocket server is installed by the customer.
• The WebSocket server can actively use the open connection and retrieve information
from the client without any previous requests.
• The TDC-E has the role of data provider.
WebSocket
