5.3 Connecting the voltage supply

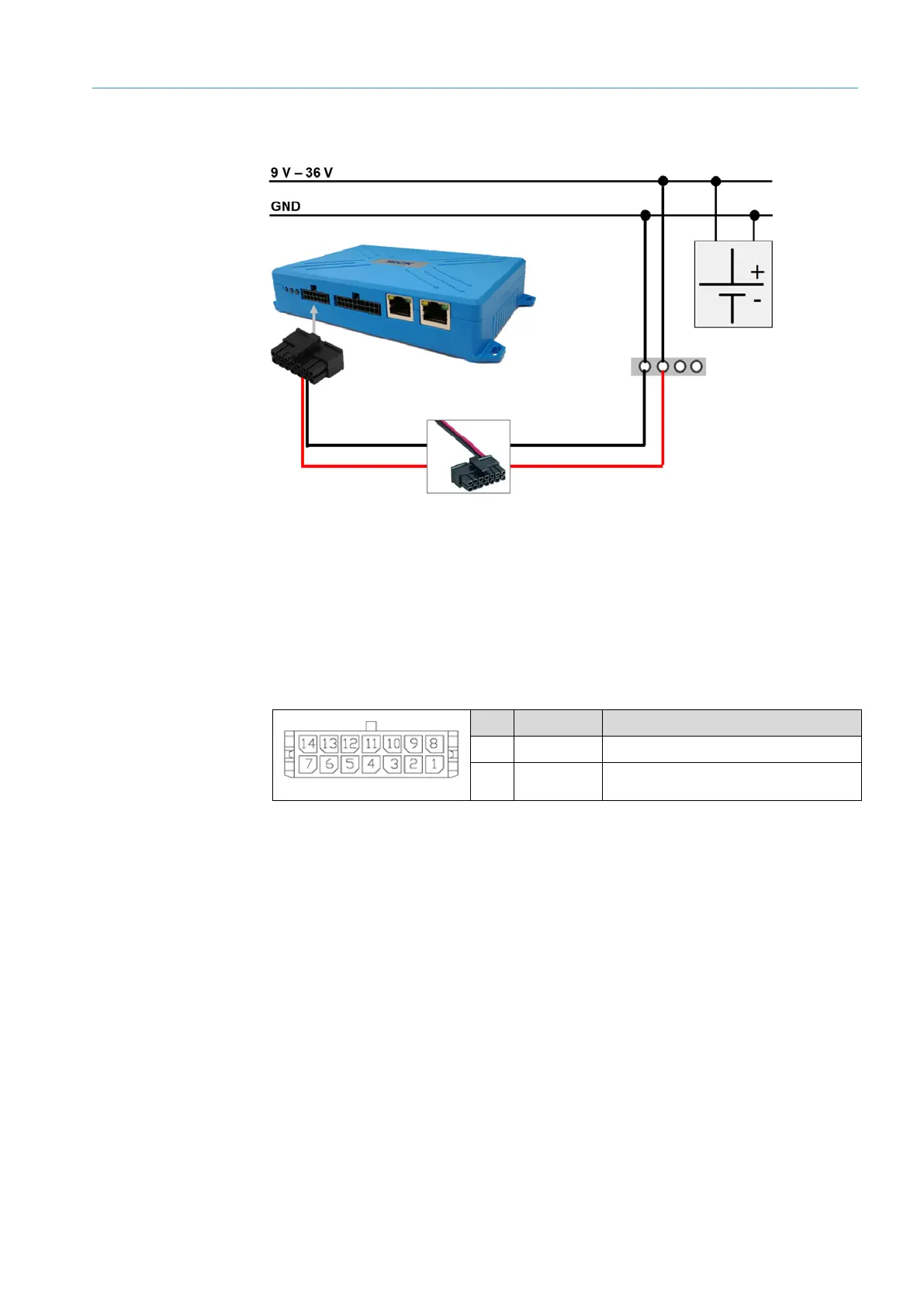

Fig. 20: Connecting the TDC-E to the voltage supply
• The connection must ensure a permanent voltage supply.
• If the TDC-E is installed in a vehicle, we recommend connecting it to the vehicle battery.
▸
Plug the Micro-Fit male connector at the end of the connecting cable into the 14-pin
female connector on the TDC-E.
▸
Connect the TDC-E to the voltage supply via the red and black wires of the connecting
cable.
PIN Wire color TDC-E connection
14 Red VIN (9 V–36 V voltage supply)
7 Black GND for voltage supply
Tab. 4: Connecting the TDC-E to the voltage supply
