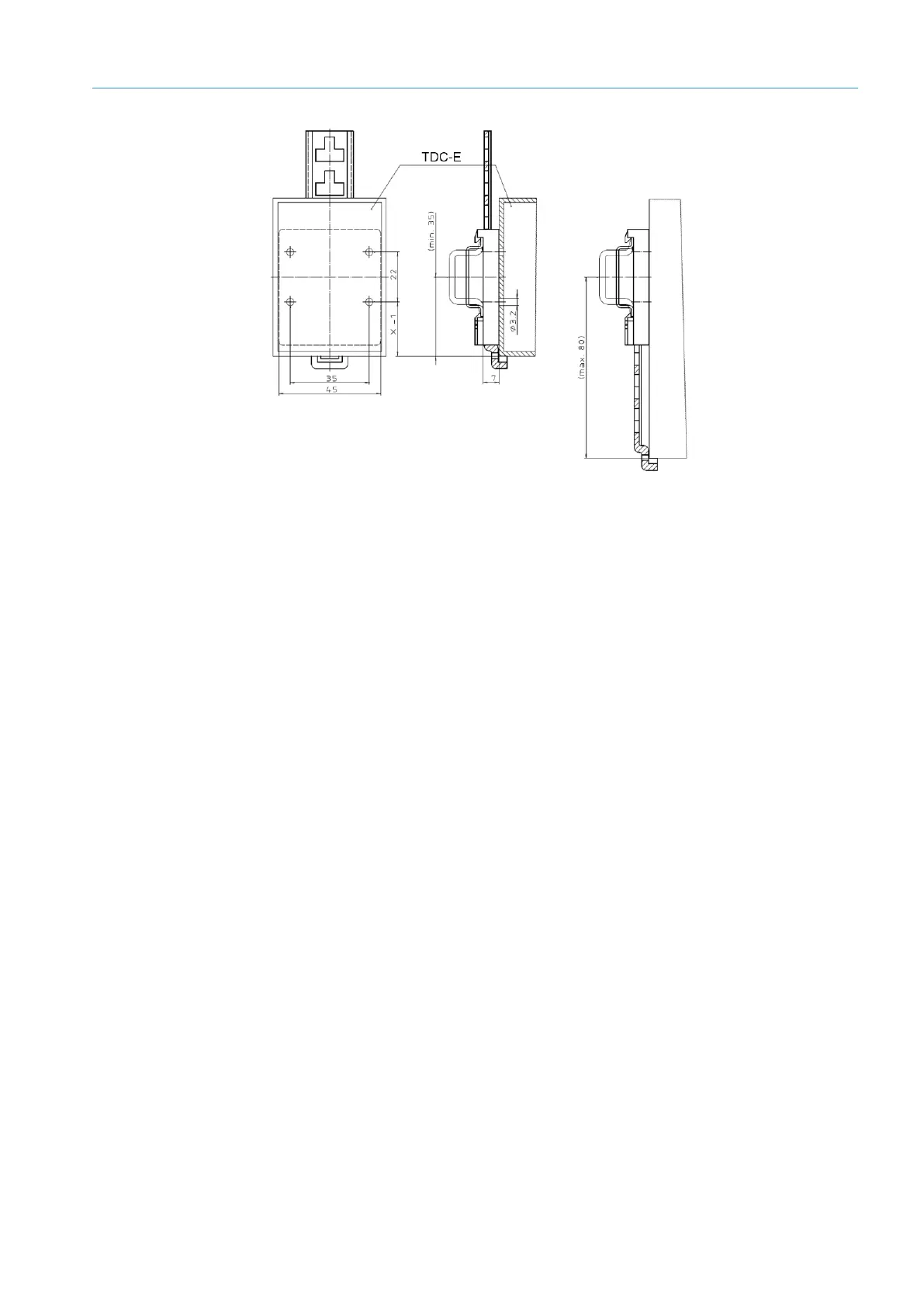

Fig. 16: Mounting on a mounting rail – Mounting the TDC-E on the mounting rail bracket
▸
Place the TDC-E on the bar and use the mounting holes on the mounting rail bracket to
screw it on.
Mounting the TDC-E
on the mounting rail
bracket
