Siemens 6RA7086-6KS22

Function diagrams 05.05
8-30 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions

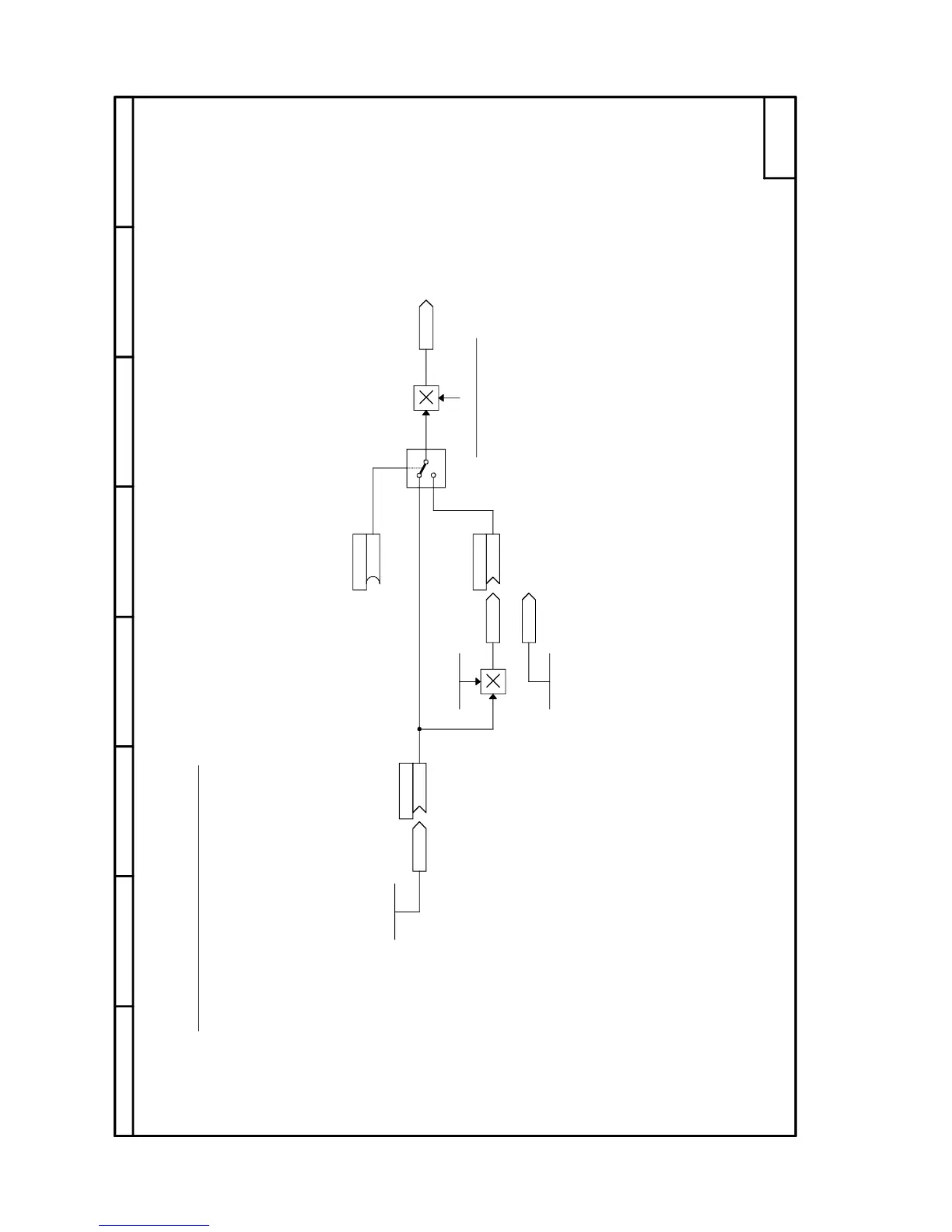

Sheet G150 Starting pulse - speed controller
87564321
- G150 -
1 0
<1>
<1>
<1>
<1>
K0454
U656 (452)
K
K0452
U657.B (0)
B
U655 (451)
K
K0451
K0453
U652.F (50,00%)
U651.F (0,00%)
U653.F (0,00%)
Starting pulse - speed controller
<1> 100% corresponds to 100% of the rated current of the motor (P100)
Rated motor current (P100.F)
Rated converter current (r072.002)
This connector can be used as a setting value for the I component of the speed controller (Sheet G152, P631)
