Siemens 6RA7086-6KS22

05.05 Function diagrams
SIEMENS AG 6RX1700-0AD76 8-113
SIMOREG DC Master Operating Instructions
Sheet Z111 Data exchange with the 2
nd
communications board (CB)
.04
.01 .03
.02
.06 .05
.07
.08
.10
.09
.14
.11 .13
.12
.16 .15
87564321
- Z111 -
<1>
<1>
T0
015
.01 .16
[Z124.4]
K K K K K K K K K K K K K K K K
Bit 0 ... Bit 15
U736 (0)
K8001 K8002
K8003
K8004
K8005
K8006 K8007 K8008
K8009
K8010 K8011 K8012 K8013 K8014 K8015 K8016
B8100 B8200 B8300 B8400 B8500 B8600 B8700 B8800 B8900
B8115 B8215 B8315 B8415 B8515 B8615 B8715 B8815 B8915
1s
B8030 B8031
U722.04 (0 ms)
U722.02 (0 ms)
B8035
U729 (0)
B B
K8020
Parameters for the 2nd CB board

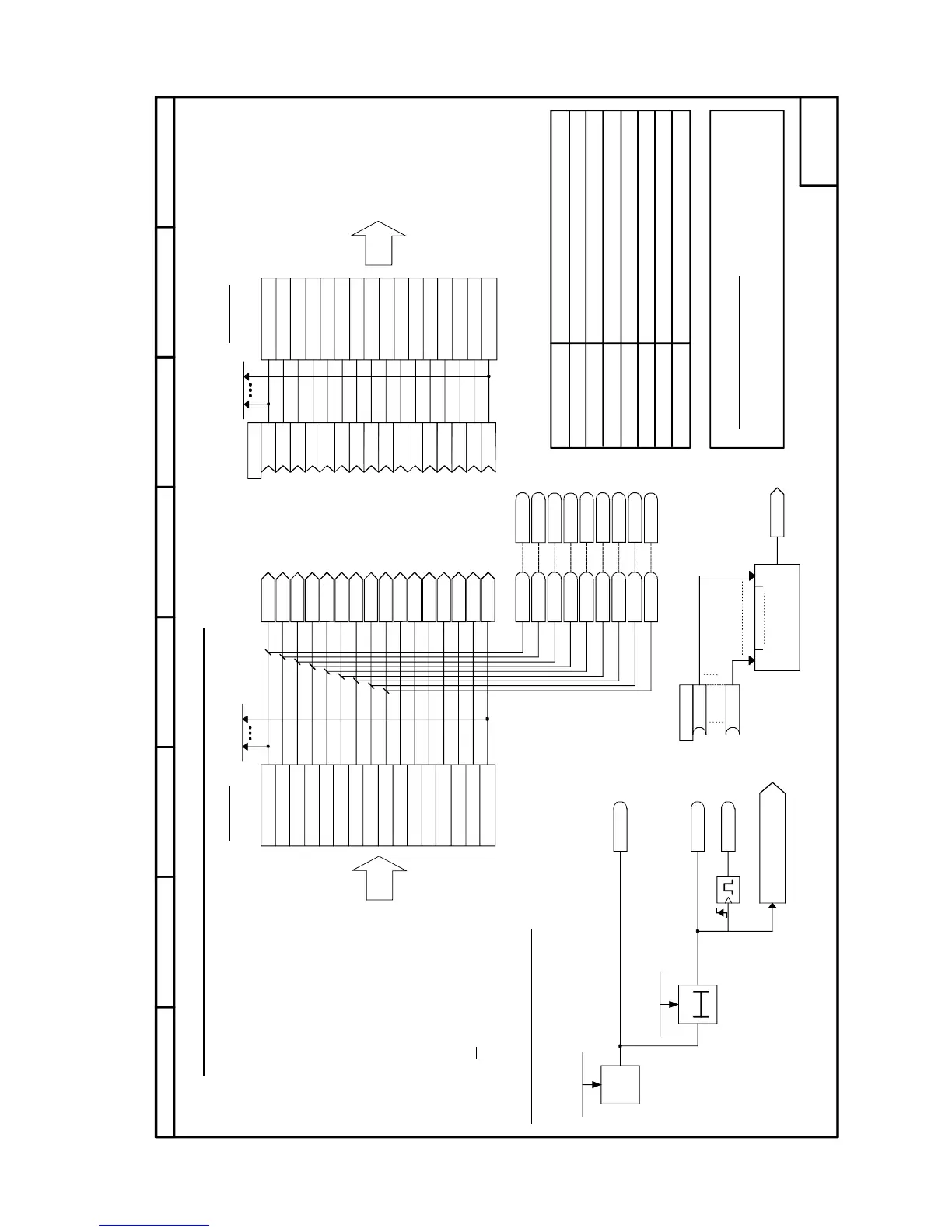

Data exchange with the 2nd communications board (CB)
U710 Index.02 U711-U720 Index.02 n732 Index.33-.64 n738 Index.05-.08 n739 Index.05-.08 P927 U721 Index.06-.10 P918 Index.02
Message monitoring for received process data:
Valid for the following configurations: - 2 CBs (for CB with the higher slot letter)
Bit 10 must be set in word 1 of the receive data to ensure that the process data are accepted as valid data. Control word 1 must therefore be transferred as the first PZD word.
Receive data
Word 1 Word 2 Word 3 Word 4 Word 5 Word 6 Word 7 Word 8 Word 9
Word 10
Transmit data
Word 11
Word 12 Word 13 Word 14 Word 15 Word 16
Word 1
Word 2 Word 3 Word 4 Word 5 Word 6 Word 7 Word 8
Word 9
Word 10
Word 11
Word 12 Word 13 Word 14 Word 15 Word 16
every 16 bits
from supplementary board
to supplementary board
n733.17 to .32
n735.17 to .32
CB parameters 1 to 10 CB or TB diagnosis CB parameter 11 Initialize link to supplementary boards Display parameter job (PKW) from CB Display parameter response (PKW) to CB Bus address Enable parameterization
1 = "Fault F082"
Message
monitoring time
(fault value 10)
Fault message trigger
1 = "Telegram monitoring timeout"
Binector / connector
converter
1 = "Fault delay timeout"
When bit 10 ("control by PLC") = 0, the other bits of word 1, as well as words 2 to 16 are
not written to connectors K8001 to K8016
or to binectors B8100 to 8915. All these connectors and binectors retain their old values.
Fault delay time
For transmission of double-word connectors see Section 7.7.10 See also connector type converter on sheet Z124
