Siemens 6RA7086-6KS22

Function diagrams 05.05
8-126 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions

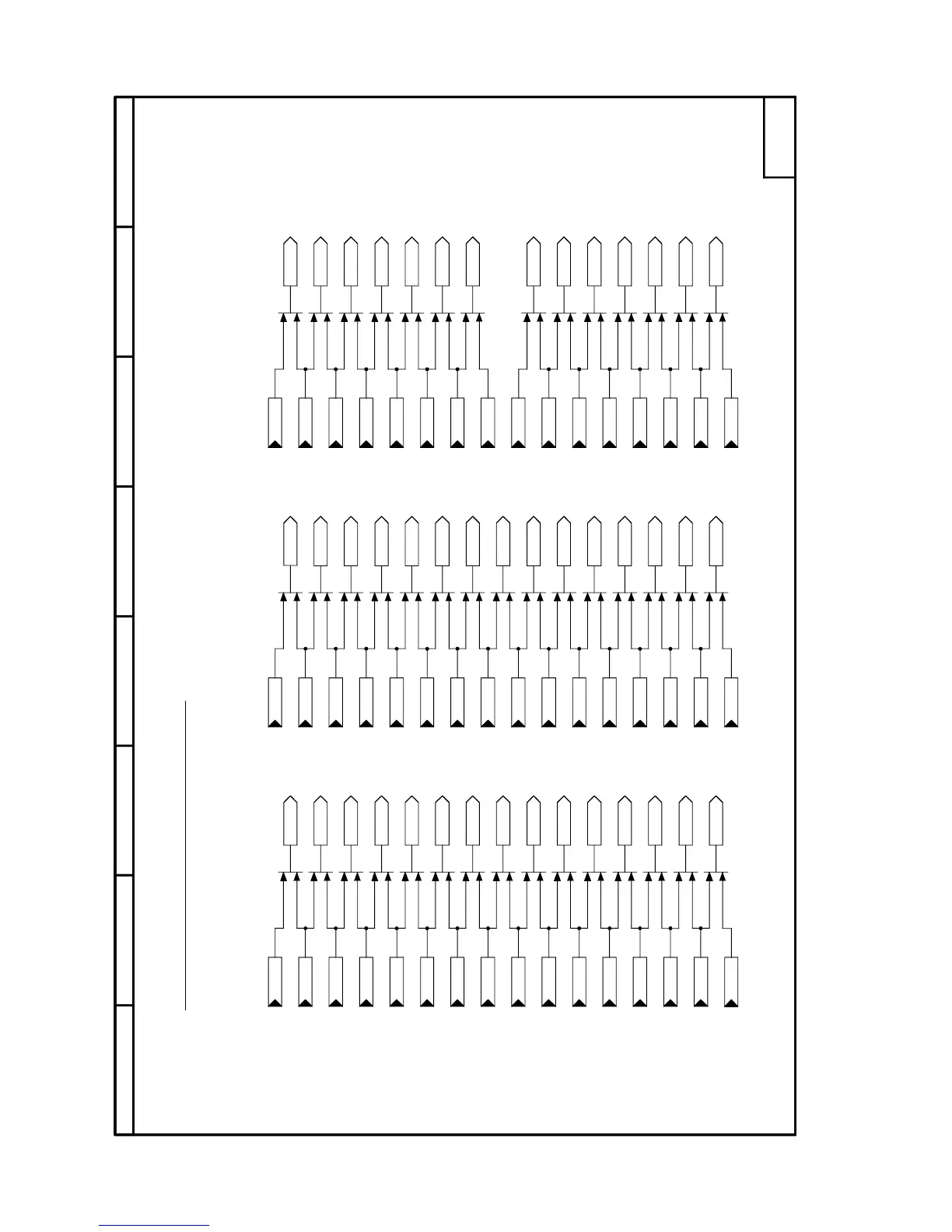

Sheet Z124 Interfaces: connector-type converters
87564321
- Z124 -
LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH
LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW HIGH
LOW HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
[Z110.5] [Z111.5]
[Z122.4] [Z122.3]
KK3032
K3002 K3003
K3004
K3005 K3006
K3007 K3008
K3009
K3010 K3011
K3012
K3013
K3014 K3015
K3016
KK3033 KK3034 KK3035
KK3036 KK3037 KK3038 KK3039
KK3040 KK3041 KK3042 KK3043 KK3044 KK3045
K8002 K8003 K8004
K8005
K8006 K8007 K8008 K8009 K8010 K8011 K8012 K8013
K8014
K8015 K8016
KK7032
K7002 K7003 K7004 K7005 K7006 K7007 K7008
KK7033 KK7034 KK7035 KK7036 KK7037
KK3031
K3001 K8001
KK7031
K7001
KK8032 KK8033 KK8034 KK8035 KK8036 KK8037 KK8038 KK8039
KK8040 KK8041 KK8042 KK8043
KK8044 KK8045
KK8031
KK7132
K7102 K7103 K7104 K7105 K7106 K7107 K7108
KK7133 KK7134 KK7135 KK7136 KK7137
KK7131
K7101
Interfaces: connector-type converters
Technology board / 1st communications board (Z110) 2nd communications board (Z111) SIMOLINK board (Z122)
