Siemens 6RA7086-6KS22

Parameter list 05.05
11-14 SIEMENS AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
PNU Description Value range
[Unit]
Steps
No. indices
Factory
setting
Type
See
Change
(Access /
Status)
r063
(G101)
Board code
Identification code of boards mounted in locations 1 to 3 of electronics box.
CUDx
FD
EG
132

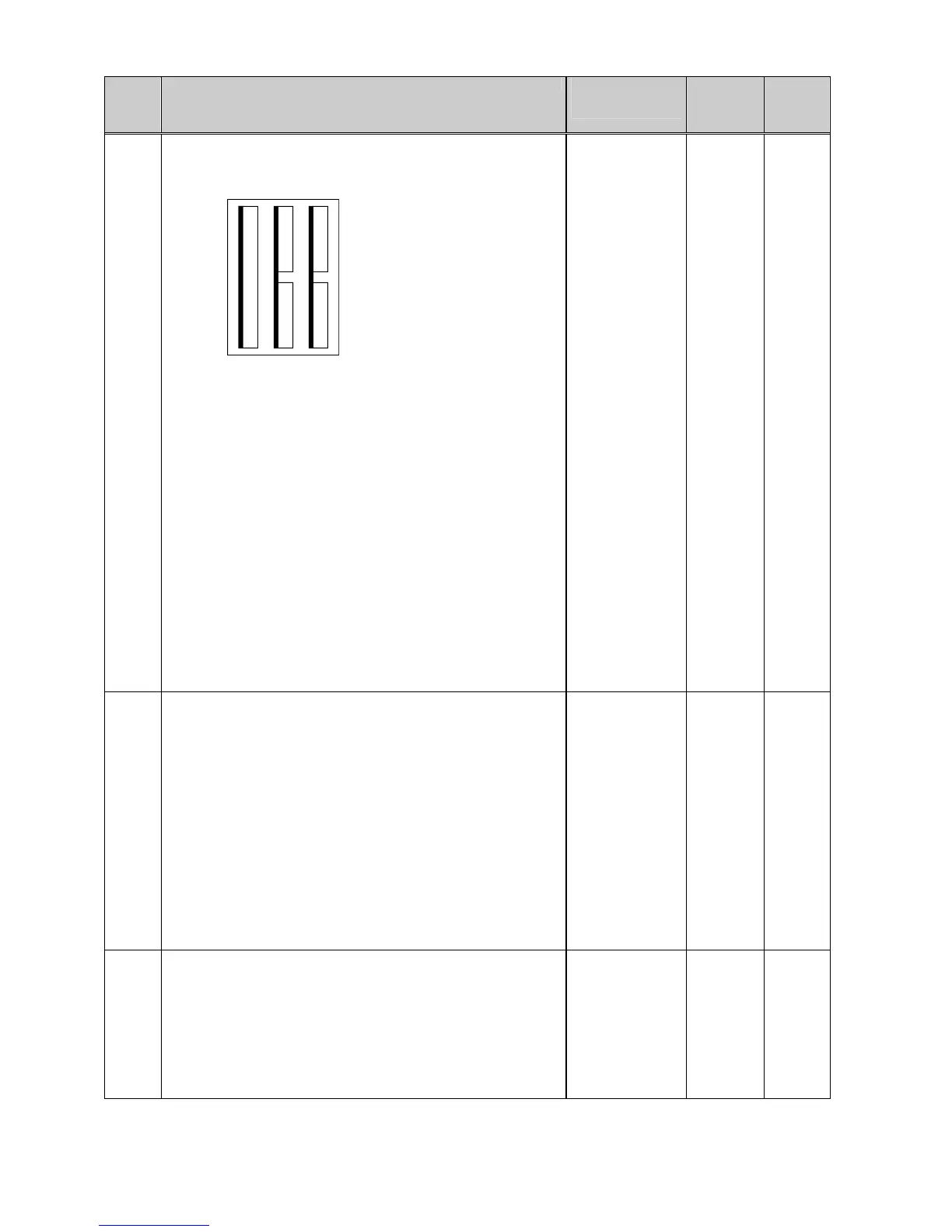

Arrangement of
board locations 1 to 3
and slots D to G in
electronics box
i001: Board in location 1
71: CUD1
72: CUD1 + CUD2
i002: Board in slot D (upper slot of location 2)
111: Pulse encoder board (SBP) [SW 1.8 and later]
131 to 139: Technology board
141 to 149: Communications board
151, 152, 161: Special board (EB1, EB2, SLB)
i003: Board in slot E (lower slot of location 2)
111: Pulse encoder board (SBP) [SW 1.8 and later]
131 to 139: Technology board
141 to 149: Communications board
151, 152, 161: Special board (EB1, EB2, SLB)
i004: Board in slot F (upper slot of location 3)
111: Pulse encoder board (SBP) [SW 1.8 and later]
141 to 149: Communications board
151, 152, 161: Special board (EB1, EB2, SLB)
i005: Board in slot G (lower slot of location 3)
111: Pulse encoder board (SBP) [SW 1.8 and later]
141 to 149: Communications board
151, 152, 161: Special board (EB1, EB2, SLB)
Ind: 5
Type: O2
P052 = 3
r064
(G101)
Board compatibility
Compatibility identifier of boards in locations 1 to 3 of electronics box.
The compatibility identifier is bit-coded. To ensure the compatibility of a
board, it must have a "1" setting at the same bit location of the parameter
value as the CUD (in location 1 / index i001).
Indices:
i001: Compatibility identifier of board in location 1
i002: Compatibility identifier of board in slot D
i003: Compatibility identifier of board in slot E
i004: Compatibility identifier of board in slot F
i005: Compatibility identifier of board in slot G
Example:
Index Value Bit representation Compatible with CUD
i001 253 0000 0000 1111 1101
i002 002 0000 0000 0000 0010 no
i003 001 0000 0000 0000 0001 yes
Ind: 5
Type: O2
P052 = 3
r065
(G101)
Software identifiers
Extended software version identifiers in locations 1, 2, and 3 of the
electronics box
Indices:
i001: Software identifier of the board in location 1
i002: Software identifier of the board in slot D
i003: Software identifier of the board in slot E
i004: Software identifier of the board in slot F
i005: Software identifier of the board in slot G
Ind: 5
Type: O2
P052 = 3
