SIMOREG DC Master Operating Instructions
PNU Description Value range
[Unit]
Steps
No. indices
Factory
setting
Type
See
Change
(Access /
Status)
U007
(2007)
*
Numbers of the user parameters [SW 1.7 and later]
Parameters for entering the numbers of those parameters that are to be
accessible if the key and lock are set differently.
NOTE: Parameters U000 to U999 must be entered as 2000 to 2999
0 to 999
2000 to 2005
2008 to 2999
1
Ind: 100
FS=0
Type: O2
P052 = 3
P051 = 40
on-line
11.53 Processor utilization
n009
(2009)
Processor utilization
This parameter is particularly relevant as regards the selection of function
blocks of technology software in the basic unit (option S00) and the
definition of the time slices in which these function blocks are processed
(see also Section 8, Function Diagram B101 and parameters U950 to
U952).
i001: Current total processor utilization (=K9990)
i002: Extrapolated total processor utilization for line frequency = 65Hz
(=K9991)
i003: Current total processor utilization by programs in
time slice 10 (=K9992)
i004: Current total processor utilization by programs in
time slice 4 (=K9993)
i005: Current total processor utilization by programs in
time slice 2 (=K9994)
i006: Current total processor utilization by programs in
time slice 1 (=K9995)
0.0 to 100.0
[%]
0.1%
Ind: 6
Type: O2
P052 = 3
11.54 Display parameters for technology functions with S00
Only active with optional technology software S00
Connector/binector converters
n010
(2010)
S00
(B120)

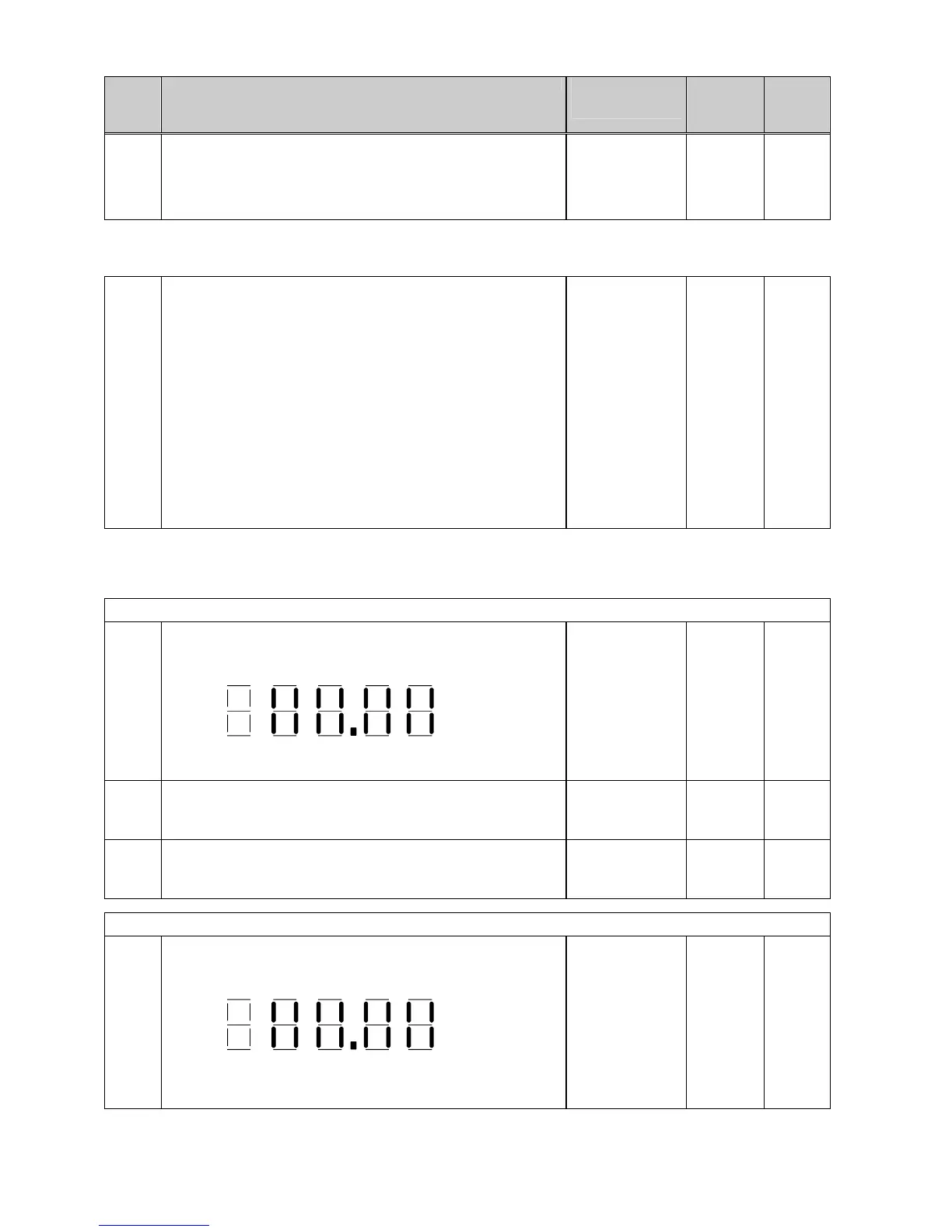

Connector/binector converter 1 (bit field 1) FB 10
Displays the status of the bits in the bit field on the bars of the 7-segment
display
3210
4
5
6
7
89101112131415
Segment ON: Bit (binector) = log. "1" state
Segment OFF: Bit (binector) = log. "0" state
Ind: None
Type: V2
P052 = 3
n011
(2011)
S00
(B120)
Connector/binector converter 2 (bit field 2) FB 11
As for n010
Ind: None
Type: V2
P052 = 3
n012
(2012)
S00
(B120)
Connector/binector converter 3 (bit field 3) FB 12
As for n010
Ind: None
Type: V2
P052 = 3
Binector/connector converters
n013
(2013)
S00
(B121)
Binector/connector converter 1 (bit field 4) FB 13
Displays the status of the bits in the bit field on the bars of the 7-segment
display
3210
4
5
6
7
89101112131415
Segment ON: Bit = log. "1" state
Segment OFF: Bit = log. "0" state
Ind: None
Type: V2
P052 = 3
