05.05 Connections
Siemens AG 6RX1700-0AD76 6-11
SIMOREG DC Master Operating Instructions

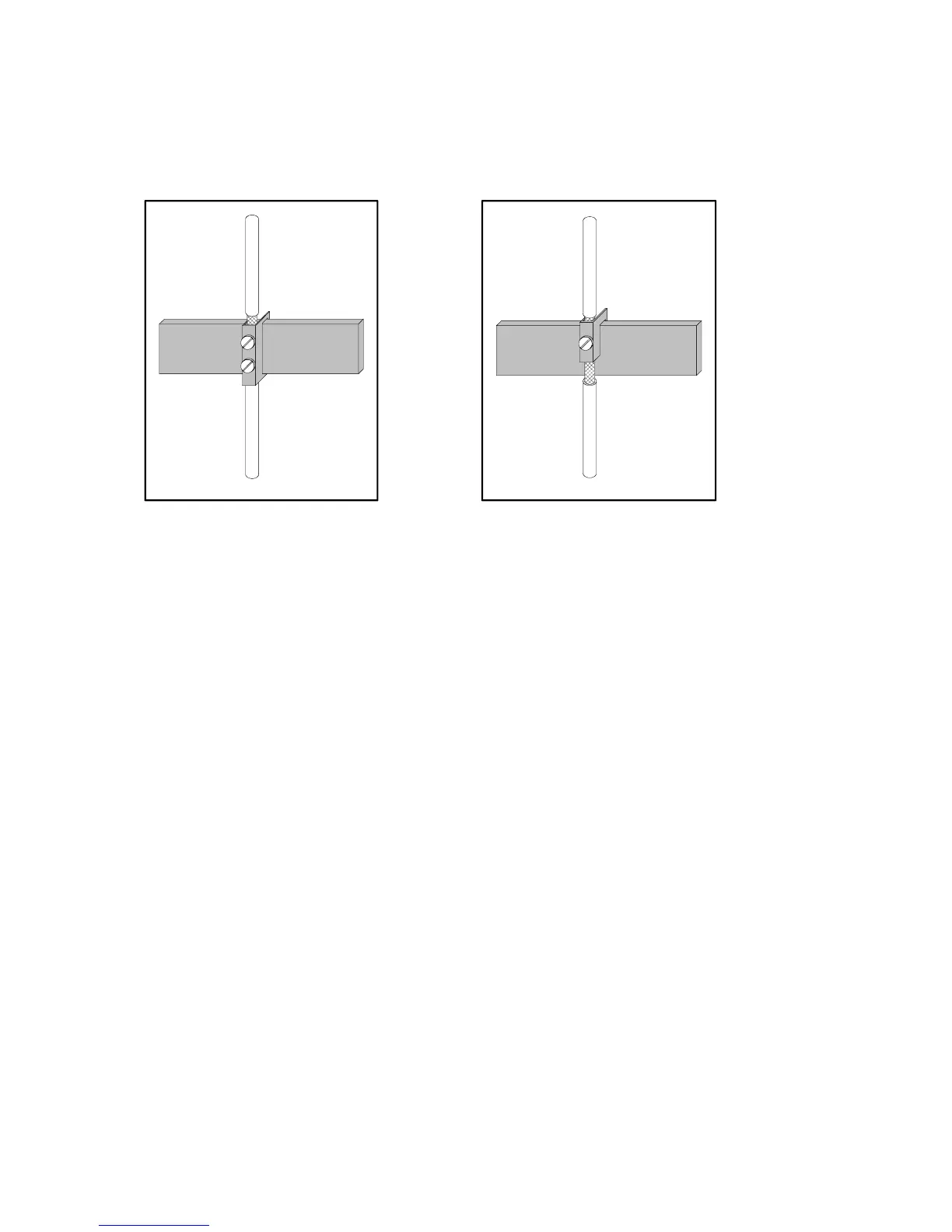

Shield connections:
Variant 1: Variant 2:
Fig. 2a: Terminal on a copper busbar, max.
cable diameter 15 mm
Fig. 2b: Terminal on copper busbar, max. cable
diameter 10 mm
Caution!
The conductor might be damaged if the terminal
screw is over-tightened.
Note:
Terminals:
5 mm busbar thickness
Order No. 8US1921-2AC00
10 mm busbar thickness
Order No. 8US1921-2BC00
Note:
Terminals:
Order No. 8HS7104,
8HS7104, 8HS7174, 8HS7164
