Connections 05.05
6-12 Siemens AG 6RX1700-0AD76
SIMOREG DC Master Operating Instructions
Variant 3: Variant 4:

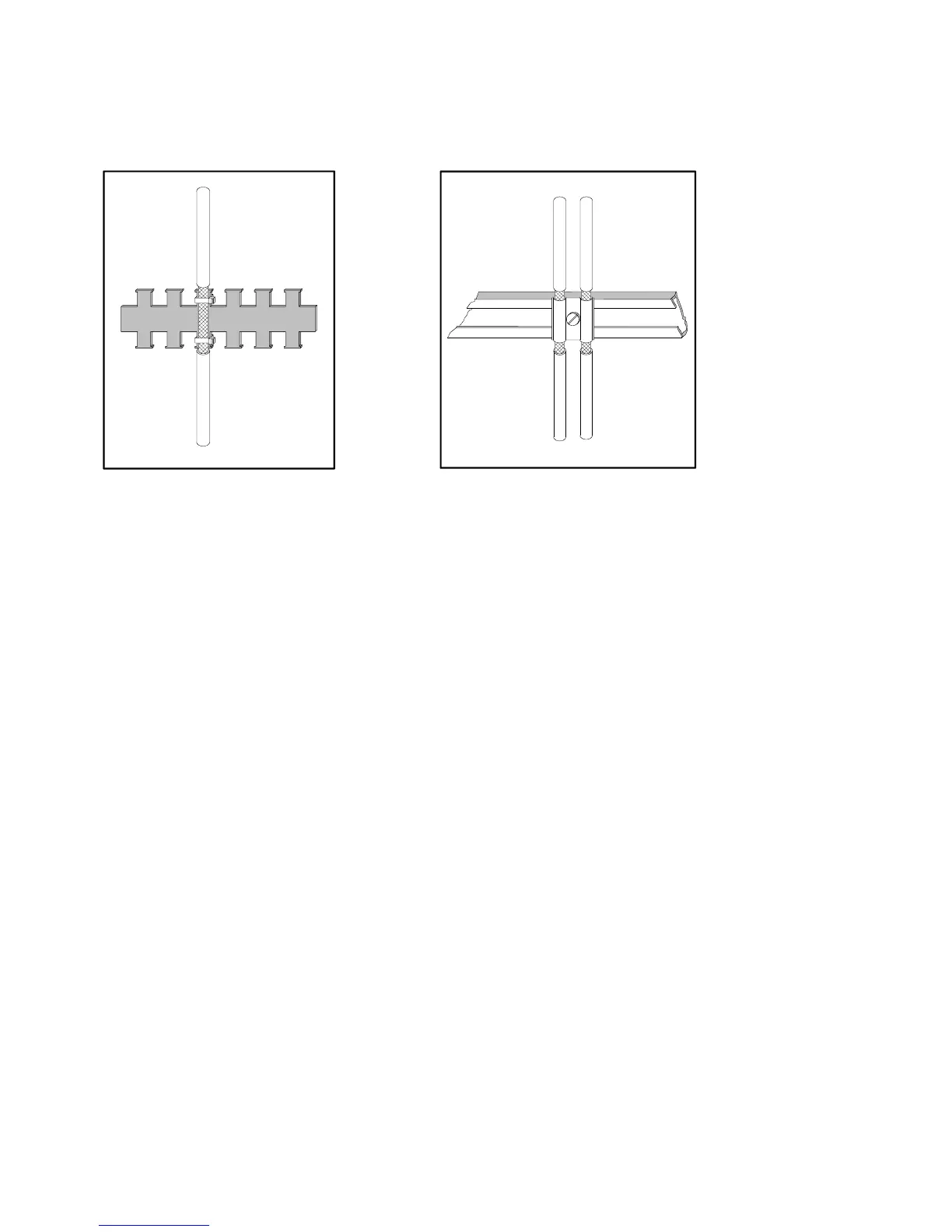

Fig. 2c: Metallized tubing or cable ties on a bare
metal comb-type/serrated rail
Fig. 2d: Clamp and metallic mating piece on a
cable clamping rail
Note:
Comb-type rail:
Item No. J48028
Note:
Siemens 5VC55... cable clamps;
Clamping rails in various sizes:
Item No. K48001 to 48005
