Siemens FC700A - Mechanical Design and Components

B3Q580 Floor repeater panel and B3Q590/B3Q595 Floor repeater panel with control functions
101
Siemens Building Technologies 007831_a_en_--.doc
Fire & Security Products 03.2004
26.3 Mechanical design

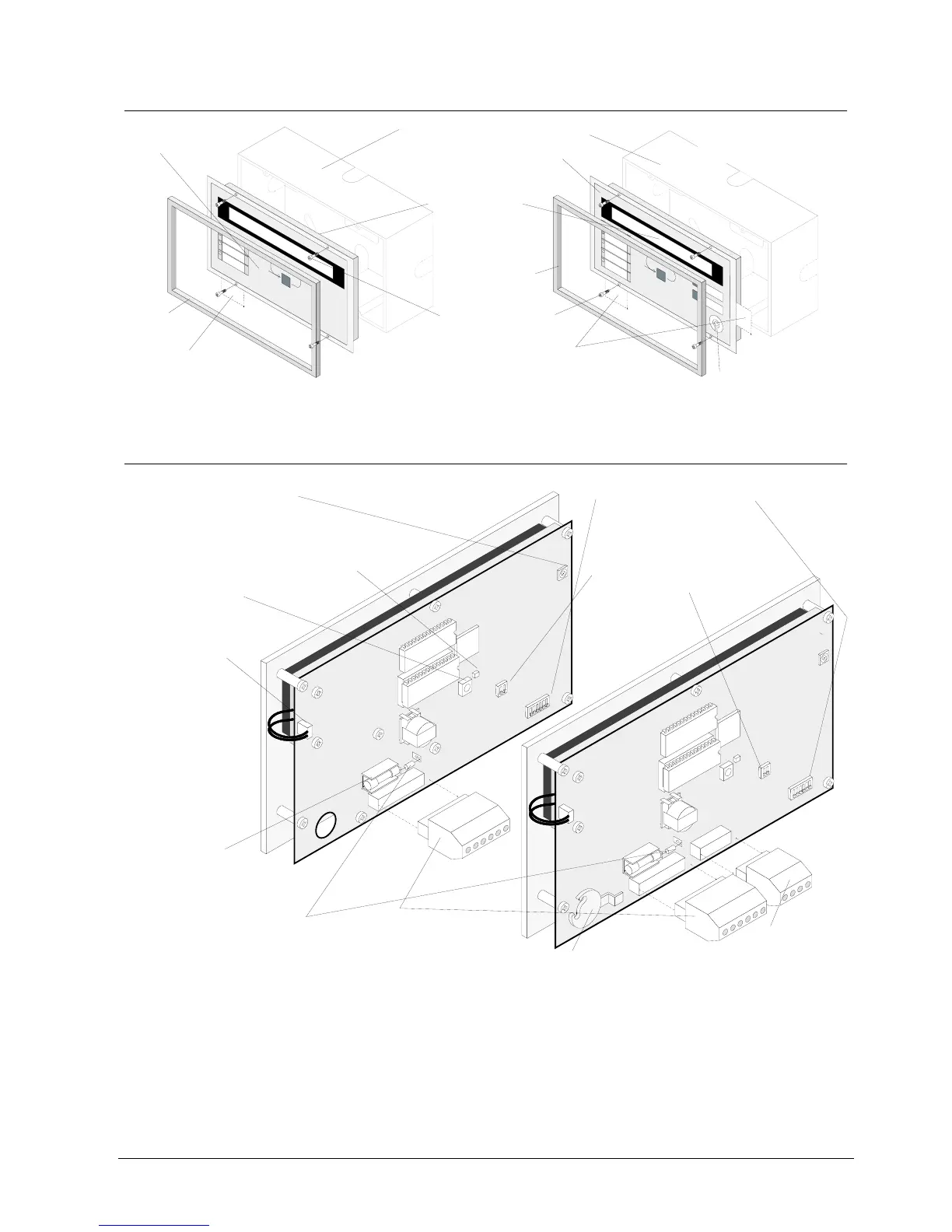

Display
4 Mounting screws
Cover frame
Plastic housing H23G230
Nordic key or KABA key
Slide-in inscription strips
yellow LEDS in exchange
by green LEDS
B3Q580
B3Q590/595
Slide-in inscription strips
Cover frame
26.4 Important components B3Q580, B3Q590, B3Q595
Programmierschalter "S4":
S4-1= IB-Mode (ON: Summer aus)
S4-2= nicht benutzt
Fuse "F1":
1A/T for supply input 9..45VDC
Plug-in terminals "K1":
Module supply and LON-Bus
Plug-in terminals "K2":
Programming inputs for
indication fields (LEDs)
Plug-in connector "ST1":
backlight
Key "S2": Service key
(unused)
LED "H1":
inactive -> normal operation
lit or flash -> EPROM defective or missing
Potentiometer "R28":
LCD contrast adjustment
for operating access:
- B3Q590: Nordic fire brigade key switch
- B3Q595: KABA fire brigade key switch
B3Q580
B3Q590
B3Q595
R28
ST1
F1
K1
K2
S2
S3
S4
H1
R1
S3
S4
R28
ST1
F1
R1
K1
S2
H1
ON
ON
ON
ON
1
1
1
1
1
6
1
6
1
4
RAM
LON
P
µ
EPROM
LON
P
µ
RAM
EPROM
Resistor 'R1' 100 : Ω
EOL (LON-Bus)
at application stubline:
to be remove resistor, if B3Q580
/590/595 is not the last device on
the LON-Bus (see E3I040 chapter
Principle wiring)
Programming switch "S3":
"LON-Bus address" setting
(see chapter Programming switch)
