E3G070 Control module ”Universal”
71
Siemens Building Technologies 007831_a_en_--.doc
Fire & Security Products 03.2004
18 E3G070 Control module ”Universal”
18.1 Overview
Universal control module
2 contacts for remote transmission ”Alarm and fault”
2 monitored control lines for alarm devices with EMI and over voltage protection
7 programmable control outputs / inputs
Monitored supply output for internal devices
Integrated ground fault monitoring
Card format 100mm x 200mm
I-Bus address is set at programming switch ”S3”
18.2 Key data
”Remote transmission” contacts max. load
type
24W (60V 1A),
choice of make / break contact
”Alarm horn line” max. load 2A (24V), with EMI protection
Inputs max. load
activation
40mA (24V), internal only
via volt-free contact
Supply output max. load 630mA (24V), internal only
Quiescent current at 24V 25mA

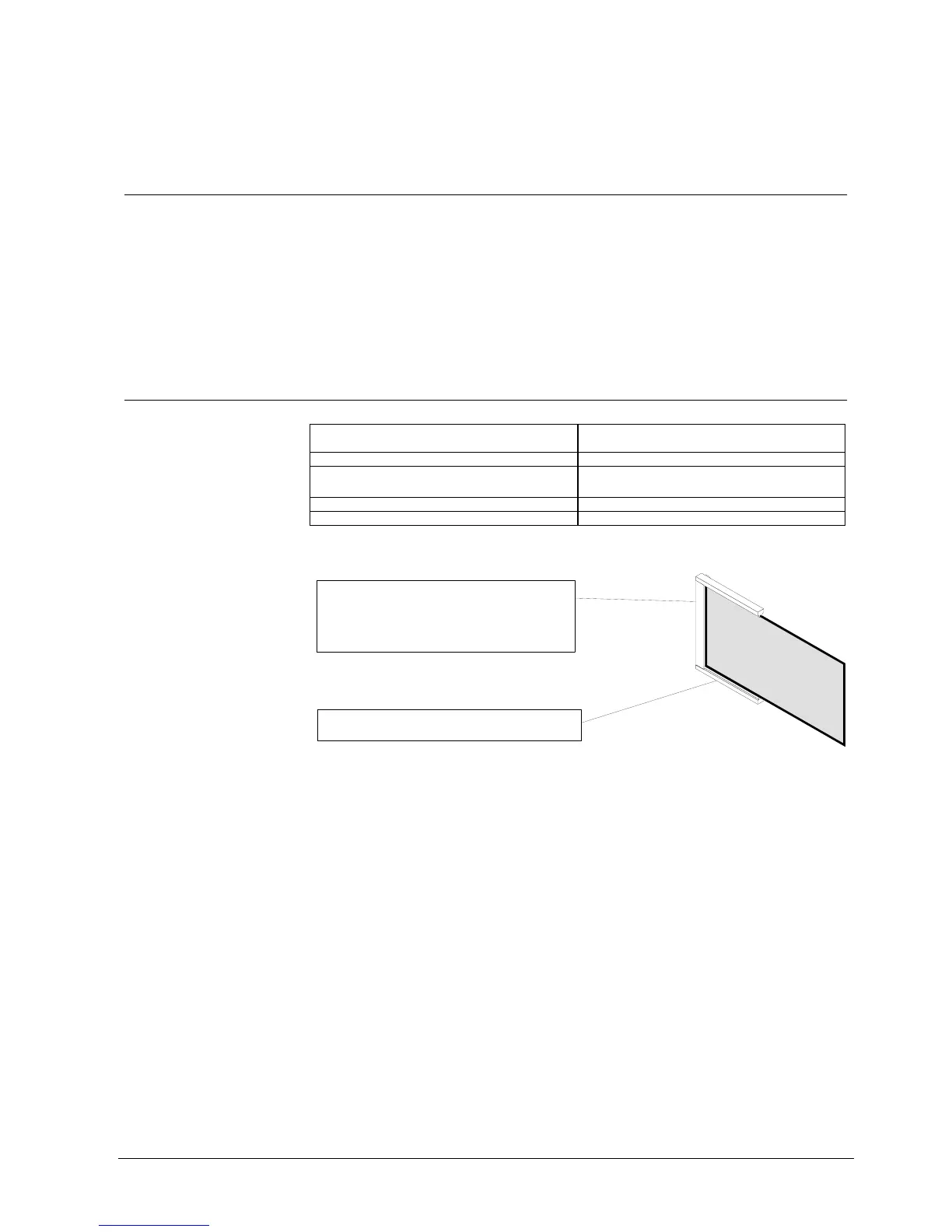

E3G070
Terminal block X1 (20 terminals)
- mounted on module chassis
- for the connection of the prefabricated cable to
connection level, or
- for direct connection of the periphery
Card chassis
- mounted on module chassis
