Siemens FC700A - Important Components and Programming S3

E3L020 Control module ”I/O”
58
Siemens Building Technologies 007831_a_en_--.doc
Fire & Security Products 03.2004

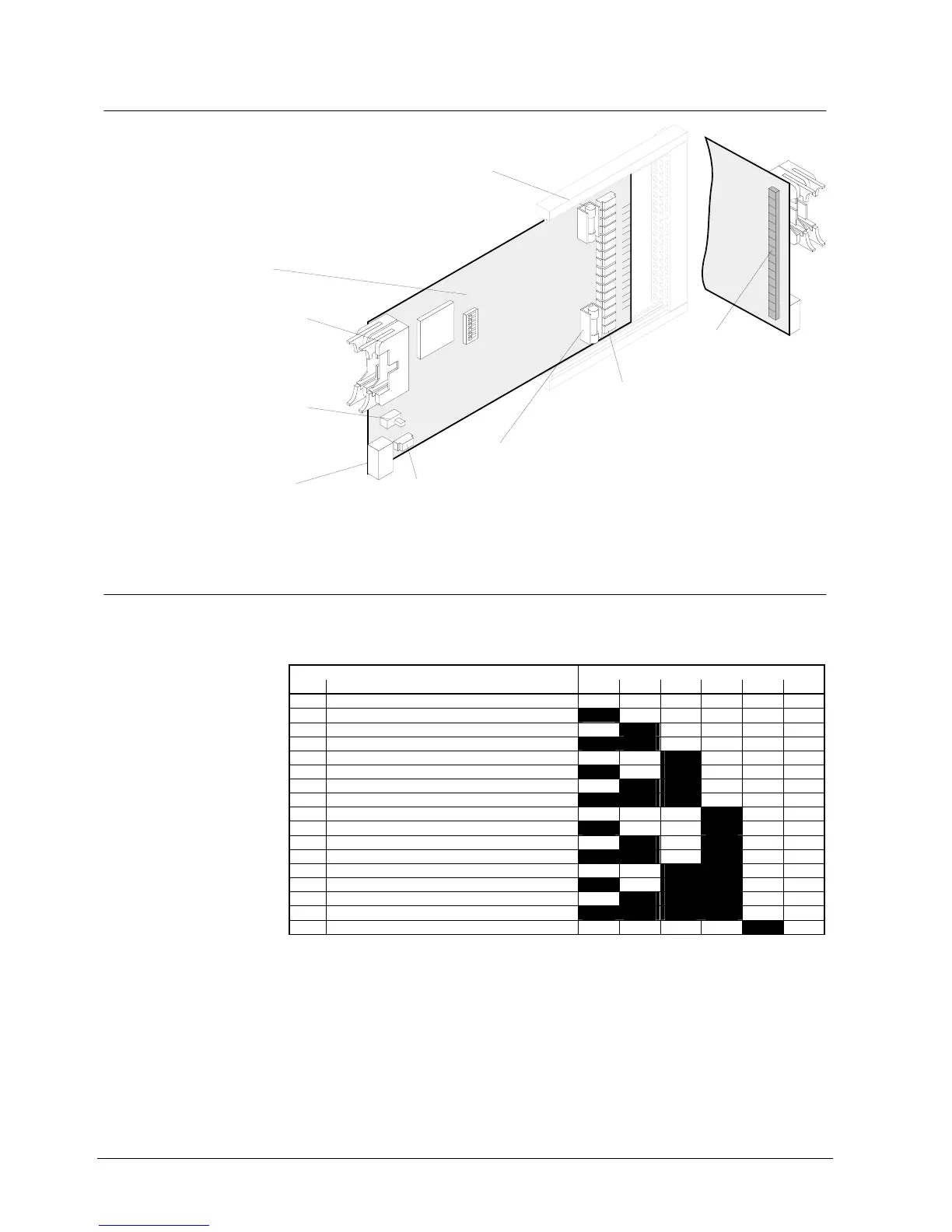

14.3 Important components
Fuses
F2...F17 1A/F inputs/outputs 1....16
(not monitored)
SMD fuses (can only be changed at factory)
Fuse
F19 1,6A/F Module supply
SMD fuse (can only be changed at factory)
Fuse
F18 1,25A/F (monitored)
Fuse with high breaking capacity
(sand-filled)
Fuse
F1 0,5A/T (monitored)
Fuse with high breaking capacity (sand-filled)
Flat cable header "ST1" (26-pin):
I-Bus
Plug-in terminals "K1":
Supply to the "I-Bus" modules
Maintenance switch "S2":
Test LEDs H1...H16 Switch on / off
To switch on maintenance LEDs for
test purposes. In addition to driver
output, enables the corresponding LED
(H1...H16) to be activated.
= LED (H1..H16) lights if
output is activated.
S2-on
Programming switch "S3":
"I-Bus address" setting (see below)
Test LEDs H1...H16 at rear.
Allocation of LED see
chapter Connections
S3
F18
F2
F17
F1
ST1
S2
ON
ON
1
F19
K1
1
4
E3L020
H1
H16
ASIC
I-Bus
14.4 Programming switch ”S3”
To set I-Bus address. Each element (module) connected to the I-Bus must have an
individual address (number). This is set on programming switch ”S3”. Maximum 16
I-Bus devices.
Function / I-Bus address Programming switch S3
No. S3-1 S3-2 S3-3 S3-4 S3-5 S3-6
0 Module out of commission (unused) off off off off off off
1 I-Bus user number 1 on off off off off off
2 2 off on off off off off
3 3 on on off off off off
4 4 off off on off off off
5 5 on off on off off off
6 6 off on on off off off
7 7 on on on off off off
8 8 off off off on off off
9 9 on off off on off off
10 10 off on off on off off
11 11 on on off on off off
12 12 off off on on off off
13 13 on off on on off off
14 14 off on on on off off
15 15 on on on on off off
16 16 off off off off on off
”S3-1...6” are set to ”off” at the factory
