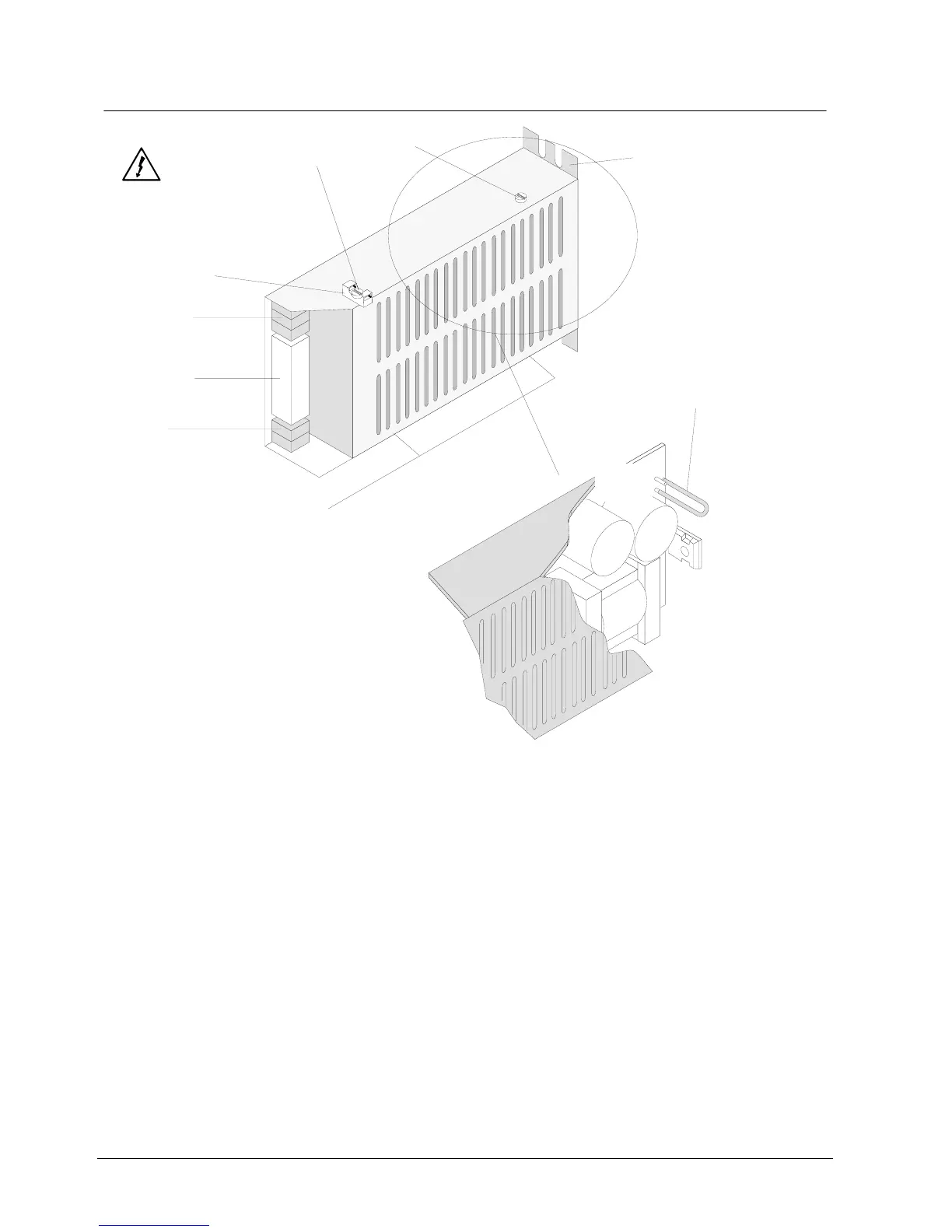

8.3 Important components
24V
Mains
Mounting flange
Power supply
24V Load
unused
Mounting screws for metal shield
Mounting screws for metal shield
Jumper for switchover 115VAC/230VAC
Clamp to fasten the mains cable
DANGER
115VAC
230VAC
Note:
 Check mains voltage setting before commissioning
The converter is supplied by the factory at 230V
AC
To switchover to 115V
AC → remove metal shield (remove screws ) and then plug in
jumper at the ”115V
AC” pin
