E3C011 Battery charging module
24
Siemens Building Technologies 007831_a_en_--.doc
Fire & Security Products 03.2004

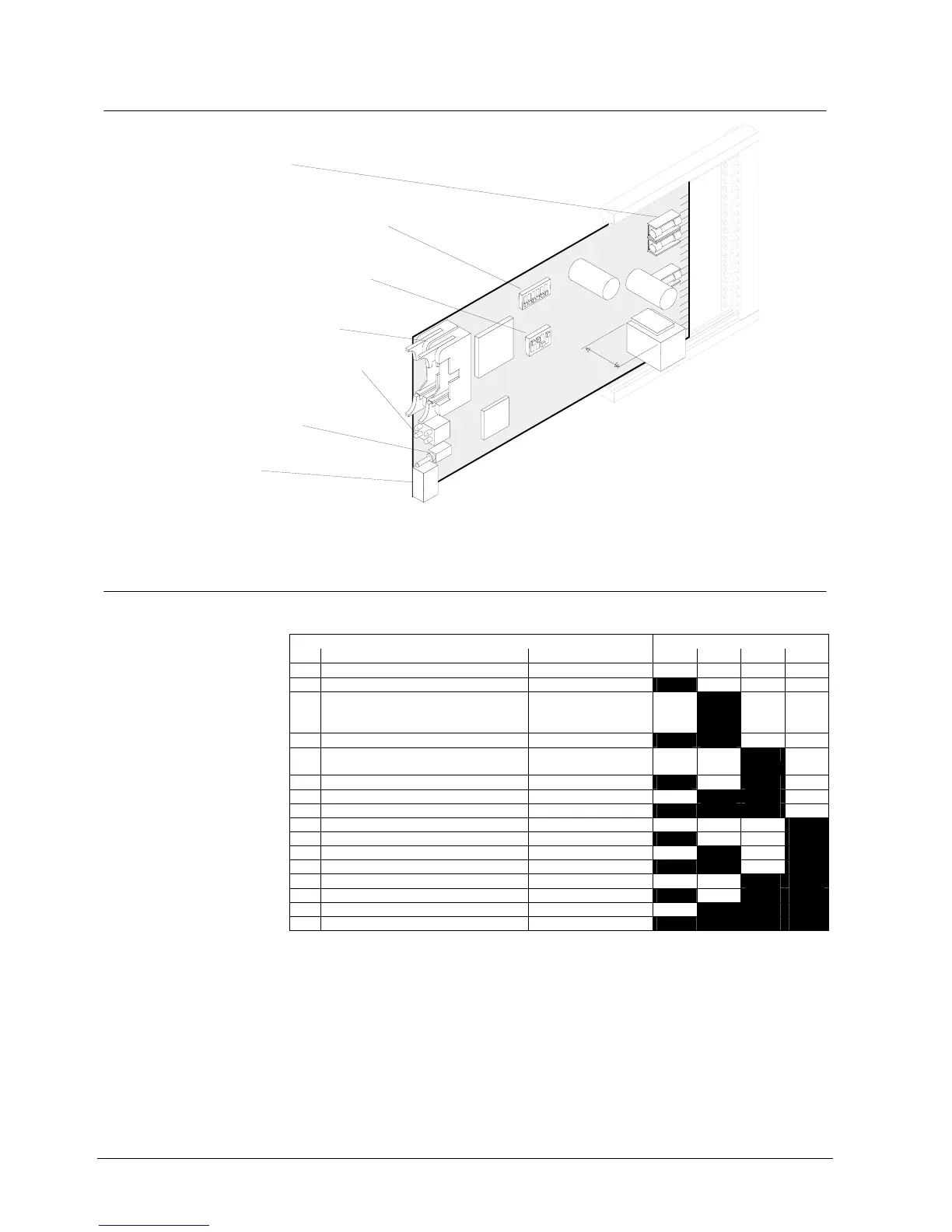

7.4 Important components
E3C011
F501
F502
F503
ca.28
ON
S3
S2
ON
ST1
S1
1
1
K1
1
4
Fuses
F501 6.3A/T* battery "Positive"
F502 6.3A/T* battery "Negative"
F503 6.3A/T* Battery "Centre"
* Fuse with high breaking capacity (sand-filled)
Key "S1": System start only with
battery (without mains voltage)
Flat cable header "ST1" (26-pin): I-Bus
Plug-in terminals "K1":
Supply for the modules "I-Bus"
LED indicator block "Power supply status"
(see table LED indicator block)
Programming switch "S2": Set battery type
Programming switch "S3": Set "I-Bus address"
µ
P
ASIC
I-Bus
(see chapter ‘Programming switches’)
(see chapter ‘Programming switches’)
7.5 Programming switch ”S2”
To set temperature compensation according to information from the various battery
manufacturers
Possible battery variants Programming switch S2
Var. Battery manufacturer Battery model S2-1 S2-2 S2-3 S2-4
0 off off off off
1 on off off off
2 Varta
Shin-Kobe (Hitachi)
Kobe PSD (Power Storage Germany)
CF 12-24 (VM 1224)
HP..-12
HP..-12
off on off off
3 Genesis G12V120W15 on on off off
4 Sunrise
Panasonic
LCL 12V24S
LCL 12V..P
off off on off
5 Phoenix (Korea) FNC 12..0 on off on off
6 Yuasa NP..-12B off on on off
7 Sonnenschein Dryfit A212/..G5 on on on off
8 Power-Sonic PS12..0 off off off on
9 Hagen Drysafe HDS-12..0NB on off off on
10 Sonnenschein Dryfit A512/..G5 off on off on
11 ALARMCOM (FIAMM)
FG... on on off on
12 off off on on
13 on off on on
14 off on on on
15 on on on on
”S2” is set to variant 11 (ALARMCOM) at the factory
Floating charge voltage as a function of temperature, or for diagrams of the various types of battery
see page 25
