K3I110 LON I/O p.c.b.
96
Siemens Building Technologies 007831_a_en_--.doc
Fire & Security Products 03.2004
25 K3I110 LON I/O p.c.b.
25.1 Overview
 In-/output card with 16 programmable control in-/outputs
 LON-Bus device
 Max. 32 devices
 Selectable ground fault monitoring, detected via E3G070 (for application details
see chapter 6)
 Card format 100mm x 200mm
 Equipped with mounting plate
25.2 Application
– The card communicates (LON-Bus) via converter module E3I040 (LON-/I-Bus)
with the control unit.
25.3 Key data
Output contacts, NO Outputs are galvanically isolated, not supervised on open circuit,
short circuit or ground fault
Ratings relay contacts max. 1A / 30VDC
Inputs supervised on open circuit, short circuit, deviation and ground
fault
Operating voltage 9...45VDC
min. 24mA / max. 184mA *
min. 53mA / max. 218mA *
min. 19mA / max. 171mA *
per activated relay (at 24V) 10mA (without LED 9,2mA)
Current consumption at 24V
9V
45V
per input with closed contact max. 0,5mA
* all relay activated incl. service LED

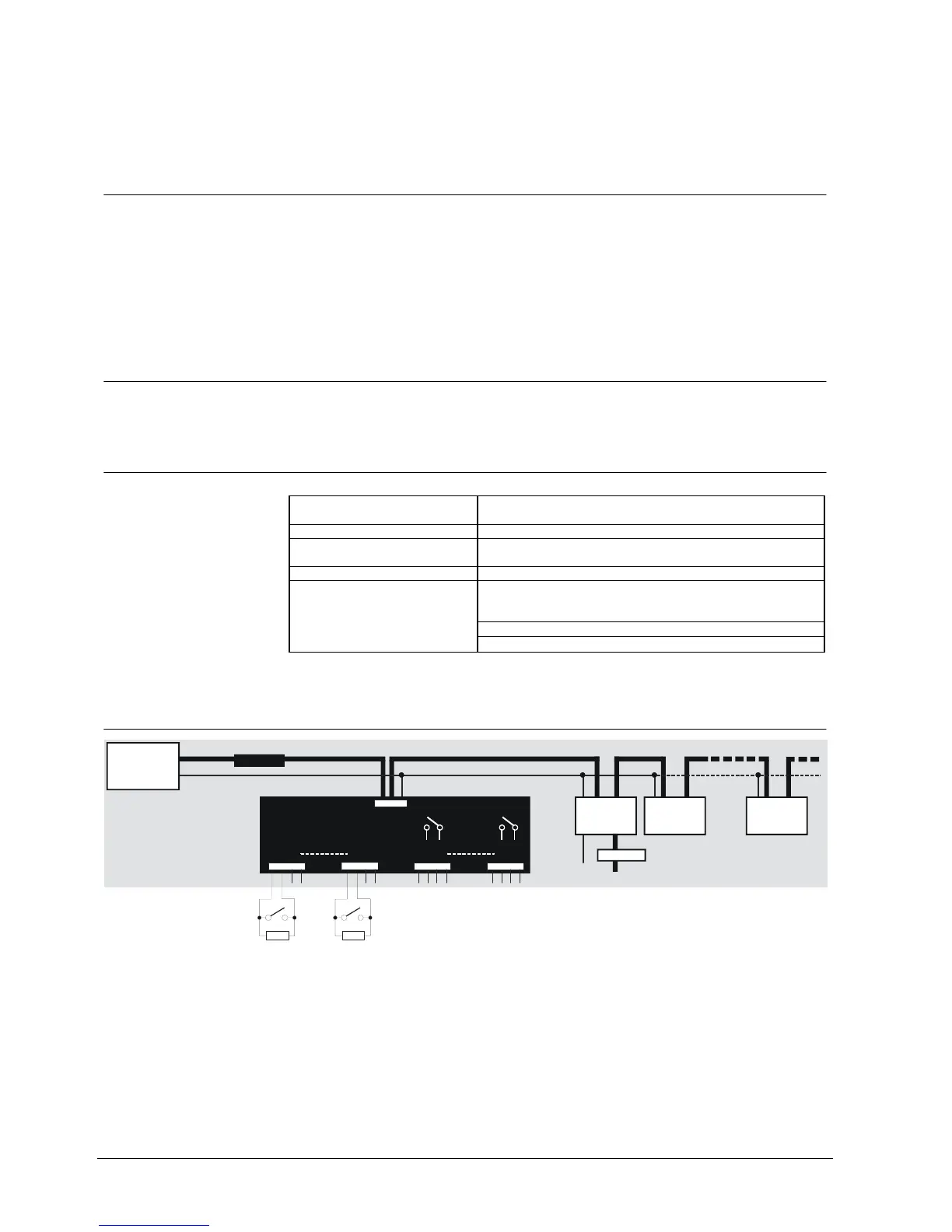

25.4 Wiring principle
K3I110
24V DC
K1
X31 X38
16 programmable monitored control inputs
X56 X63
16 programmable control outputs
max. 30V /1A
E3I040
max. length of LON-Bus 1000m
B3Q580
B3Q590/
595
LON-Bus
K3I050
24V
DC
Data bus
