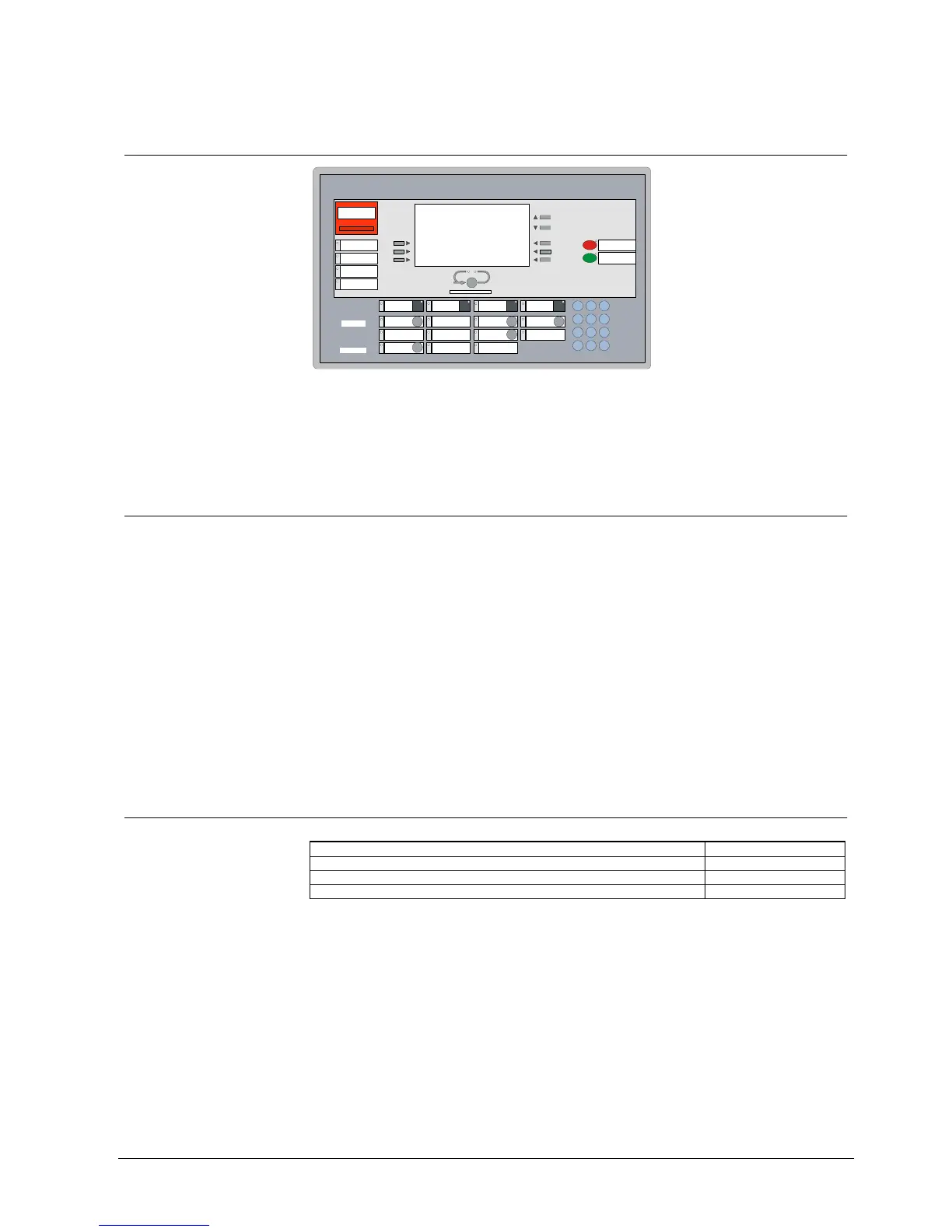

B3Q700 Control terminal to FC/FT
75
Siemens Building Technologies 007831_a_en_--.doc
Fire & Security Products 03.2004
20 B3Q700 Control terminal to FC/FT
240 x 128 dots
illuminated
yellow
Notes:
Operation and designation of indicators, see document no. 007835
Details for ordering see document no. 007836 ’Planning’
Principle of the insertable inscription strips see page 77
20.1 Overview
Control terminal for the fire control unit FC700A
Becomes at the same time used as ’main-CPU’
For full system operating
Can be used for single or multi AREA operating
Emergency operating facility integrated
Flash-ROM 2MBx8Bit as program memory, programming via Flash-Tool (PC)
SRAM for user data and standard text
Selectable ground fault monitoring, detected via control module E3G070 (for ap-
plication details see chapter 6)
Operating access via password and/or key switch (option)
Insertable inscription strips in different languages
To be built into the housing of the control unit or remote located in separate
housing
20.2 Key data
Operating voltage 18...45VDC
Quiescent current (illumination of the LCD inactive) 100mA (24V)
Alarm current 330mA (24V)
Maximum current (LCD backlight active + lamp test) 420mA (24V)
