K3G060 Relay card
90
Siemens Building Technologies 007831_a_en_--.doc
Fire & Security Products 03.2004

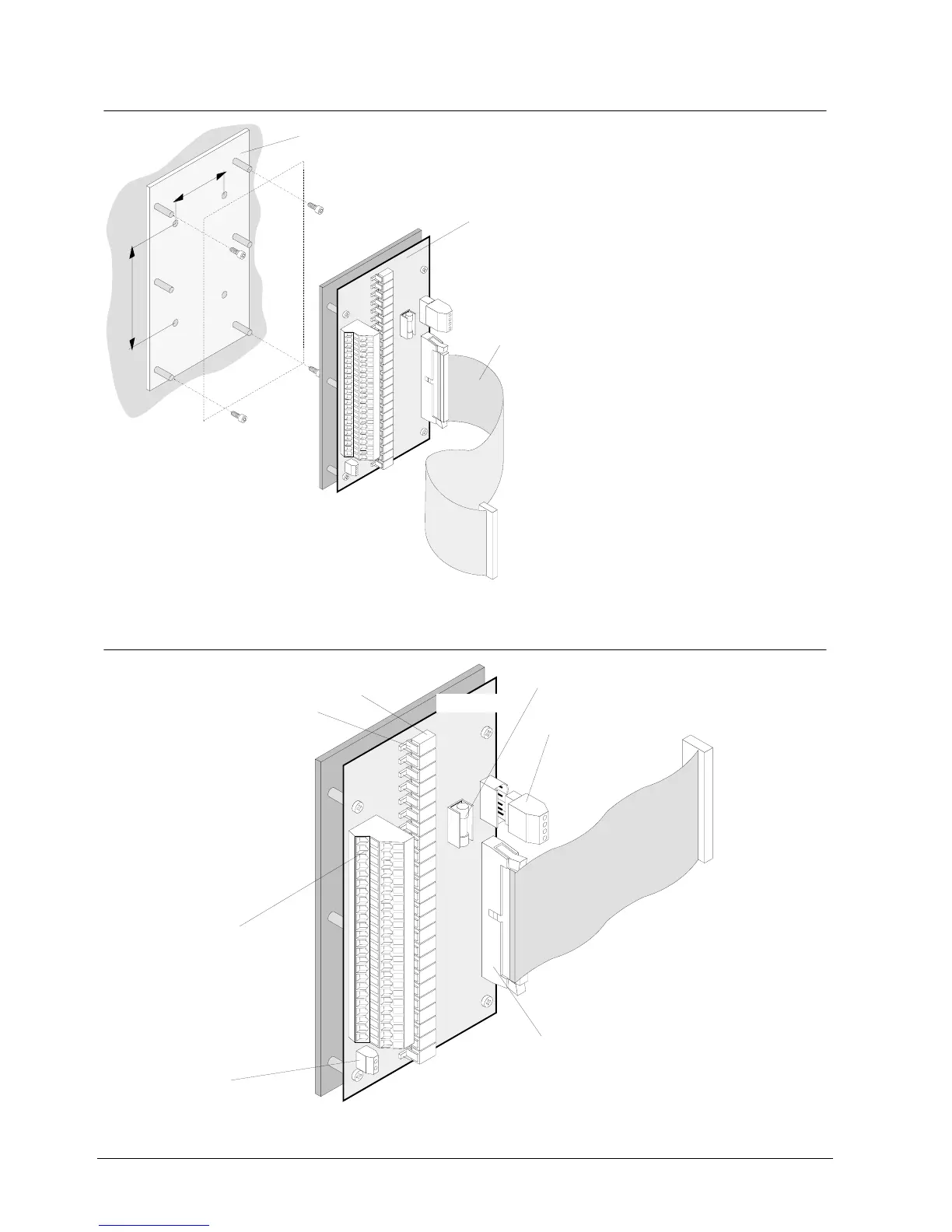

23.4 Mechanical design
Electronics board K3G060
with mounting plate
Mounting plate with mounting holes and spacer bolts
Flat cable 50-pin (length 0,25m)
supplied with relay board
60
120
23.5 Important components
Fuse F1 0.4A/T
Plug-in terminals "K1" 4-pin:
Supply 9...45VDC
Connector 50-pin "ST1" with flat cable
(length 0,25m)
Terminal block "K2":
Relay output channels 1.....24
Programming jumpers "X1....X24":
Possibility to connect the potential
V+ or V- onto relay contacts
Jumper open:
are set to NEUTRAL at the factory
Relay "K1....K24"
Possibility to connect
V+ / V- potential
K2
K1
F1
X1
X6
K24
X24
K3
ST1
K1
K3G060
