B3Q700 Control terminal to FC/FT
77
Siemens Building Technologies 007831_a_en_--.doc
Fire & Security Products 03.2004

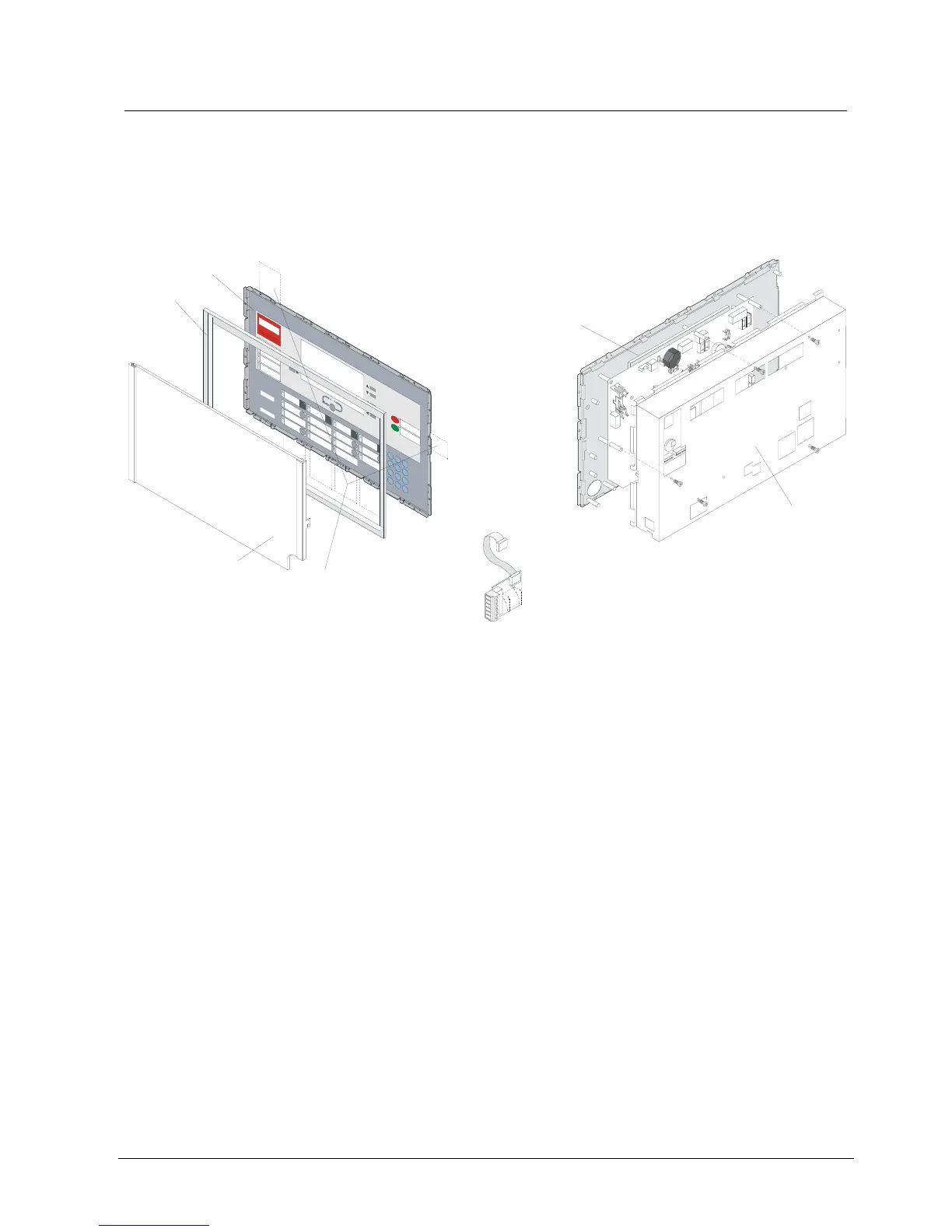

20.5 Mechanical design
Front panel with foil and integrated keyboard
Inscription with insertable inscription strips
Electronics shielded by metal cover
Key switch (option) to lock the Plexiglas door (can also be used to enable opera-
tion)
Mounting see document no. 007827
Insertable inscription strips
Foil
Cover frame
Plexiglass door H26T030
(Option)
Adapter Z3I530, flat cable -> terminals:
Connection housing to the
parallel indicator panel B3R051 etc.
outside
Protective cover
Display
