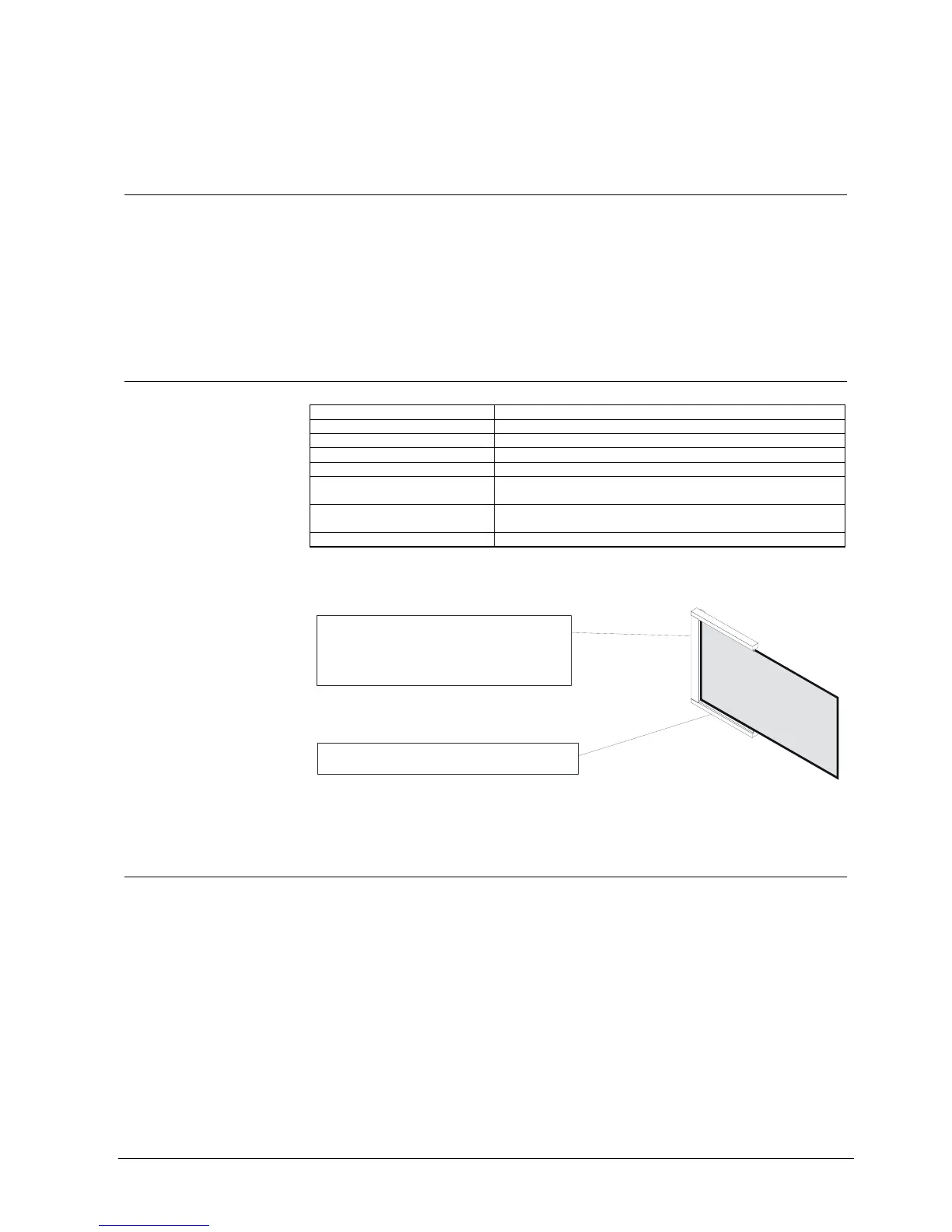

E3M111 Line module ”SynoLOOP”
37
Siemens Building Technologies 007831_a_en_--.doc
Fire & Security Products 03.2004
10 E3M111 Line module ”SynoLOOP”
10.1 Overview
Line module for addressable Synova
TM
detectors
I-Bus module with line processor and independent emergency operation proces-
sor
Designed for four loop lines or stub lines
Line inputs protected against over voltage
Card format 100mm x 200mm
I-Bus address is set at programming switch ”S3”
10.2 Key data
Addresses per line ...128
1)
Number of wires 2
Twisted cable recommended
Line resistance
...150Ω with 128 detectors
1)
Line capacitance ...300nF
1)
Short-circuit proof line yes (automatic detectors, manual call points, input/output mod-
ules with line separator)
Quiescent current at 24V 210mA with 512 detectors
(50mA without detectors + 0.31mA per D-Bus user)
Current at supply output ....500mA / 18...30VDC (not stabilized)
1)
Limitations see document 007836
E3M111
Terminal block X10 (20 terminals)
- mounted on module chassis
- for the connection of the prefabricated cable to
connection level, or
- for direct connection of the periphery
Card chassis
- mounted on module chassis
10.3 Special functions
Line separator
Upon short circuit the part of the line that malfunctions must be separated from the
rest of the line. This is carried out by line separators integrated in each detector,
manual call point and input/output module. According to EN54, a ”simple error”
may not cause the malfunction of more than 32 detectors. After the short circuit the
line automatically reverts to ”Normal operating condition”.
