Example

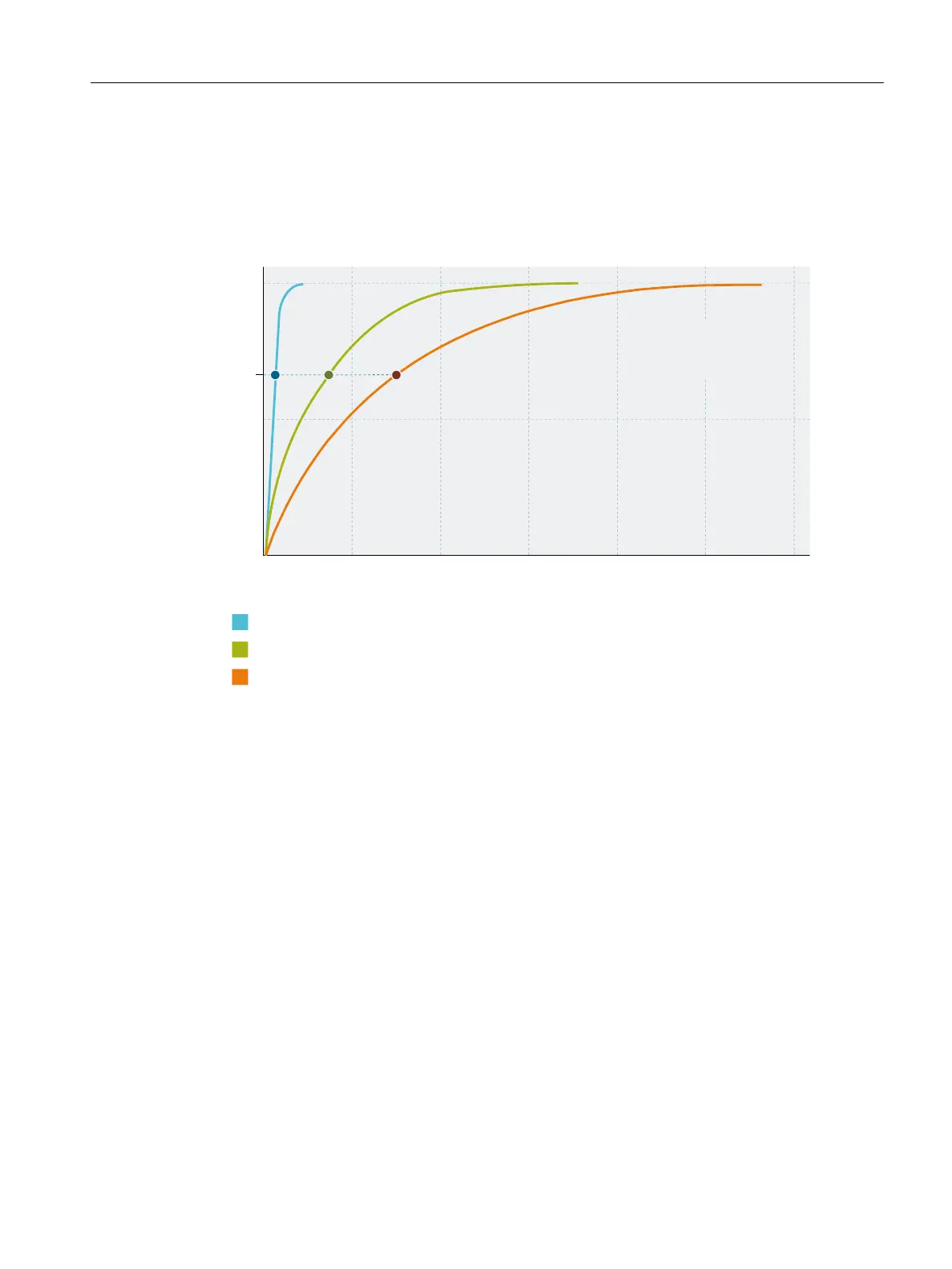

The following gure shows after how many module cycles it takes for the smoothed analog value
to approach 100 % in the case of a step response, depending on the set smoothing. This
specication is valid for all signal changes at the analog input.
4JHOBMTNPPUIJOH<>
.PEVMFDZDMFT
4UFQSFTQPOTFGPSBOZ
BOBMPHJOQVUTJHOBM
Weak smoothing
Medium smoothing
Strong smoothing
Figure 14-11 Example of the inuence of smoothing on the step response
14.12.3 Assigning the channel and IEEE tag
Properties
The analog electronic modules 4 AI I 2WIRE HART, 4 AI I 4WIRE HART and 4 AO I HART support
up to four IEEE variables.
In the process image input (PII), a maximum of 20 bytes per module are available for the IEEE
variables. For the four IEEE variables, there are thus four blocks of 5 bytes each within the PII.
Requirements
The HART eld device must support the parameterized number of the IEEE variables.
Analog electronic modules
14.12 Parameter description of the analog electronic modules
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 407
