Siemens SIMATIC ET 200iSP

14.6 Analog electronic module 4 AO I HART
Article number
6ES7135-7TD00-0AB0
Properties
• 4 outputs for current output
• Output ranges (selectable)
– HART
– 4 to 20 mA
– 0 to 20 mA
• Resolution 14 bits

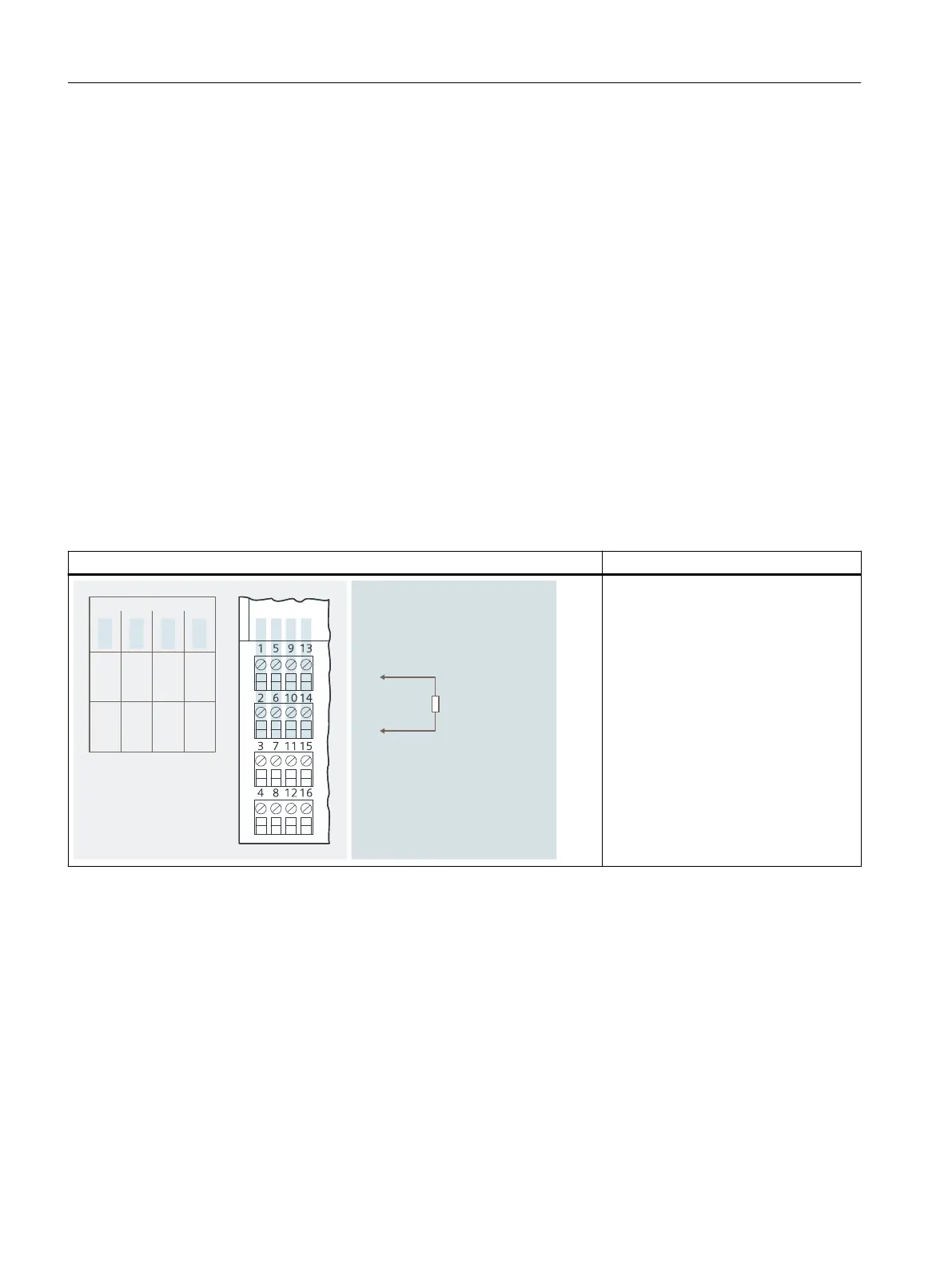

Pin assignment
Pin assignment and view Remarks
$POOFDUJPOFYBNQMFGPS
DIBOOFM
$IBOOFM

2*
2*
2*
2*
2* 2*2* 2*



Actuator 1
Channel 0: Terminals 1 and 2
Actuator 2
Channel 1: Terminals 5 and 6
Actuator 3
Channel 2: Terminals 9 and 10
Actuator 4
Channel 3: Terminals 13 and 14
QI: Output positive (analog output cur‐
rent)
M: Ground
Analog electronic modules
14.6 Analog electronic module 4 AO I HART
ET 200iSP
370 Operating Instructions, 11/2022, A5E00247483-AK
