7.11.9 Starting the ET 200iSP with redundancy of the IM 152-1DP
Operating principle
In the case of redundancy, the two plugged IM 152-1DP start up independently of each other.
The following ow diagram shows the startup of the IM 152-1DP (a). If we consider the IM
152-1DP (b), the following ow diagram applies accordingly with reversed designations.

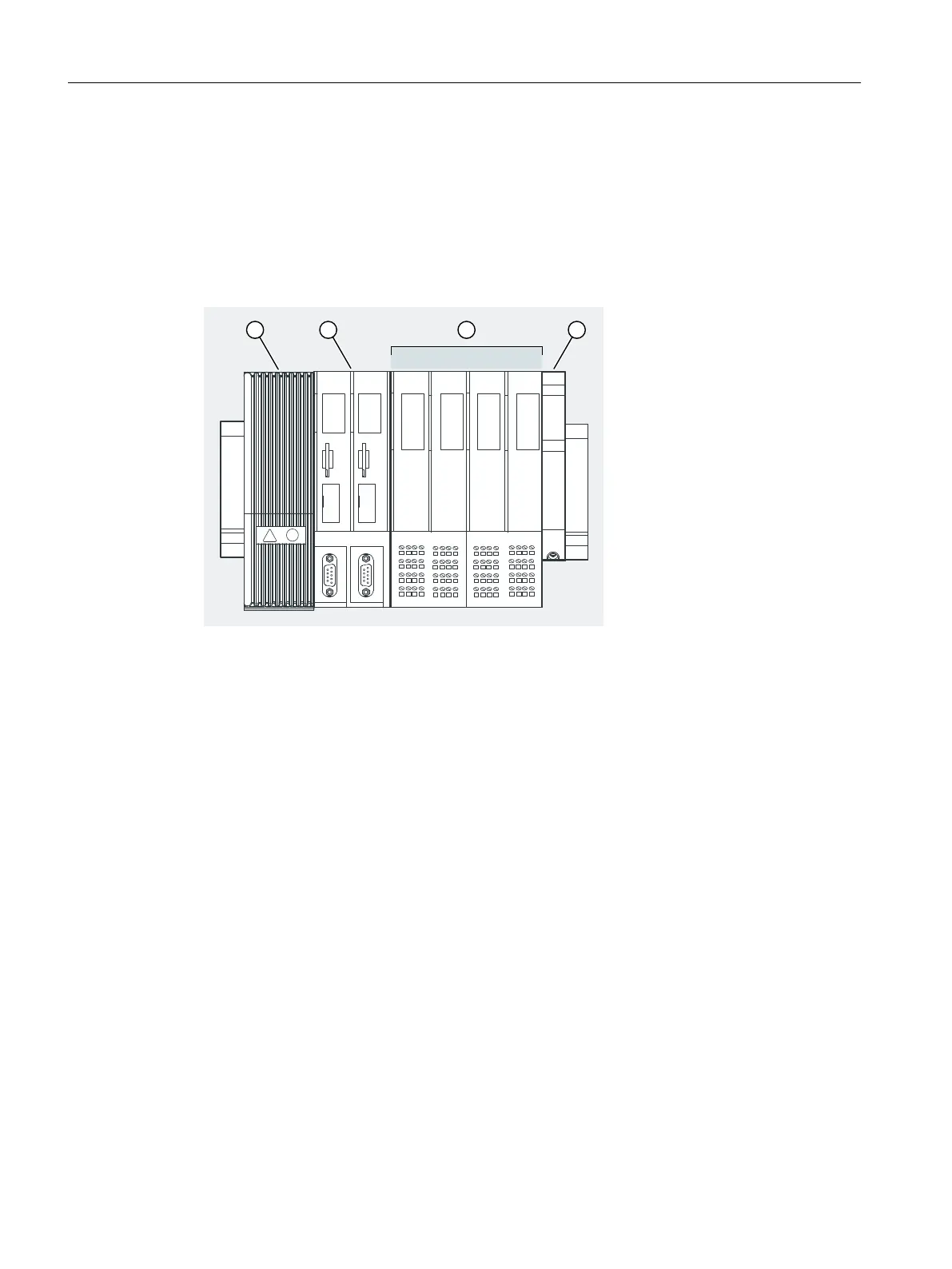

① Terminal module TM-PS-A with PS
② Terminal module TM-IM/IM with interface modules IM 152-1DP (a) and IM 152-1DP (b)
③ Terminal modules TM-EM/EM with electronic modules
④ Terminating module
Figure 7-8 ET 200iSP with PROFIBUS interface modules
