Wiring
6.8 Connecting cable shields for I/O modules
Distributed I/O system
104 System Manual, 09/2019, A5E03576849-AJ
Required tools
● Stripping tool
Procedure
Watch the "Wiring BaseUnits" video sequence
(http://support.automation.siemens.com/WW/view/en/95886218
)
To connect the cable shield, follow these steps:
1. If necessary, connect the supply voltage L+ and ground to the BaseUnit.
2. Press the shield contact up into the mount until you hear it click into place.
3. Remove the cable insulation material around the shield terminal.
Connect the cable to the BaseUnit and place the cable in the shield contact.
4. Insert the shield terminal into the shield contact.
5. Tighten the shield terminal with approximately 0.5 Nm.
①
Mount
⑤
Insulation material removed (approx. 20 mm)
②
Supply voltage L+, ground
⑥
Cable to the encoder
③
Shield contact
⑦
Shield terminal
④
Flat connector for push-on contacts
(6.3 × 0.8 mm)

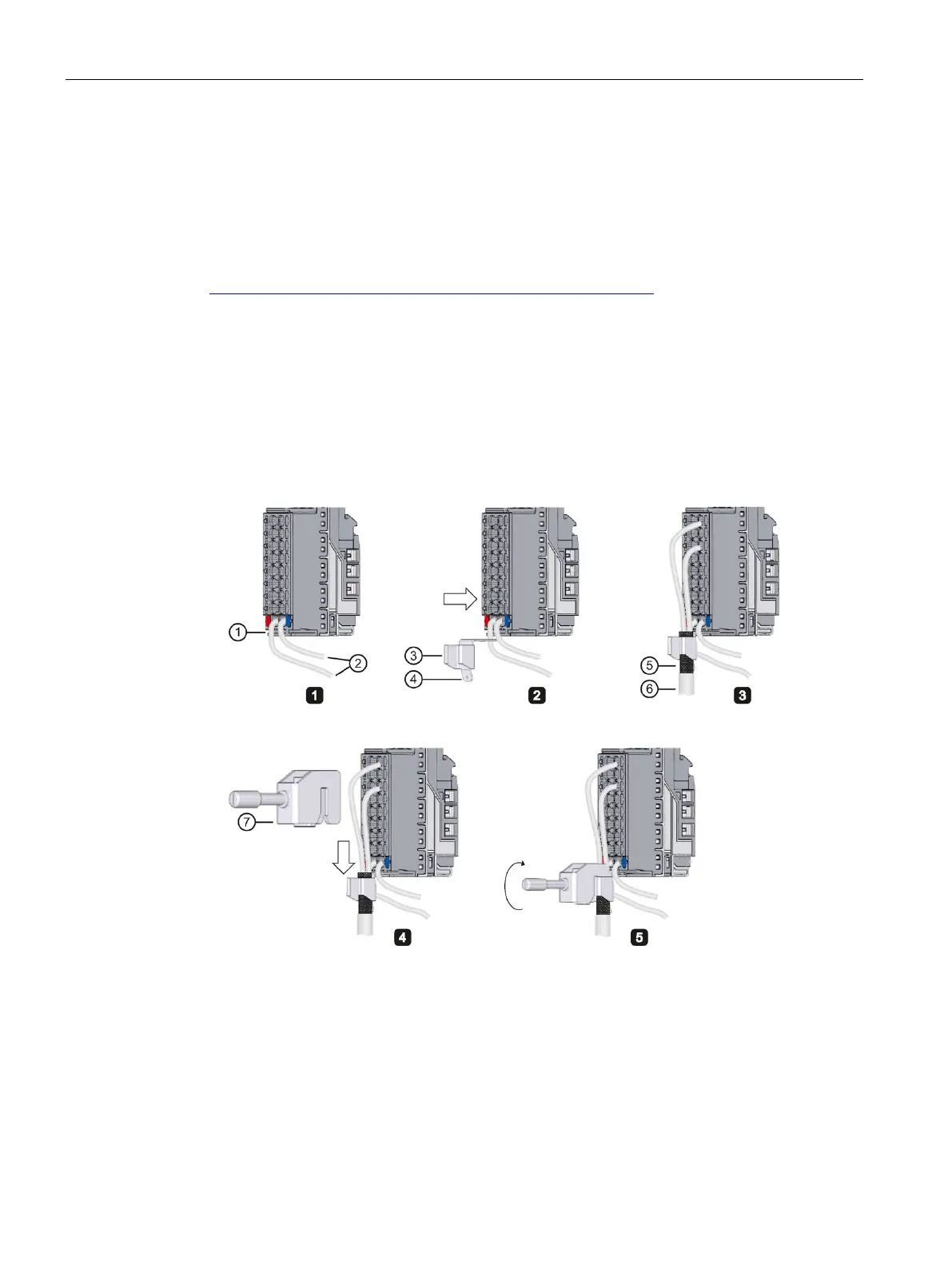

Figure 6-7 Mounting the shield contact

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
