11.3 Commissioning the ET 200SP on PROFIBUS DP
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
203
11.3.3 ET 200SP as a DP slave
Configuration example
To use the ET 200SP distributed I/O system as a DP slave, you need the IM 155-6 DP HF.

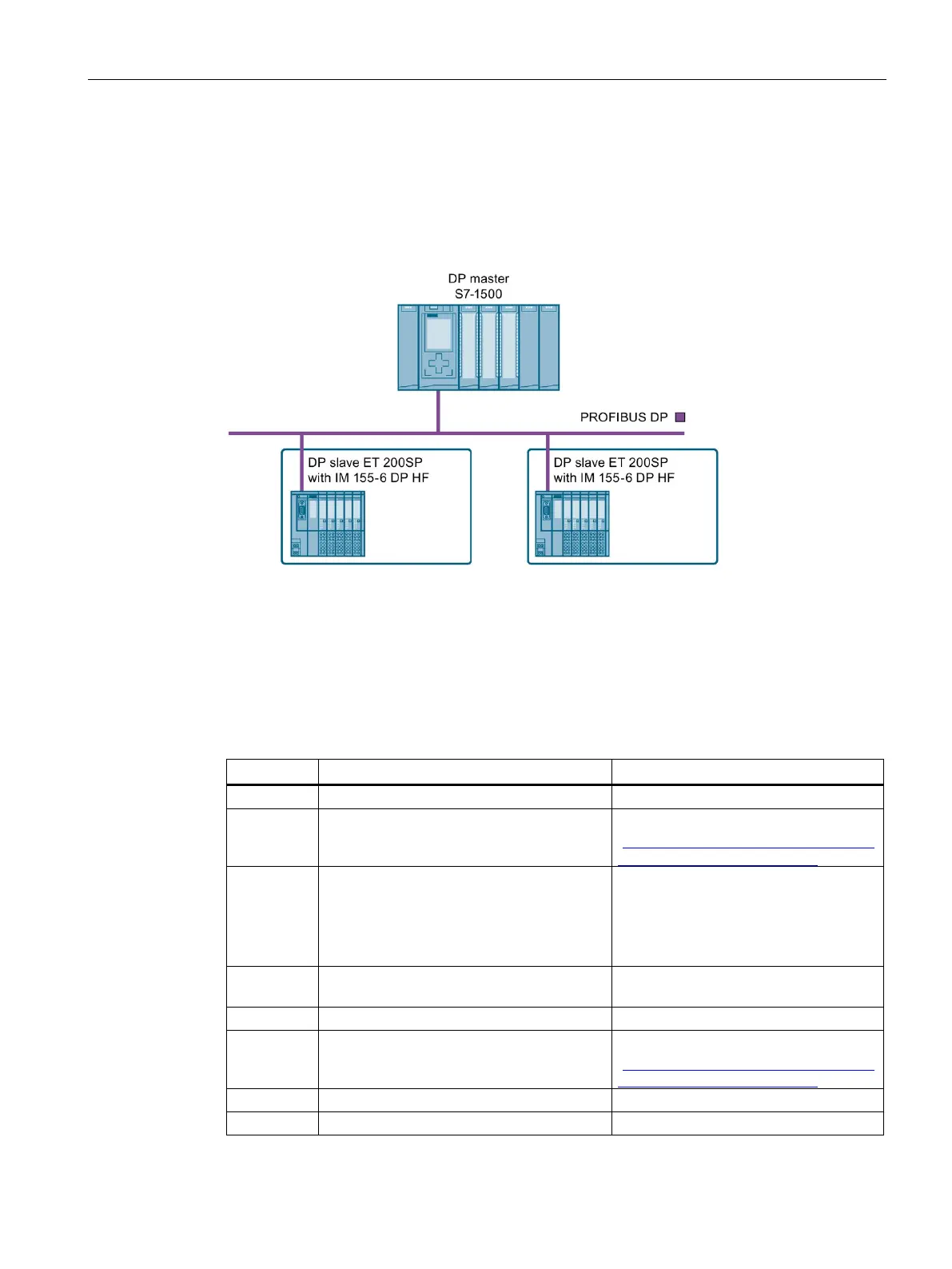

Figure 11-6 ET 200SP as a DP slave
Commissioning procedure
To commission the ET 200SP distributed I/O system as a DP slave on PROFIBUS DP, we
recommend the following procedure:
Table 11- 6 Procedure for commissioning the ET 200SP as a DP master for PROFIBUS DP
Step
Procedure
See ...
1
Installing ET 200SP (with IM 155-6 DP HF)
Section Installation (Page 63)
2 Setting the PROFIBUS address on the
interface module
Section Interface module
(http://support.automation.siemens.com/
WW/view/en/55683316/133300)
3 Connecting ET 200SP
• Supply voltages
• PROFIBUS DP
• Sensors and actuators
Section Wiring (Page 86)
4 Configuring DP master (including
PROFIBUS address)
Documentation of the DP master
5
Switching on supply voltages for DP master
Documentation of the DP master
6 Switching on supply voltages for DP slaves Interface module
(http://support.automation.siemens.com/
WW/view/en/55683316/133300) Manual
7
Download configuration to the DP master
STEP 7 online help
8
Switching DP master to RUN
Documentation of the DP master

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
