Wiring
6.14 Mounting/disassembly of motor starters
Distributed I/O system
118 System Manual, 09/2019, A5E03576849-AJ
6.14 Mounting/disassembly of motor starters

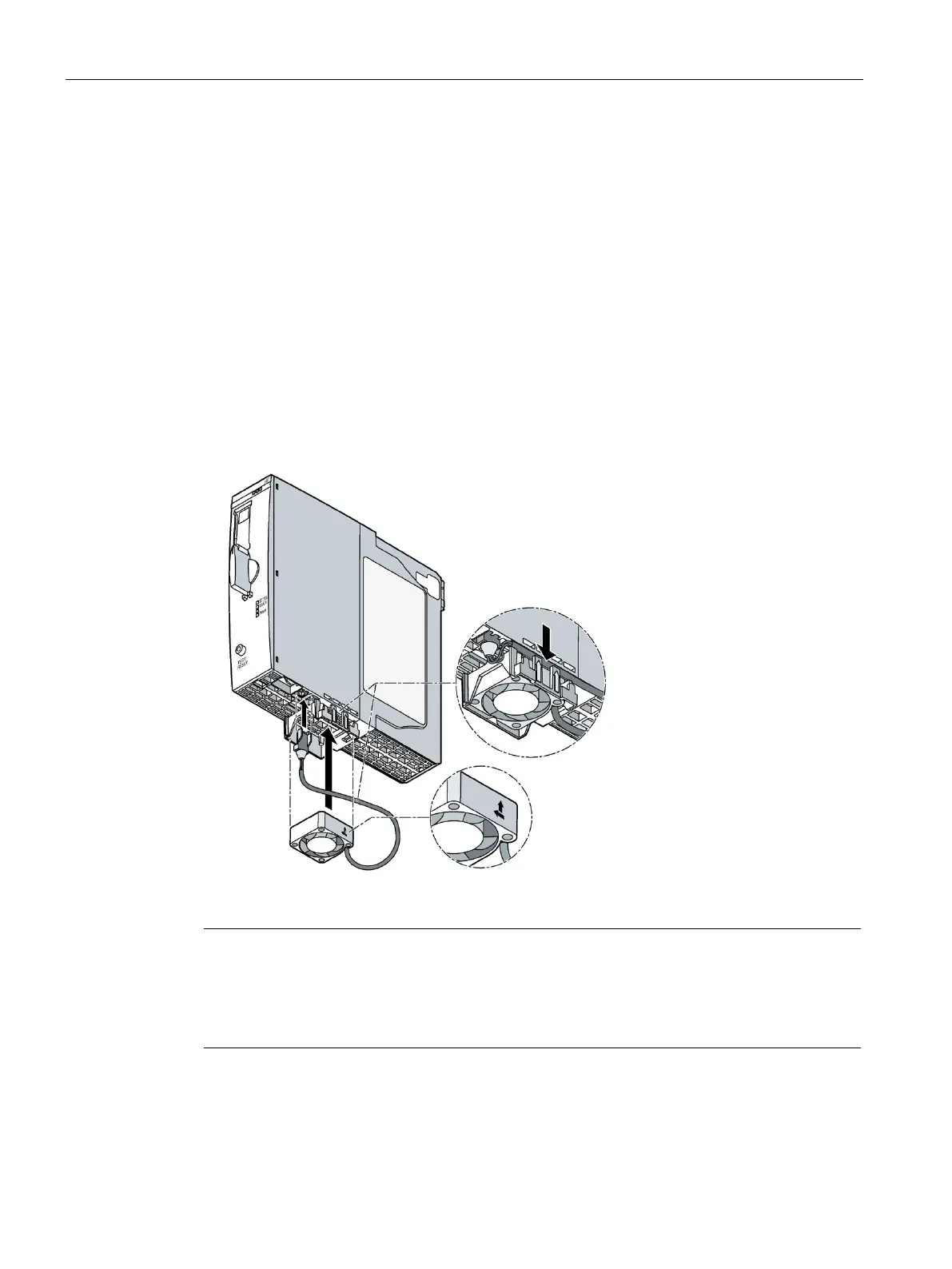

6.14.1 Mounting the fan
Procedure
Proceed as follows to mount a fan on a SIMATIC ET 200SP motor starter:
1. Slide the fan onto the motor starter until you can hear the fan engage.
Observe the blowing direction of the fan when mounting. The air stream must be directed
to the inside of the motor starter. The correct blowing direction is indicated by arrows on
the bottom of the fan.
2. Insert the connection plug into the opening above the fan.
3. Secure the fan cable to the fixing eyes on the right-hand side of the fan cover.
Note
Specified ambient temperatures are not reached if the fan is incorrectly installed
If you do not observe the blowing direction of the fan when mounting, the sp
ecified ambient
temperatures will not be reached. The device shuts down prematurely due to excessively
high temperature.
