Wiring
6.8 Connecting cable shields for I/O modules
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
103
Removing wires
Using the screwdriver, press the spring release of the terminal as far as it will go and pull out
the wire.
Note
When you press the spring release, you should not pull on the wire/cable at the same time.
This prevents you from damaging the terminal.
6.8 Connecting cable shields for I/O modules
Introduction
● You need the shield connector to contact cable shields (e.g. for analog modules). The
shield connector conducts interference currents on cable shields to ground via the
mounting rail. It is not necessary to contact the shield at where the cable enters the
cabinet.
● Attach the shield connector to the BaseUnit.
● The shield connector consists of a shield contact and a shield terminal.
● The shield connector is automatically connected to the functional ground (FG) of the
mounting rail after installation.
Requirements
● BaseUnit with a width of 15 mm
● The shield terminal is suitable for cables with max. ∅ 7 mm each.

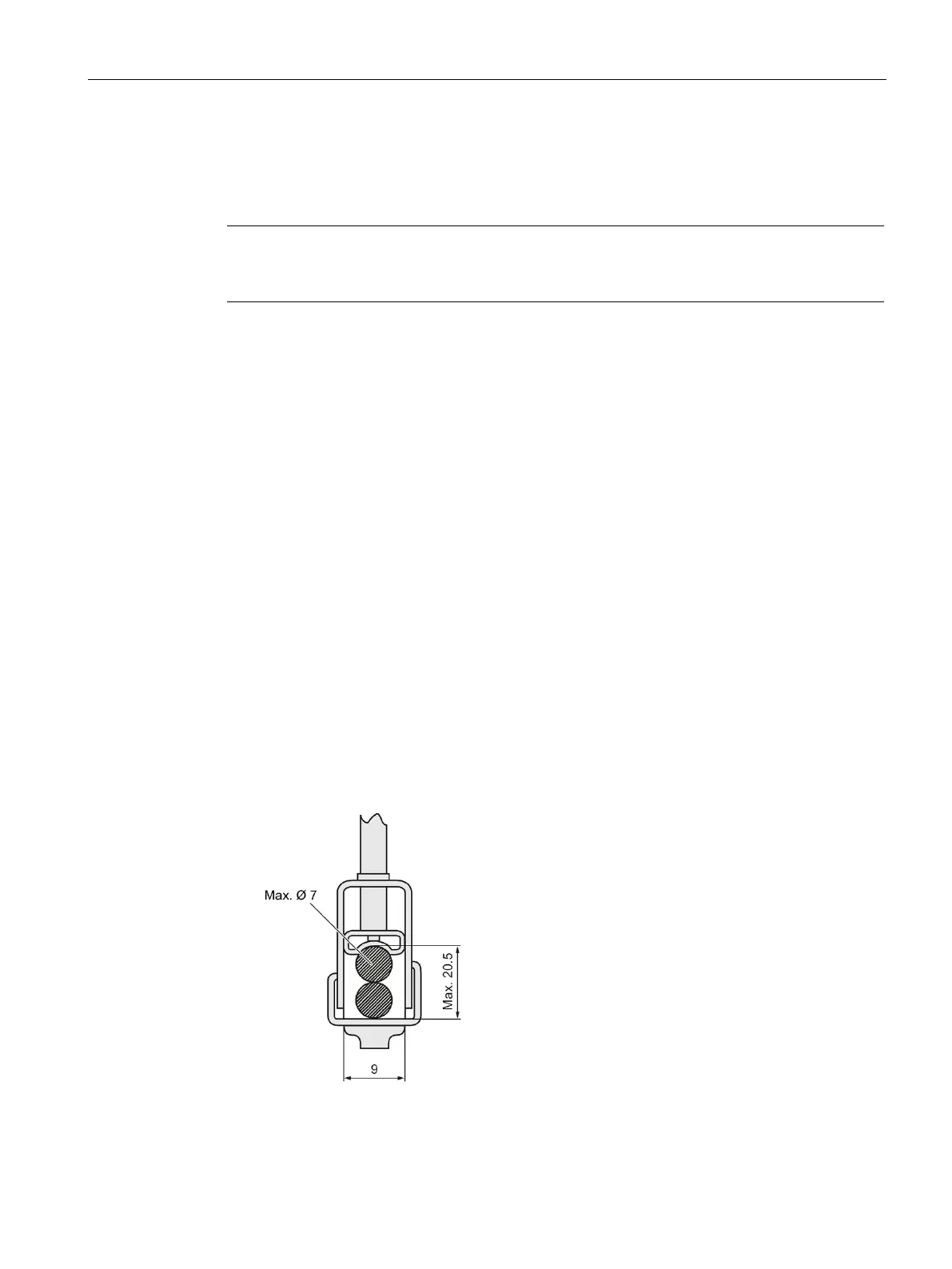

Figure 6-6 Shield terminal

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
