Wiring
6.15 Labeling ET 200SP
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
127
Labeling strips
The labeling strips can be inserted in the CPU/interface module, I/O module and BU cover
and allow identification of the ET 200SP distributed I/O system. The labeling strips can be
ordered on a roll for thermal transfer printers or as DIN A4 format sheets for laser printers.
Reference identification labels
Labeling strips
Color identification labels

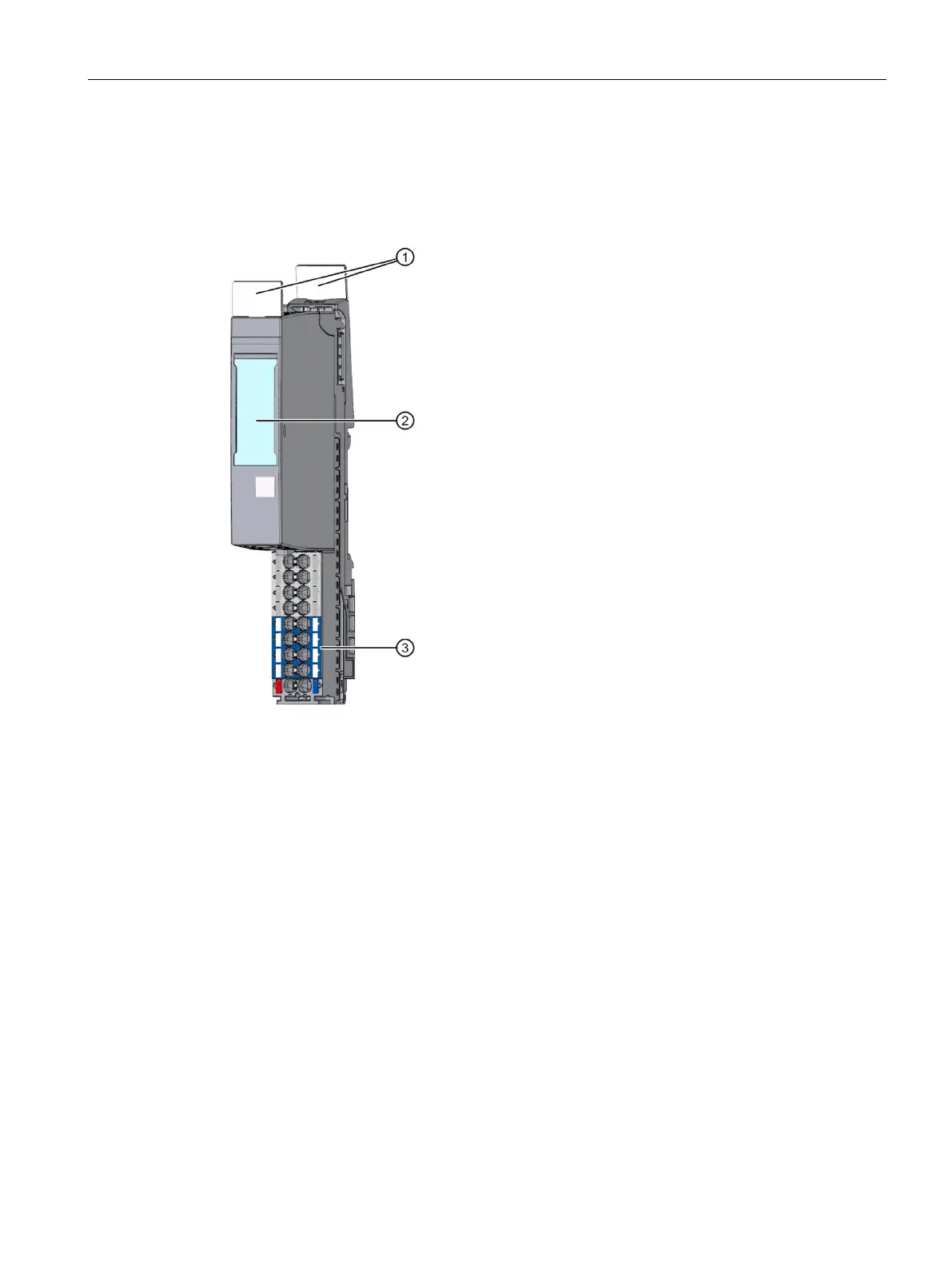

Figure 6-16 Optional markings
6.15.3 Applying color identification labels
Requirements
The BaseUnits must not be wired when you apply the color identification labels.
Required tools
3 mm screwdriver (only for removing the color identification labels)
