Siemens SIMATIC ET 200SP - Dimension Drawings; Shield Connector; Labeling Strip

Distributed I/O system
289 System Manual, 09/2019, A5E03576849-AJ
Dimension drawings
A
A.1 Shield connector

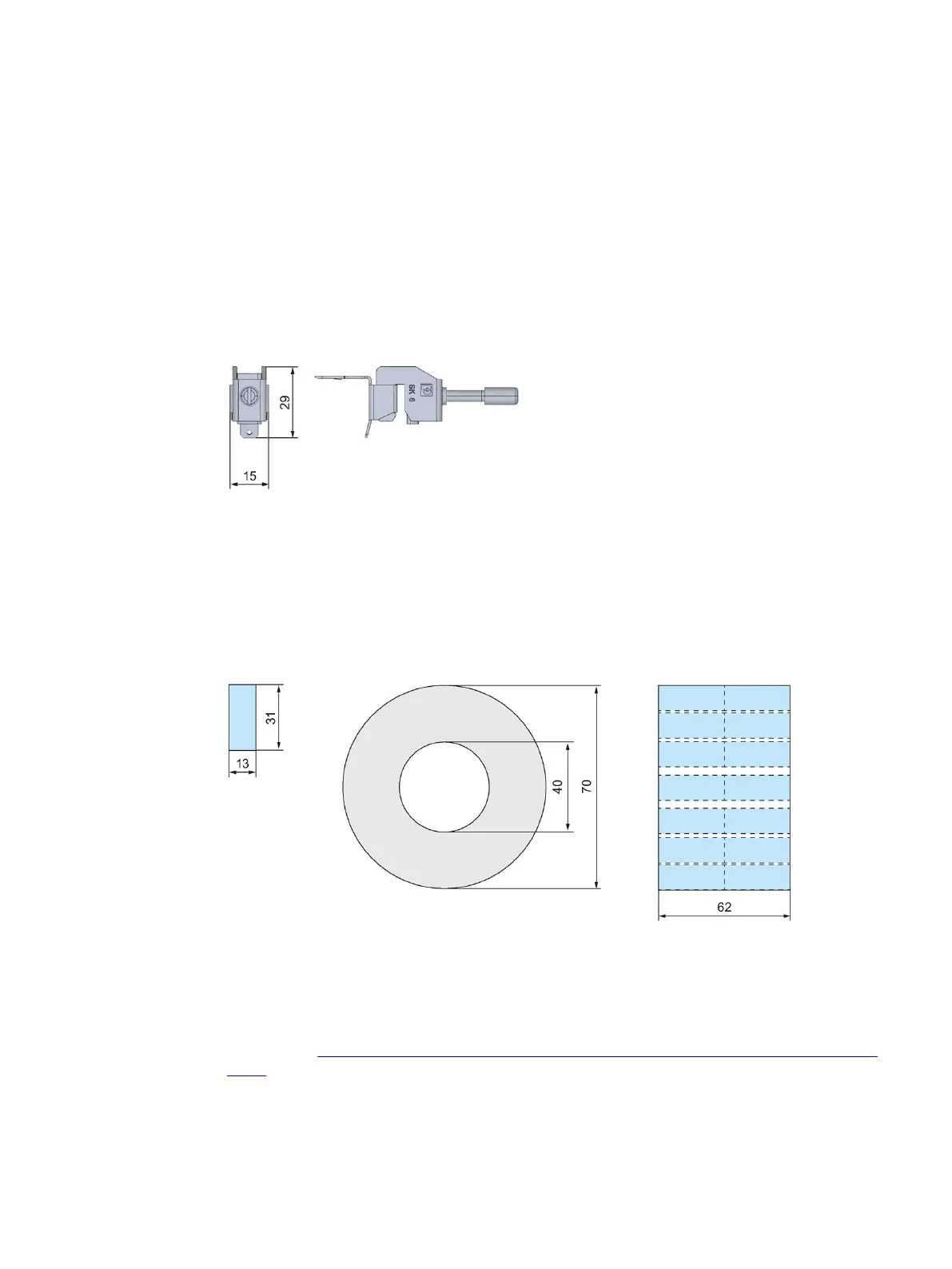

Dimensional diagram of the shield connector
Figure A-1 Dimensional diagram of the shield connector
A.2 Labeling strip
Dimension drawing of the labeling strips (roll)
Figure A-2 Dimension drawing of the labeling strips (roll)
Dimension drawing of the labeling strips (DIN A4 sheet)
The product information for the labeling strips (DIN A4 sheets) is available for download on
the Internet (
https://mall.industry.siemens.com/mall/en/de/Catalog/Product/6ES7193-6LA10-
0AA0).
