5.4 Installing the CM DP communication module
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
71
5.4 Installing the CM DP communication module
Introduction
You need the CM DP communication module to use the CPU with a DP master or DP slave.
Requirements
● The mounting rail is fitted.
● The CPU is installed.
Installing CM DP
To install the CM DP communication module, follow these steps:
1. Install the CM DP to the right of the CPU.
2. Swivel the CM DP towards the back until you hear the mounting rail release button click
into place.
3. Slide the CM DP to the left until you hear it click into the CPU.

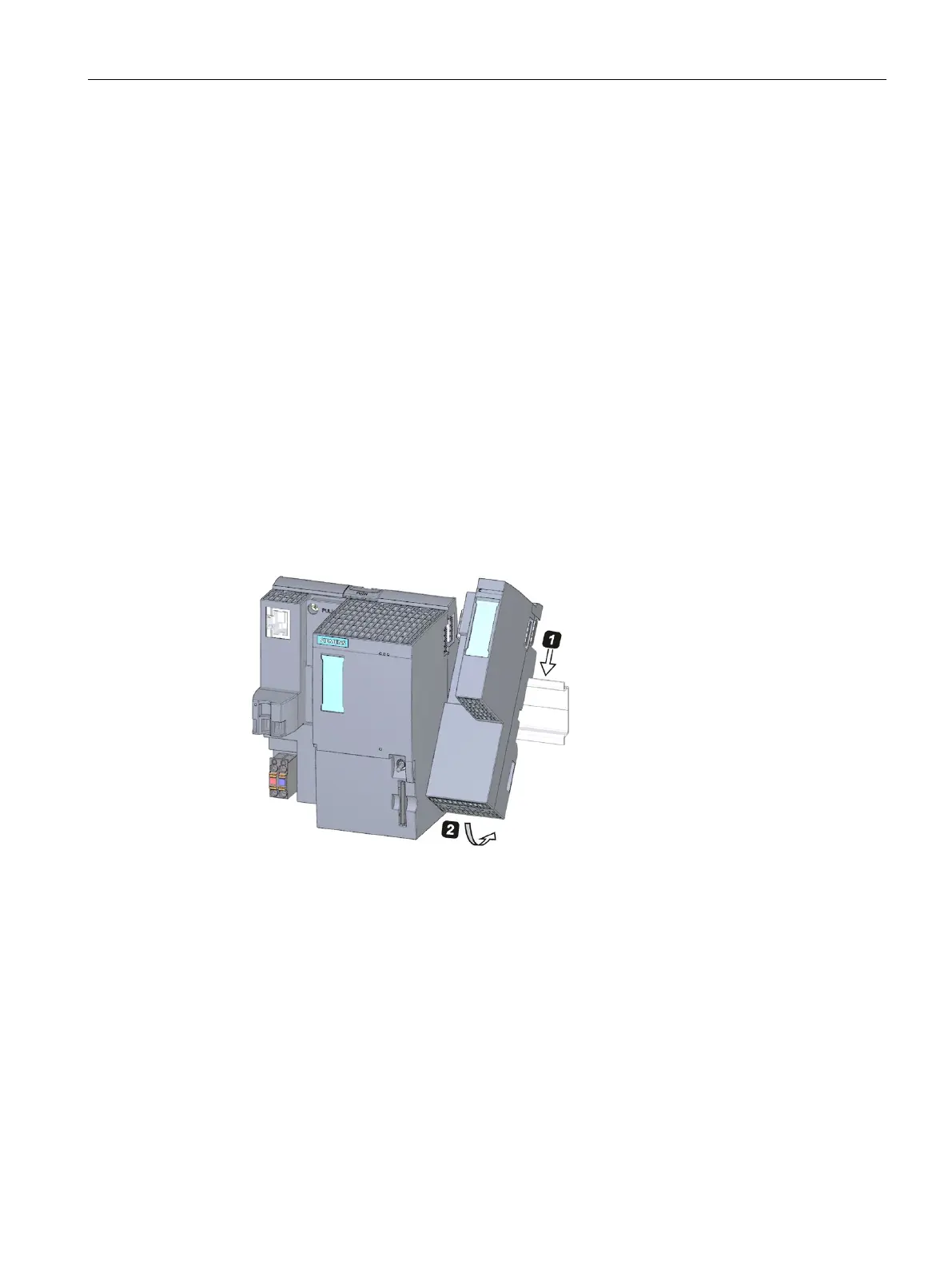

Figure 5-3 Installing CM DP

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
