Siemens SIMATIC ET 200SP System Manual

Installation
5.8 Installing the server module
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
79
5.8 Installing the server module
Introduction
The server module on the far right of the assembly/line completes the ET 200SP distributed
I/O system.
Requirement
The last BaseUnit is mounted.
Installing the server module
Watch "Install configuration" video sequence
(http://support.automation.siemens.com/WW/view/en/95886218
)
Proceed as follows to install a server module:
1. Hook the server module onto the mounting rail to the right of the last BaseUnit.
2. Swivel the server module backwards on the mounting rail.
3. Move the server module parallel to the left until you hear it latch onto the last BaseUnit
that precedes it.

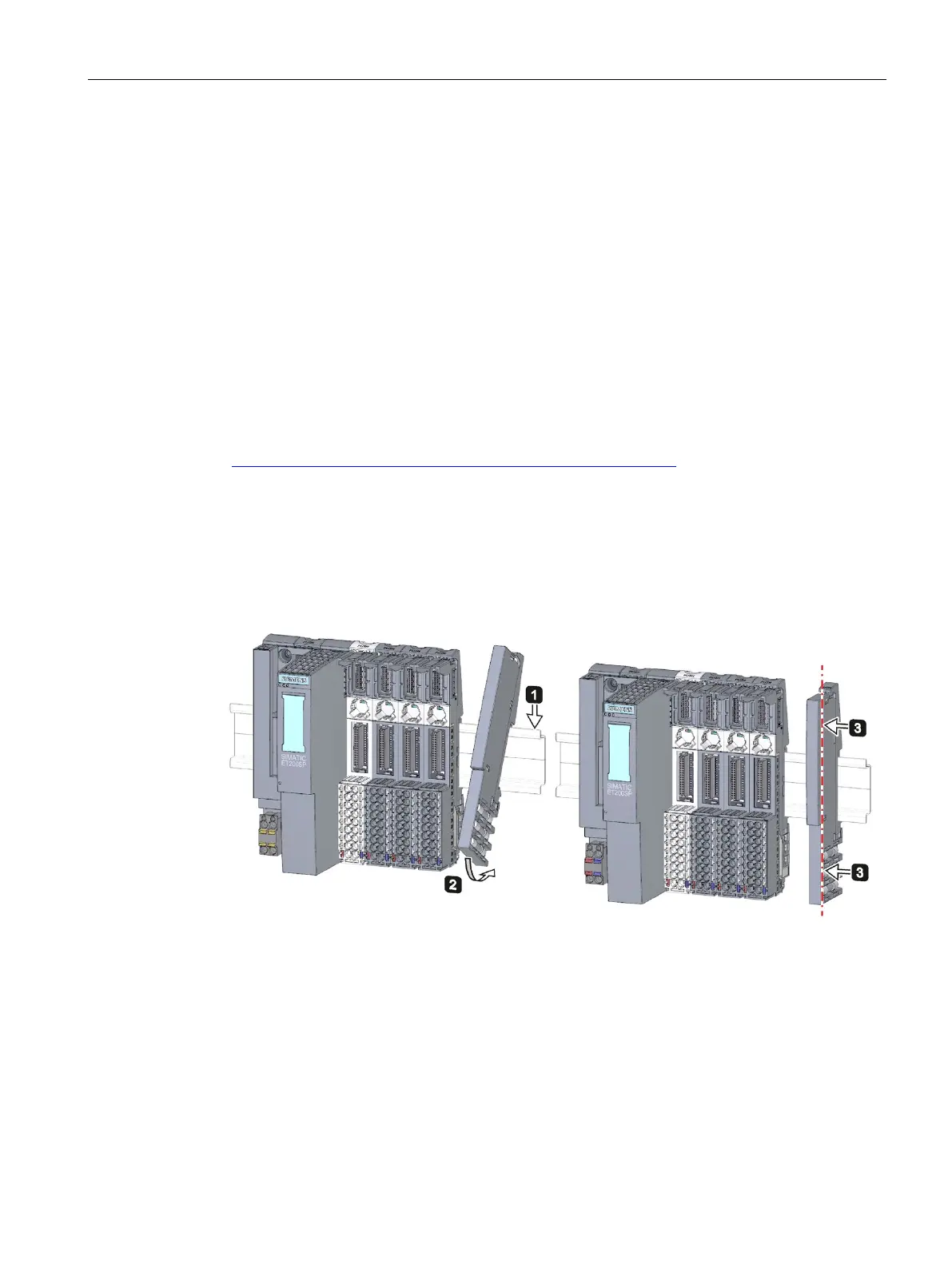

Figure 5-6 Installing the server module
Removing the server module
Proceed as follows to remove a server module:
1. Press the mounting rail release button on the server module.
2. Move the server module parallel to the right.
3. While pressing the mounting rail release button, swivel the server module off the
mounting rail.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
