Siemens SIMATIC ET 200SP System Manual

Commissioning
11.2 Commissioning the ET 200SP for PROFINET IO
Distributed I/O system
198 System Manual, 09/2019, A5E03576849-AJ
11.2.3 ET 200SP as an IO device
Configuration example
To use the ET 200SP distributed I/O system as an IO device, you need the IM 155-6 PNxx
interface module.

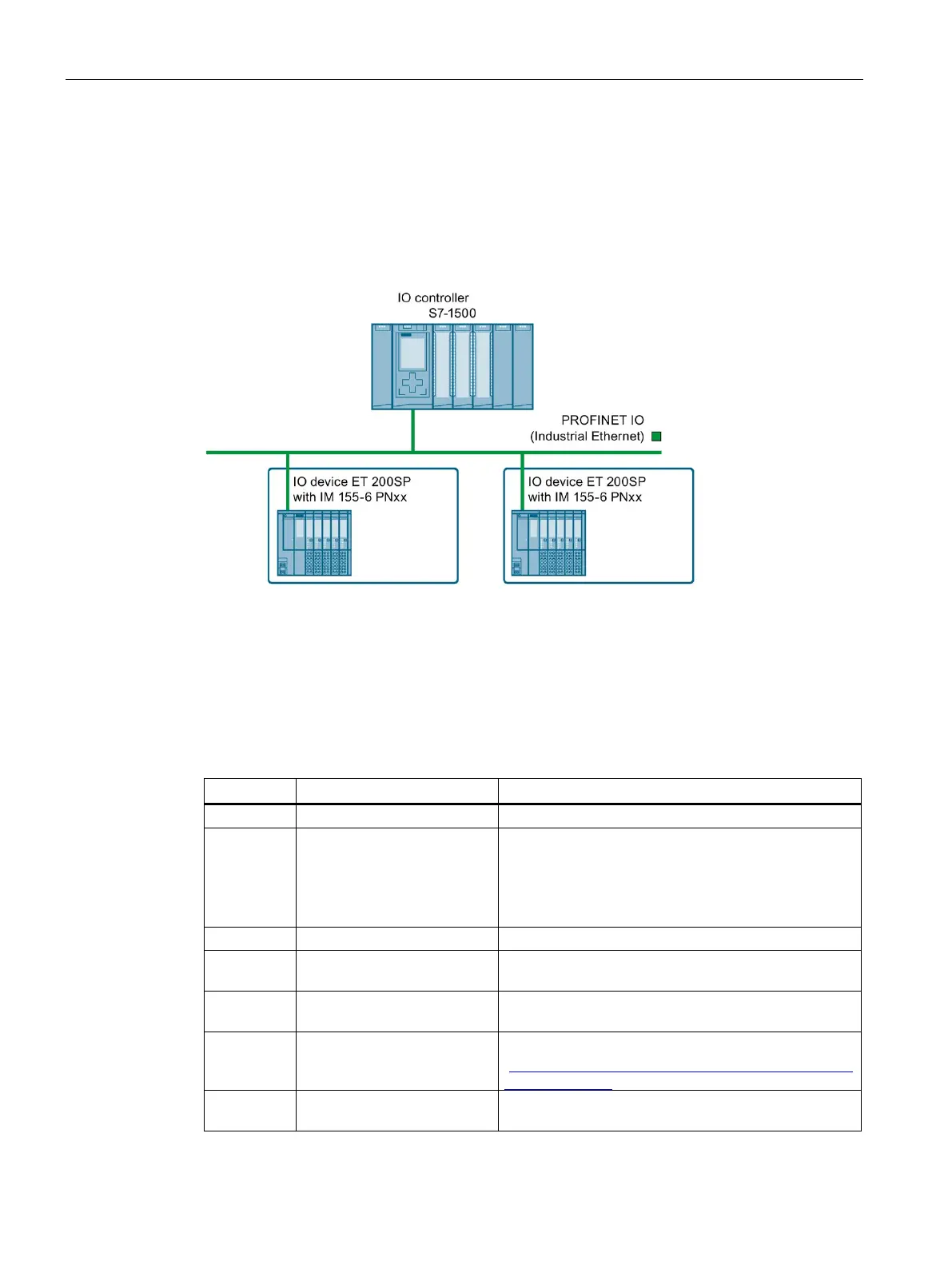

Figure 11-3 ET 200SP as an IO device
Commissioning procedure
For commissioning of the ET 200SP distributed I/O system as an IO device on the
PROFINET IO, we recommend the following procedure:
Table 11- 3 Procedure for commissioning the ET 200SP as an IO device for PROFINET IO
Step
Procedure
See ...
1
Installing ET 200SP
Section Installation (Page 63)
2 Connecting ET 200SP
• Supply voltages
• PROFINET IO
• Sensors and actuators
Section Wiring (Page 86)
4
Configuring IO controller
Documentation of the IO controller
5 Checking the protective
measures
-
6 Switching on supply voltages
for the IO controller
Documentation of the IO controller
7 Switching on supply voltages
for IO devices
Interface module
(http://support.automation.siemens.com/WW/view/en/5
5683316/133300) Manual
8 Downloading the configura-
tion to the IO controller
STEP 7 online help

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
