Siemens SIMATIC ET 200SP System Manual

Configuration control (option handling)
10.2 Creating the control data record
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
171
10.2 Creating the control data record
10.2.1 Introduction
Required steps
To create a control data record for the configuration control, follow these steps:
1. Create a PLC data type that contains the structure of the control data record.

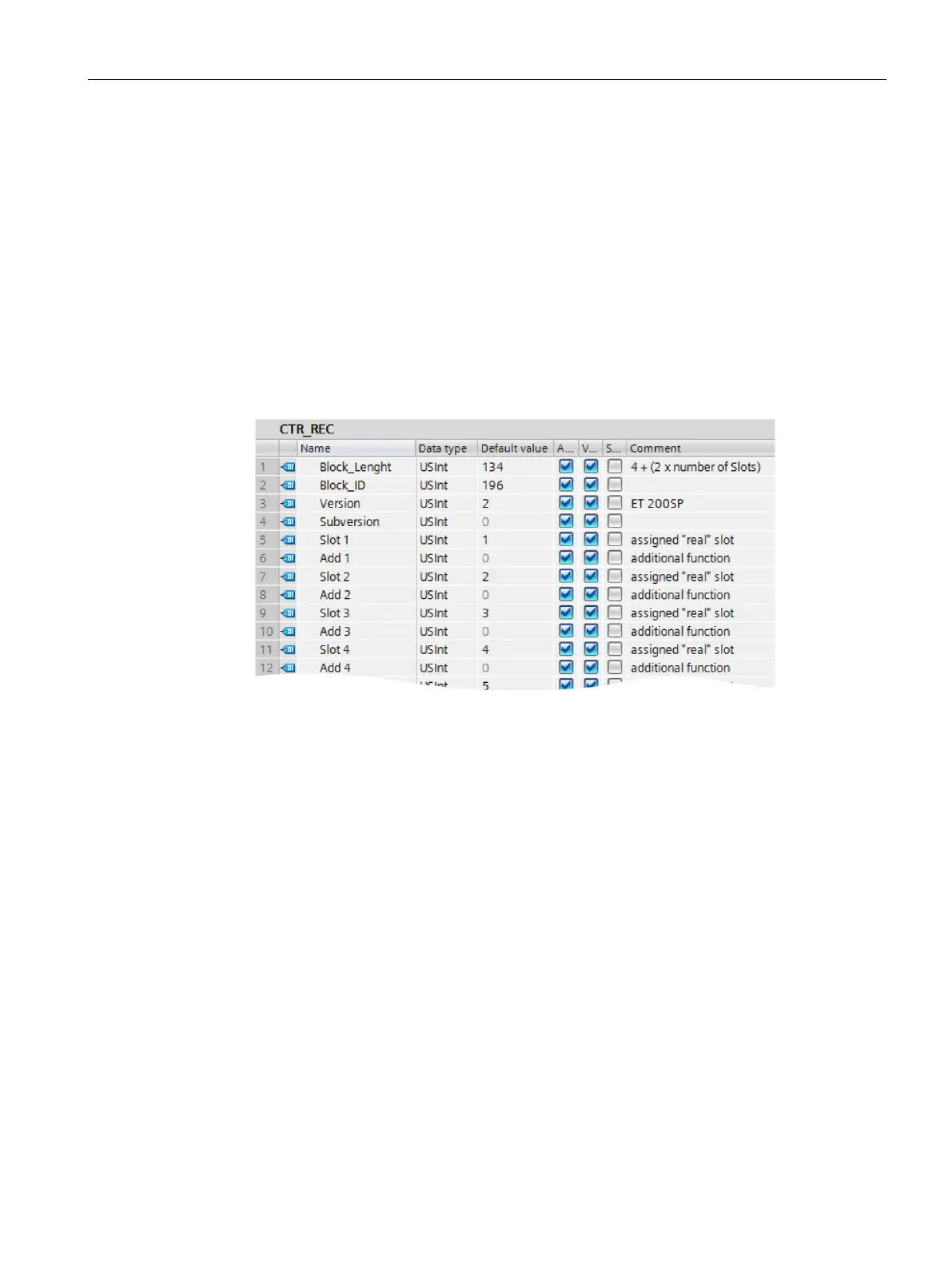

The following figure shows a PLC data type "CTR_REC", which contains the structure of
the control data record for an ET 200SP interface module.
Figure 10-3 Creating control data record 196 using an IM 155-6 PN HF as an example
2. Create a global data block.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
