Siemens SIMATIC ET 200SP System Manual

Commissioning
11.3 Commissioning the ET 200SP on PROFIBUS DP
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
201
11.3.2 ET 200SP as I-slave
Configuration example
To use the ET 200SP distributed I/O system as I-slave, you need the CPU 151xSP-1 PN and
the CM DP communication module.

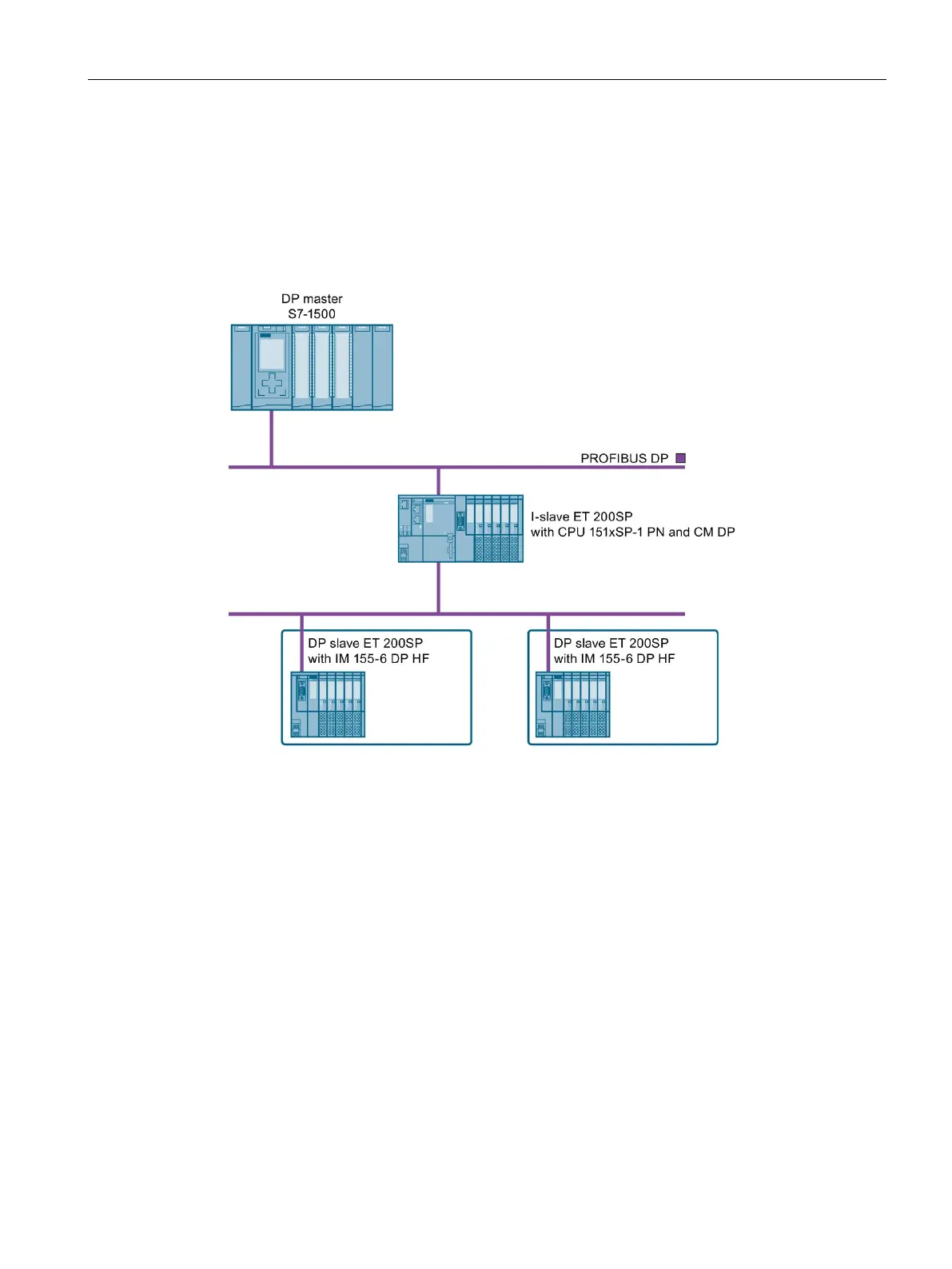

Figure 11-5 ET 200SP as I-slave

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
