System overview
3.3 How are SIMATIC Safety F-systems structured with ET 200SP?
Distributed I/O system
20 System Manual, 09/2019, A5E03576849-AJ
3.3 How are SIMATIC Safety F-systems structured with ET 200SP?
SIMATIC Safety F-system with ET 200SP
The figure below shows an example of a configuration for a SIMATIC Safety F-system with
ET 200SP distributed I/O system and PROFINET IO. The PROFINET IO lines can be set up
with copper cable, fiber-optic cable or WLAN.
Fail-safe I/O modules and non-fail-safe I/O modules can be combined in an ET 200SP
configuration.
The fail-safe IO controller (F-CPU) exchanges safety-related and non-safety-related data
with fail-safe and non-fail-safe ET 200SP modules.

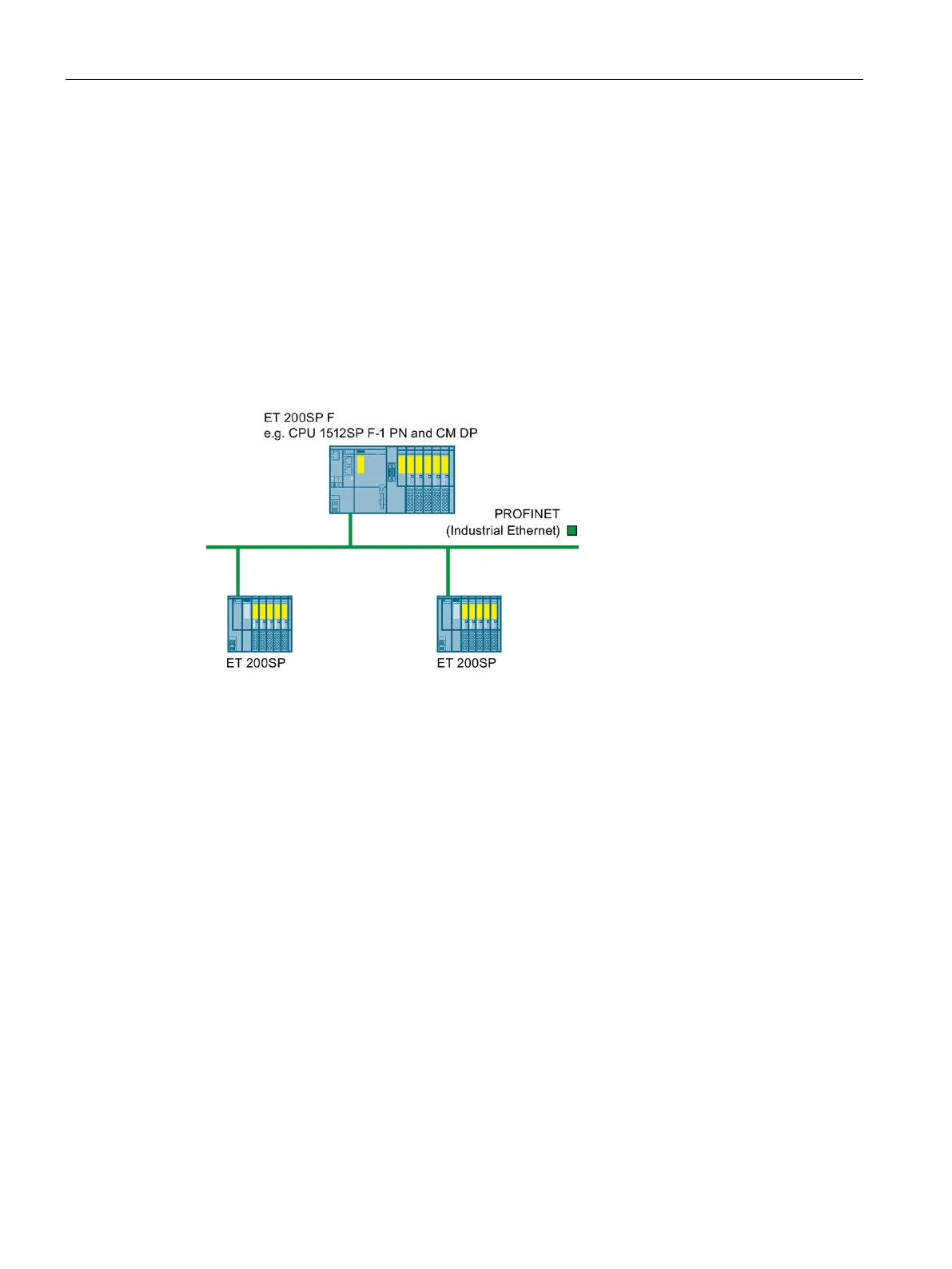

Figure 3-3 Fail-safe SIMATIC Safety automation system (sample configuration)
Fail-safe ET 200SP I/O modules
The following fail-safe I/O modules are available for the ET 200SP distributed I/O system:
● Fail-safe power modules are used to supply the potential group load voltage and for the
safety-related tripping of the load voltage for non-fail-safe output modules.
● Fail-safe digital input modules detect the signal states of safety-related sensors and send
the relevant safety frames to the F-CPU.
● Fail-safe digital output modules are suitable for safety-related shutdown procedures with
short circuit and cross-circuit protection up to the actuator.
ET 200SP fail-safe motor starters
Fail-safe motor starters are suitable for safety-related tripping of motor loads.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
