Siemens SIMATIC ET 200SP System Manual

Wiring
6.14 Mounting/disassembly of motor starters
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
119
6.14.2 Mounting/disassembly of motor starters
Procedure
CAUTION
Protection against electrostatic charge
When handling and installing the SIMATIC ET 200SP motor starter, ensure protection
against electrostatic charging of the components. Changes to the system configuration and
wiring are only permissible after disconnection from the power supply.

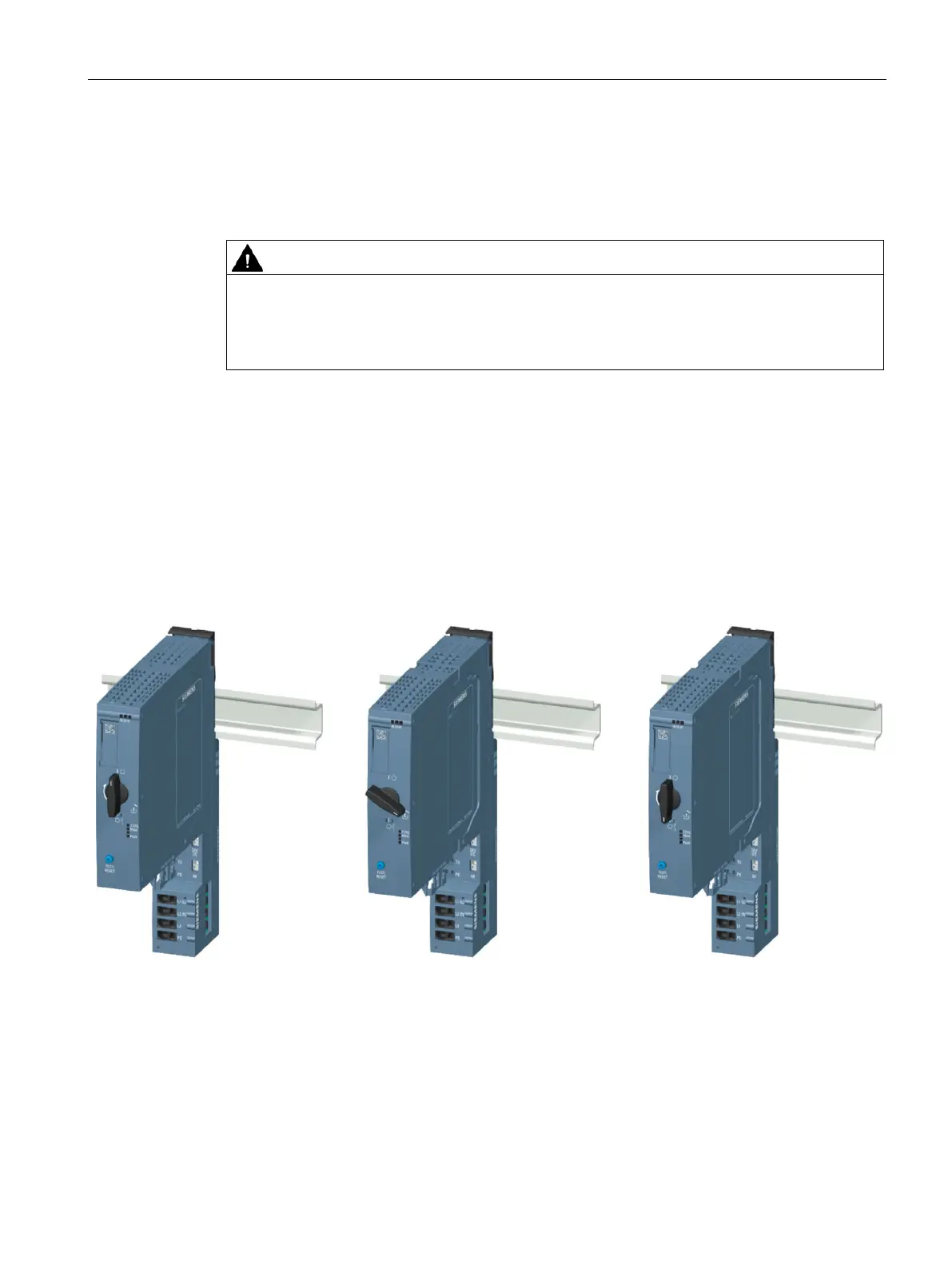

To assemble a SIMATIC ET 200SP motor starter, proceed as follows:
● Position the mechanical interlock of the SIMATIC ET 200SP motor starter in the
assembly/disassembly position
②
● Place the SIMATIC ET 200SP motor starter onto the BaseUnit.
● Turn the mechanical interlock clockwise to the parking position
③
● Turn the mechanical interlock counterclockwise to the operating position (= end
position)
①
① ② ③

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
