Configuration control (option handling)
10.1 Configuring
Distributed I/O system
170 System Manual, 09/2019, A5E03576849-AJ
Required steps
Enable the "Allow to reconfigure the device via the user program" parameter when
configuring the CPU/interface module in STEP 7 (TIA Portal).
● The "Allow to reconfigure the device via the user program" parameter is located in the
"Configuration control" area for an ET 200SP CPU.
● The "Allow to reconfigure the device via the user program" parameter is located in the
"Module parameter" area under "General" for an IM 155-6 PN interface module.

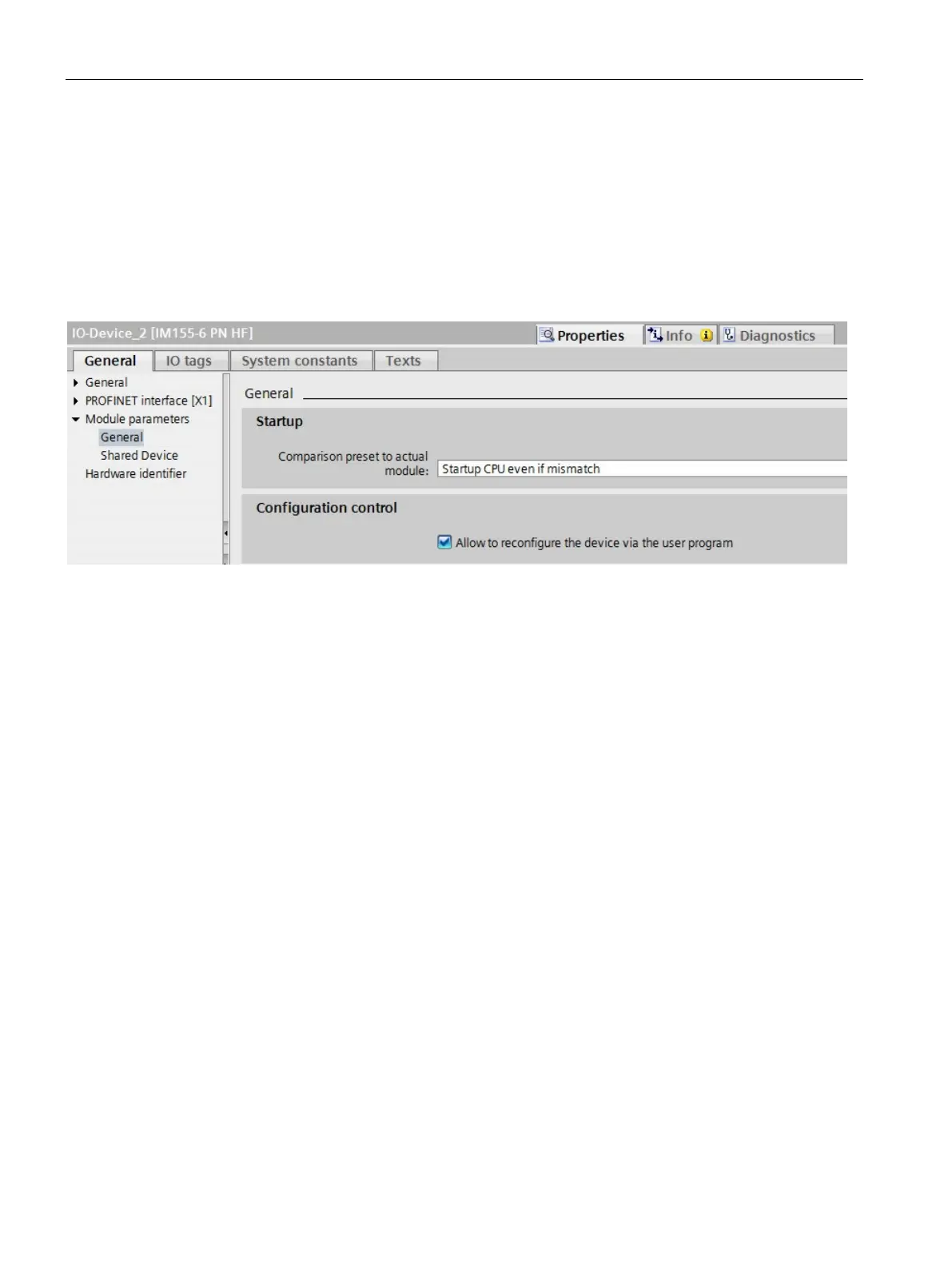

Figure 10-2 Enabling configuration control using an IM 155-6 PN HF as an example
