Siemens SIMATIC ET 200SP System Manual

Wiring
6.15 Labeling ET 200SP
Distributed I/O system
128 System Manual, 09/2019, A5E03576849-AJ
Applying color identification labels
Press color identification labels into the terminal box of the BaseUnit.
Note
To remove the color identification labels, you must first disconnect the wiring on the
BaseUnit and then carefully lever the color identification labels out of the holder using a
screw
driver.
①
Module-specific color identification labels (15 mm) for the process terminals. You can find addi-
tional information in the I/O Module
(http://support.automation.siemens.com/WW/view/en/55679691/133300) manual.
②
Color identification labels (15 mm) for the 10 AUX terminals
③
Color identification label (15 mm) for the 10 add-on terminals
④
Color identification labels (20 mm) for the 4 AUX terminals
⑤
Color identification labels (20 mm) for the 2 AUX terminals

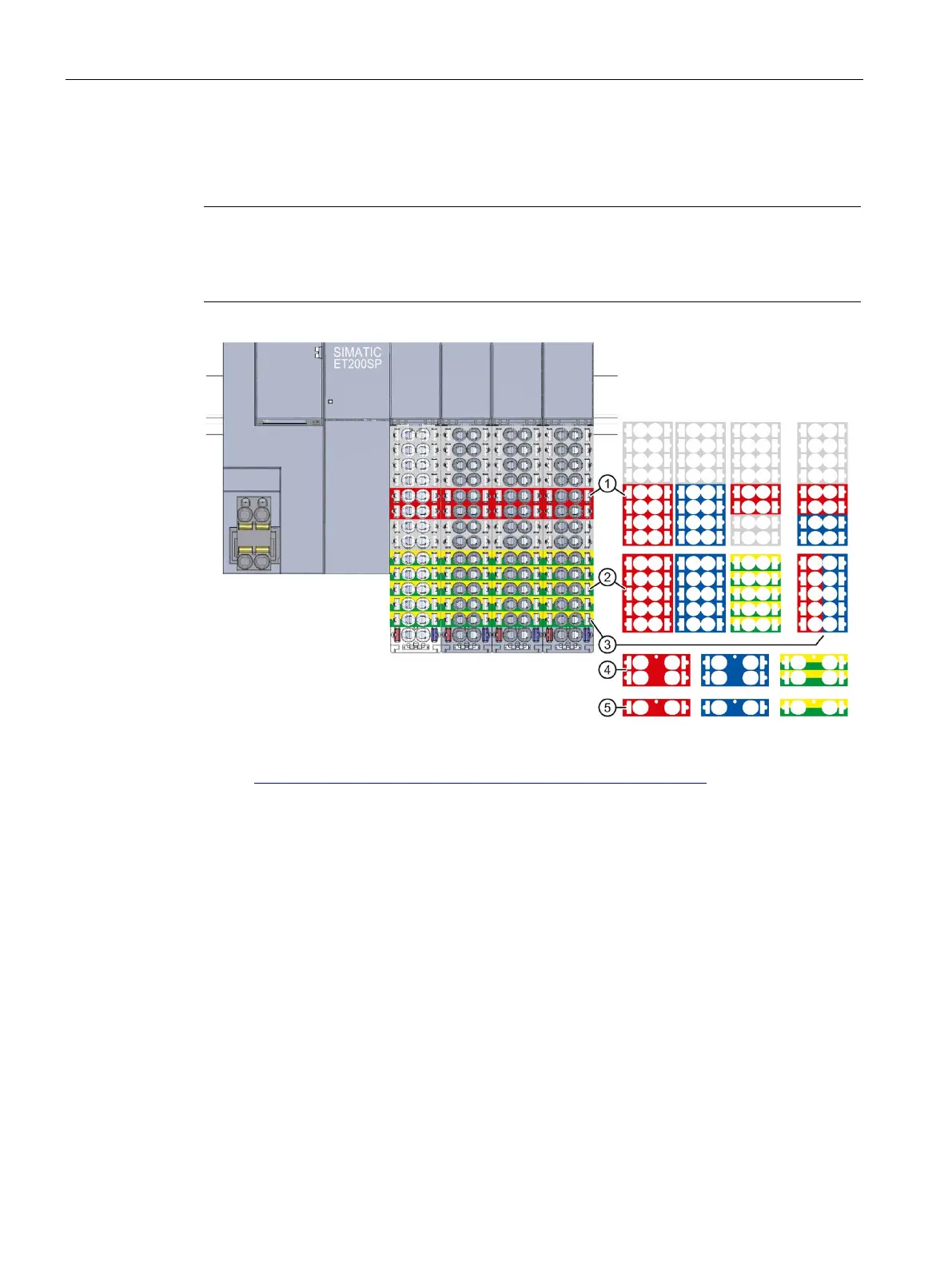

Figure 6-17 Applying color identification labels (example)

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
