Siemens SIMATIC ET 200SP System Manual

Wiring
6.12 Connecting interfaces for communication
Distributed I/O system
114 System Manual, 09/2019, A5E03576849-AJ
Procedure
Insert the RJ45 bus connector into the PROFINET port (port P3) on the CPU.
Note
Cable support and strain relief
If you are using a FastConnect RJ45 bus connector with 90° cable outlet (6GK1901
-1BB20-
2AA0), we recommend you provide strain relief for the PROFINET connecting cable. For this
you need a cab
le tie with a standard width of 2.5 mm or 3.6 mm.
Use it to fasten the PROFINET connecting cable directly after it exits the bus connector to
the provided cable support on the CPU (
on the front directly below the PROFINET interface
X1P3).

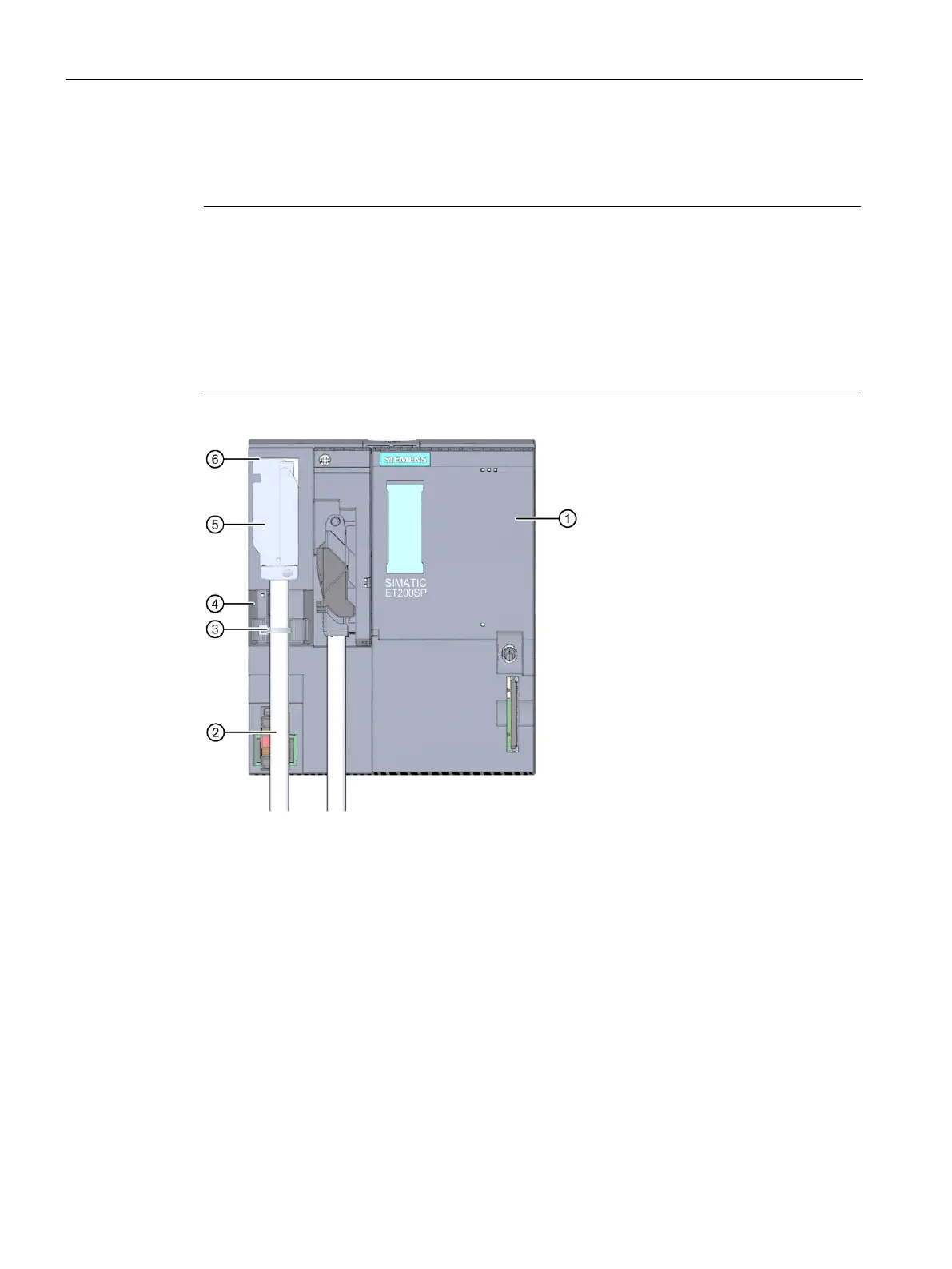

①
CPU
②
PROFINET connecting cable
③
Strain relief (cable tie)
④
Cable support
⑤
FastConnect RJ45 bus connector with 90° cable outlet
⑥
PROFINET connector (port P3)
Figure 6-12 Connecting PROFINET IO (port P3) to the CPU

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
