Siemens SIMATIC ET 200SP System Manual

Wiring
6.14 Mounting/disassembly of motor starters
Distributed I/O system
122 System Manual, 09/2019, A5E03576849-AJ
Assembly
WARNING
Risk of injury from automatic restart
When you mount the the 3DI/LC module, the motor starter can switch on autonomously if
an ON command (DI1 to DI3) is active. This can result in property damage or serious injury
caused by connected devices that are automatically started up.
Revoke the ON commands at DI1 to DI3 before mounting the 3DI/LC module.

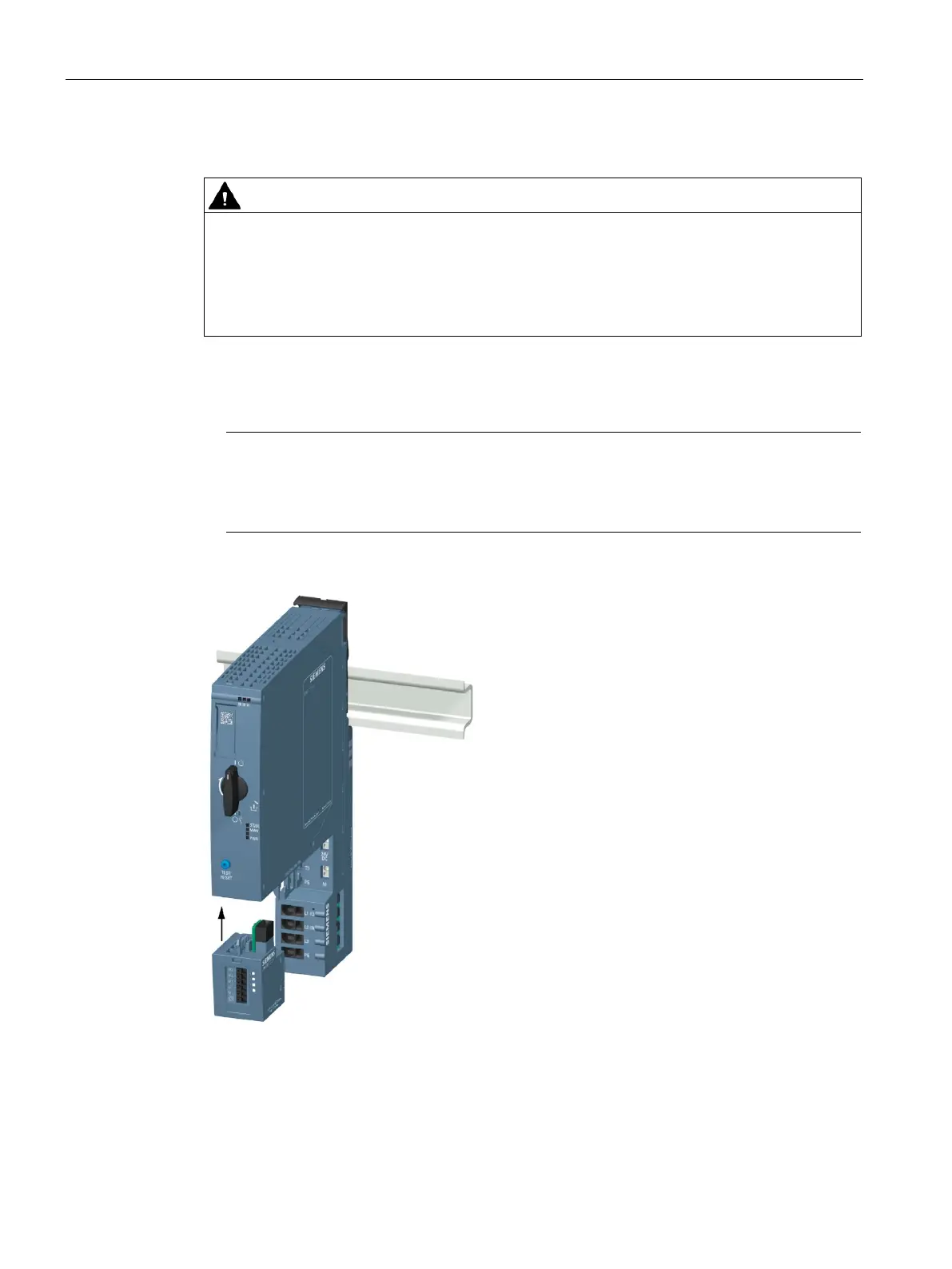

Proceed as follows to mount a 3DI/LC module onto a motor starter:
1. Wire the 3DI/LC module according to the connection diagram.
Note
Connecting the 3DI/LC module
You will find out how to connect the 3DI/LC module in chapter "
Connecting the 3DI/LC
module
for the motor starter (Page 109)".
2. Slide the 3DI/LC module into the motor starter until the 3DI/LC module engages.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
