Configuration control (option handling)
10.5 Examples of configuration control
Distributed I/O system
188 System Manual, 09/2019, A5E03576849-AJ
Station option 1 with module that is not present
The module that is located in slot 3 in the station master is not present in the station option 1.
Slot 3 must be designated in the control data record accordingly with 0 (= not present). The
server module is located in slot 3 in the station option.

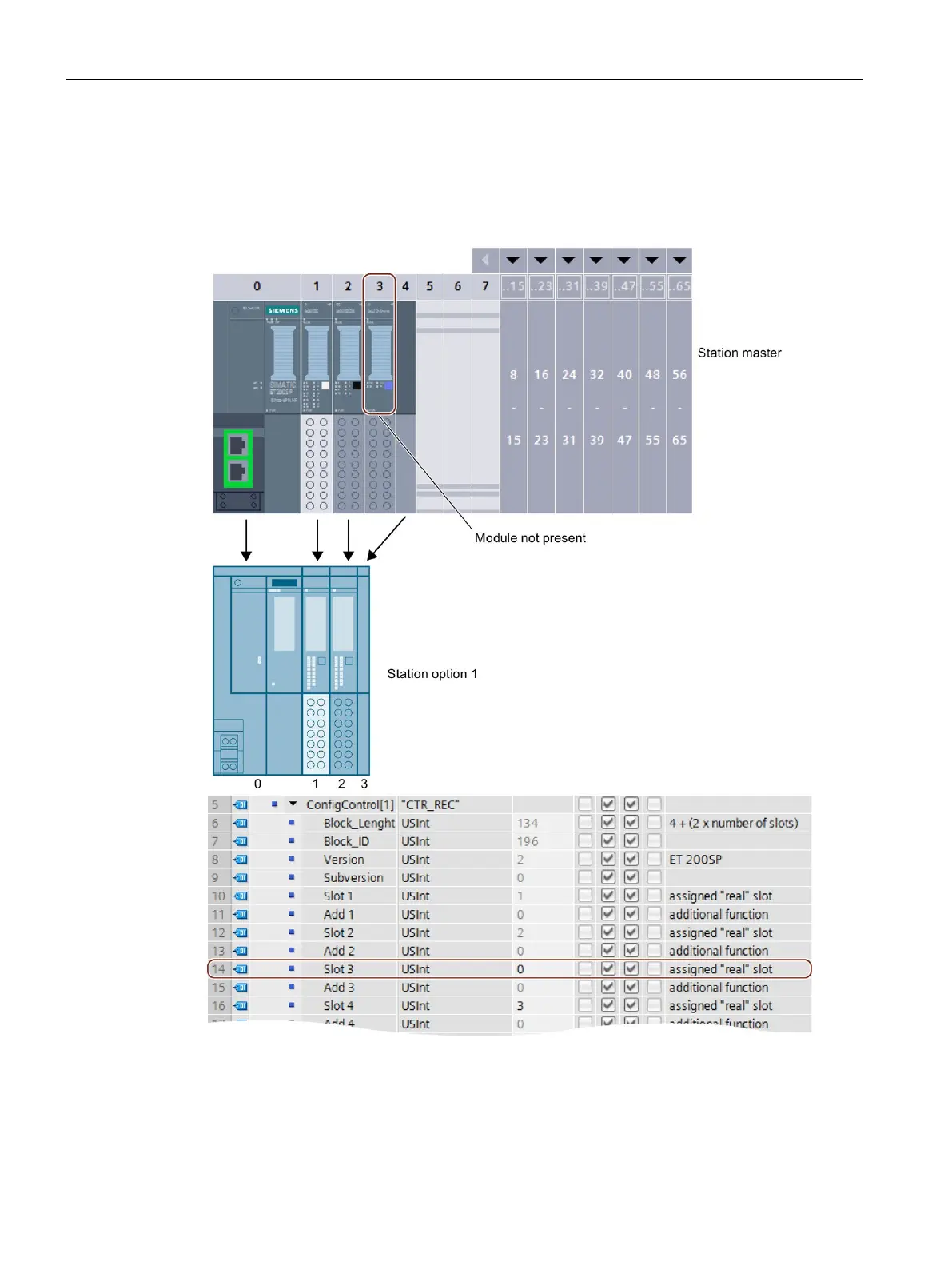

Figure 10-6 Example: Hardware configuration of station option 1 with the associated control data
record in STEP 7
