Configuration control (option handling)
10.5 Examples of configuration control
Distributed I/O system
190 System Manual, 09/2019, A5E03576849-AJ
Station option 3 with empty slot
The module that is located in slot 3 in the station master occupies an empty slot with
BU cover in the station option. Enter the value 130 in slot 3 in the control data record.

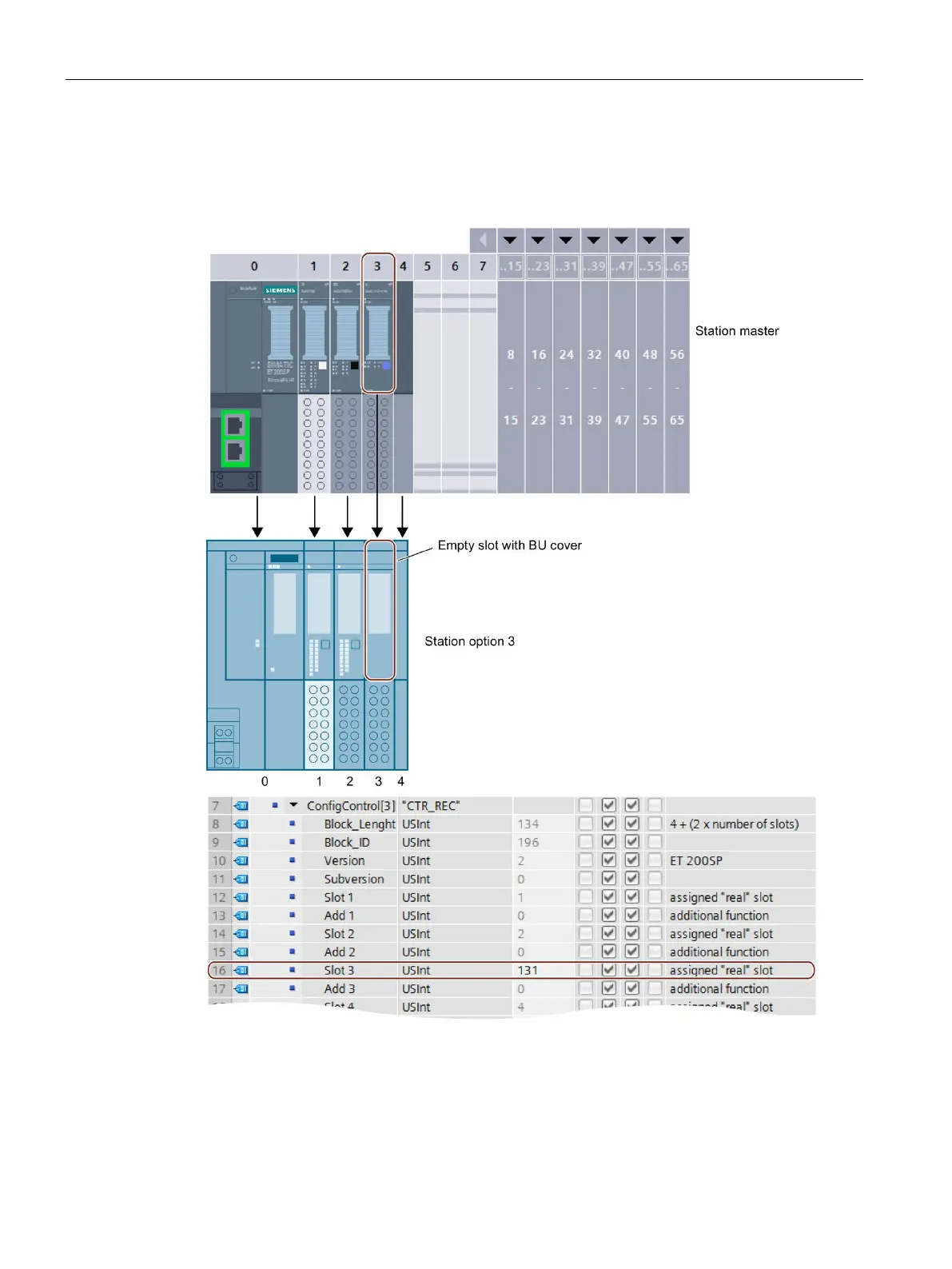

Figure 10-8 Example: Hardware configuration of station option 3 with the associated control data
record in STEP 7
